12-26 Chapter 12

Theory of Operation

Signal Separation (8753ES)

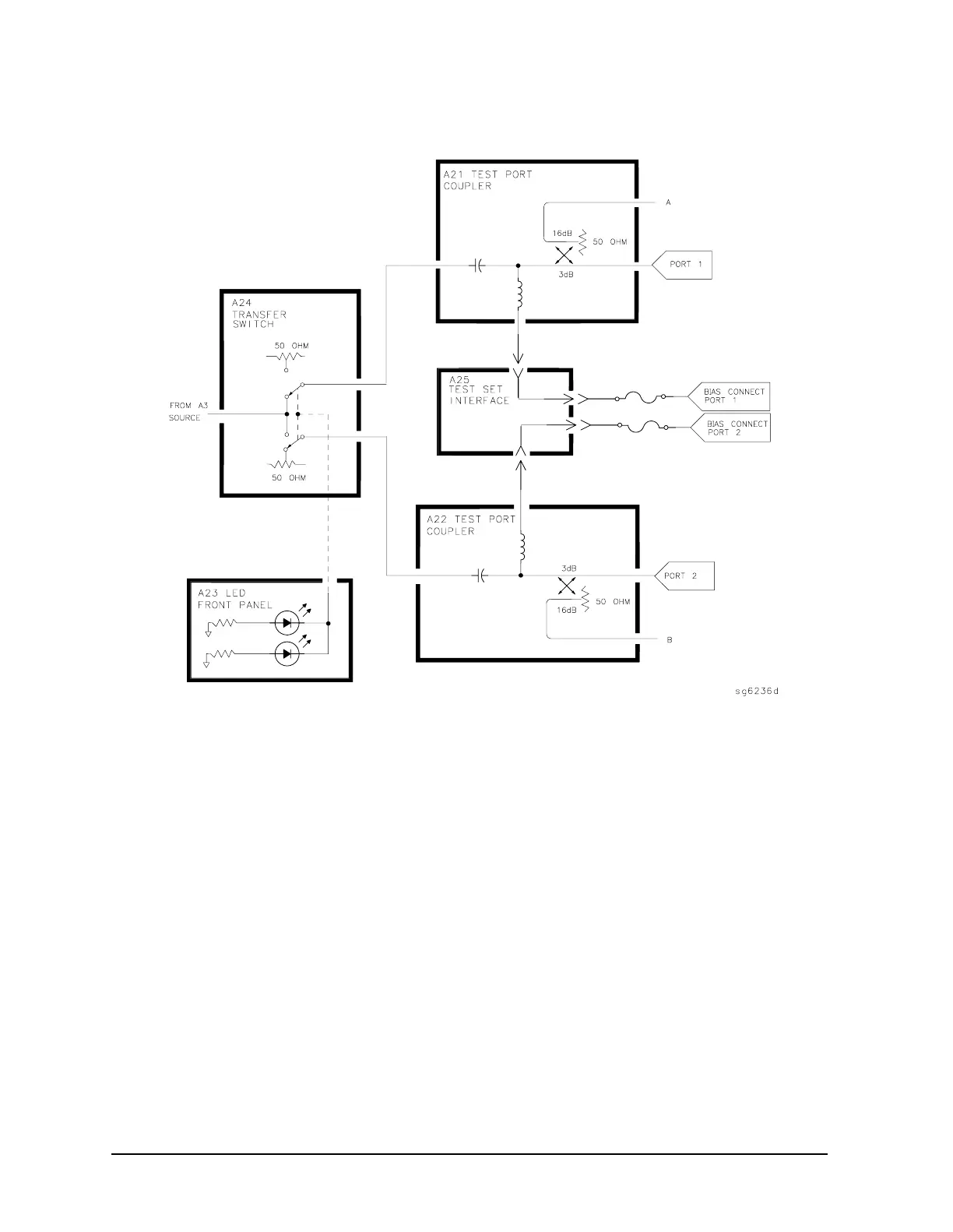

Figure 12-11 Simplified Block Diagram of the 8753ES Built-In Test Set
