Agilent Technologies 8720ES Service Guide

Chapter 2 2-51
System Verification and Performance Tests
Agilent 8753ES System Verification and Performance Tests

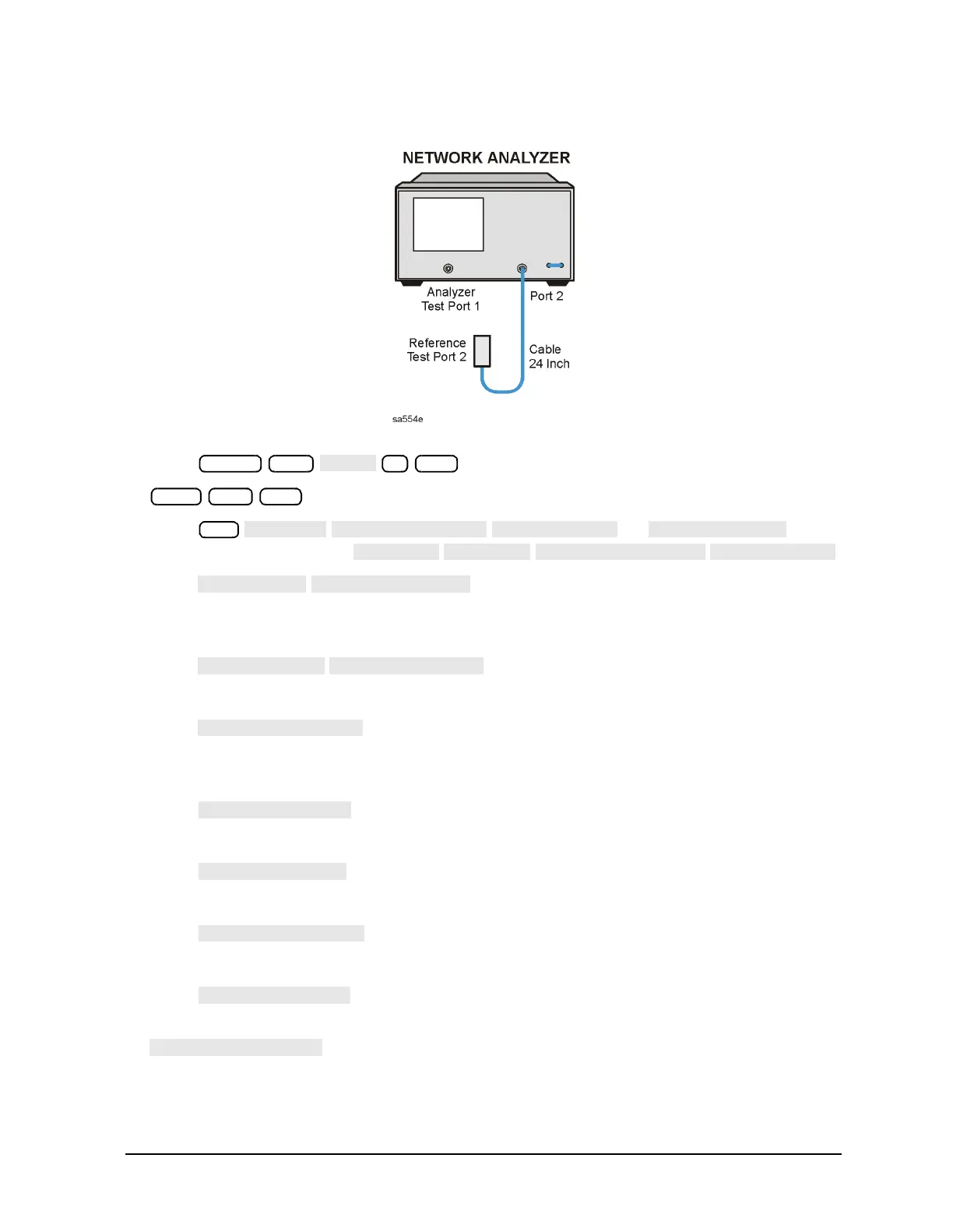

Figure 2-29 First Full 2-Port Calibration Test Setup
2. Press
.
3. Press (or if the
analyzer has Option 075) .
4. Press .
5. Connect the OPEN end of the open/short combination (supplied in the calibration kit) to
analyzer test port 1.
6. Press .
7. Connect the SHORT end of the open/short combination to analyzer test port 1.
8. Press .
9. Replace the open/short combination with the termination (supplied in the calibration
kit).
10.Press .
11.Connect the OPEN end of the open/short combination to reference test port 2.
12.Press .
13.Connect the SHORT end of the open/short combination to reference test port 2.
14.Press .
15.Connect the termination to the reference test port 2.
16.Press .
17.When the analyzer displays PRESS ’DONE’ IF FINISHED WITH STD(s), press
.
Wait for the message COMPUTING CAL COEFFICIENTS to disappear from the analyzer
display before proceeding to the next step.
Preset Avg
IF BW
3
k/m
Start 300 k/m
Cal
CAL KIT
SELECT CAL KIT
CAL KIT:7mm
CAL KIT: N 75
Ω
RETURN
RETURN
CALIBRATE MENU
FULL 2-PORT
ISOLATION
OMIT ISOLATION
REFLECTION
FORWARD:OPEN
FORWARD:SHORT
FORWARD:LOAD
REVERSE:OPEN
REVERSE: SHORT
REVERSE: LOAD
STANDARDS DONE
