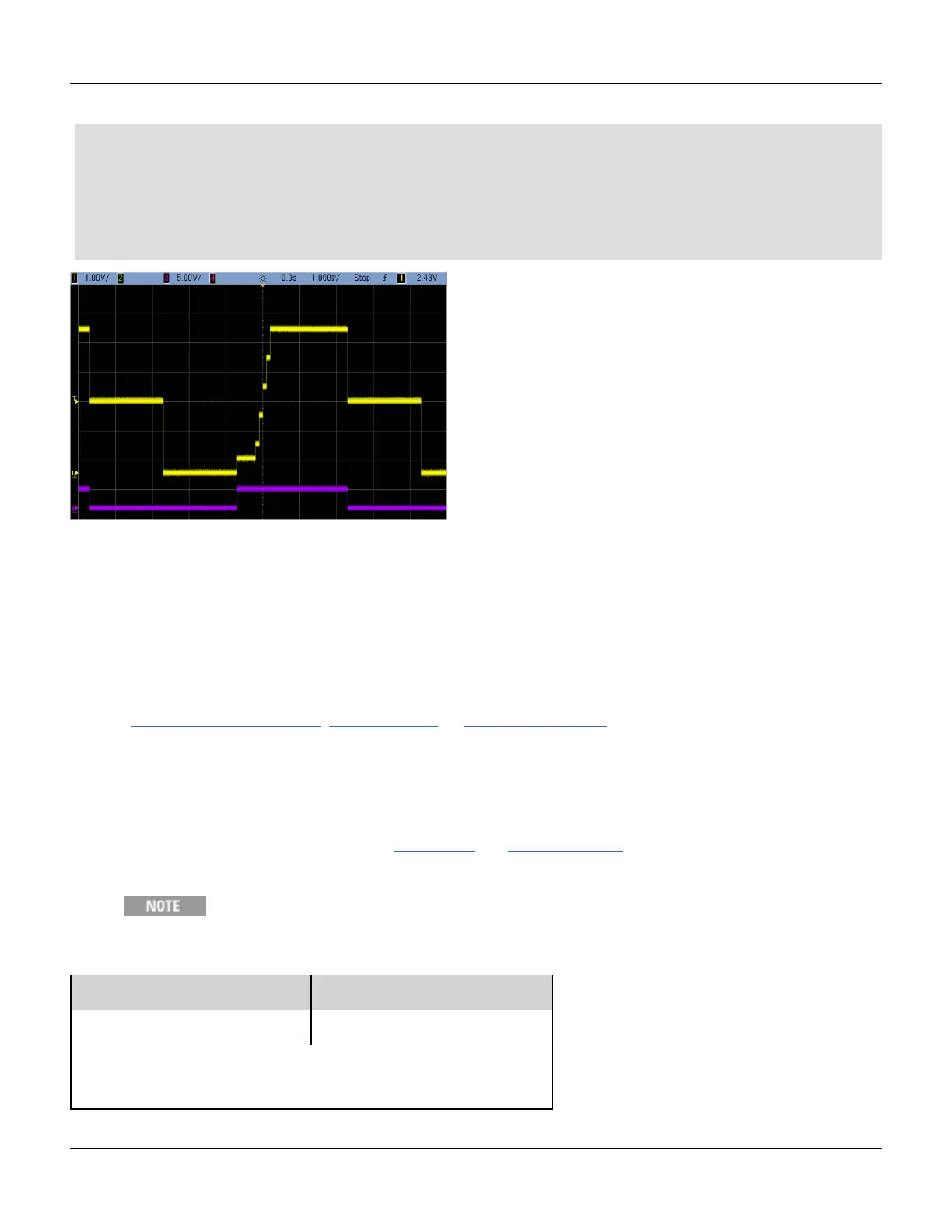

DATA Subsystem
2,repeat,maintain,5
FUNC ARB
FUNC:ARB seqExample
DATA:ATTR:POINTS? <--- result is 40, the sum of four 10-point arbs
DATA:ATTR:PTPEAK? <--- result is 0.5, only using half of 10 Vpp range
OUTPUT ON
Format for <arb_name>
Many DATA commands use the name of an arbitrary waveform. The following rules apply:
l <arb_name> must match:
l A waveform already loaded into waveform memory.
l A waveform existing in INTERNAL or USB mass memory.
l See MMEMory:LOAD:DATA[1|2], DATA:ARBitrary, or DATA:ARBitrary:DAC for valid formats for <arb_name>.
[SOURce[1|2]:]DATA:ARBitrary2:FORMat {ABAB|AABB}
(Applies only to instruments with the optional IQplayer capability.)
Specifies whether the format for data points in DATA:ARB2 and DATA:ARB2:DAC commands is interleaved (ABAB) or
all of channel 1 followed by all of channel 2 (AABB).
You may spell out the keyword ARBitrary2, but you must abbreviate it as ARB2. You can-
not abbreviate it as ARB.
Parameter Typical Return
{AABB|ABAB} AABB or ABAB
Specify an interleaved data format for dual arbitrary waveform data:
DATA:ARB2:FORM ABAB
Agilent 33500 Series Operating and Service Guide 187
