Configure a Square Wave
Configure a Square Wave
Description
A square wave has amplitude, offset, and phase relative to sync pulse. It also has duty cycle and period. Its amplitude
and offset can also be set using high and low voltage values.
Example

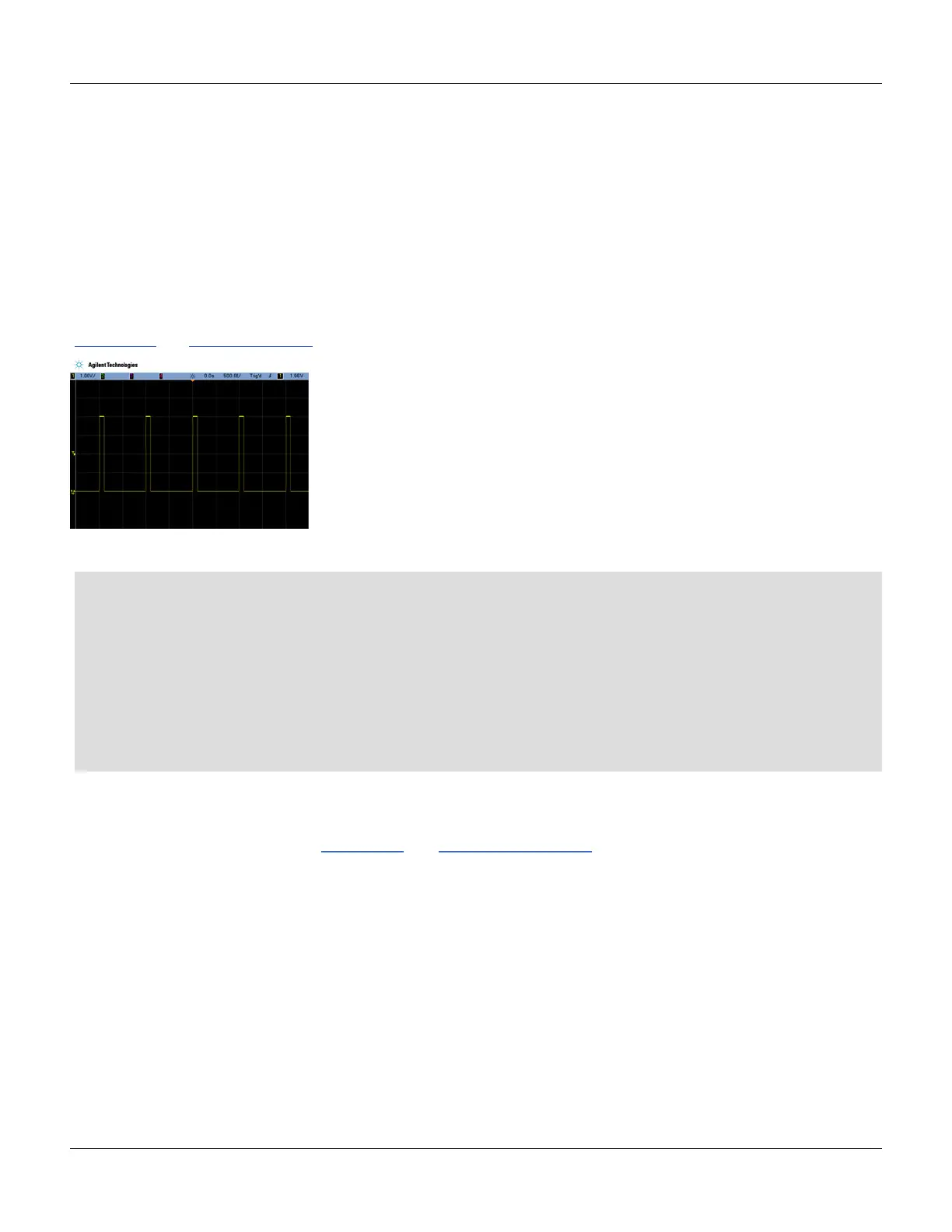

The following waveform can be set up with the series of SCPI commands, where high and low can be used in place of
SOUR:VOLT and SOUR:VOLT:OFFS.
The following commands produce the square wave shown above.
SOUR:FUNCtion SQU
SOUR:FUNCtion:SQUare:DCYCle +10.0
SOUR:FREQ +1.0E+03
SOUR:VOLT +2.0
SOUR:VOLT:HIGH +2.0
SOUR:VOLT:LOW +0.0
SOUR:VOLT:OFFS +1.0
OUTPut1 1
SOUR:PHAS +90.0
Remarks
l For Square Wave, if you change SOUR:FREQ, the SOUR:FUNC:SQU:PER will change. For example, SOUR:FREQ
+2.0E+03 is equivalent to SOUR:FUNC:SQU:PER +5.0E-04.
Agilent 33500 Series Operating and Service Guide 329
