Pulse Waveforms
Pulse Waveforms

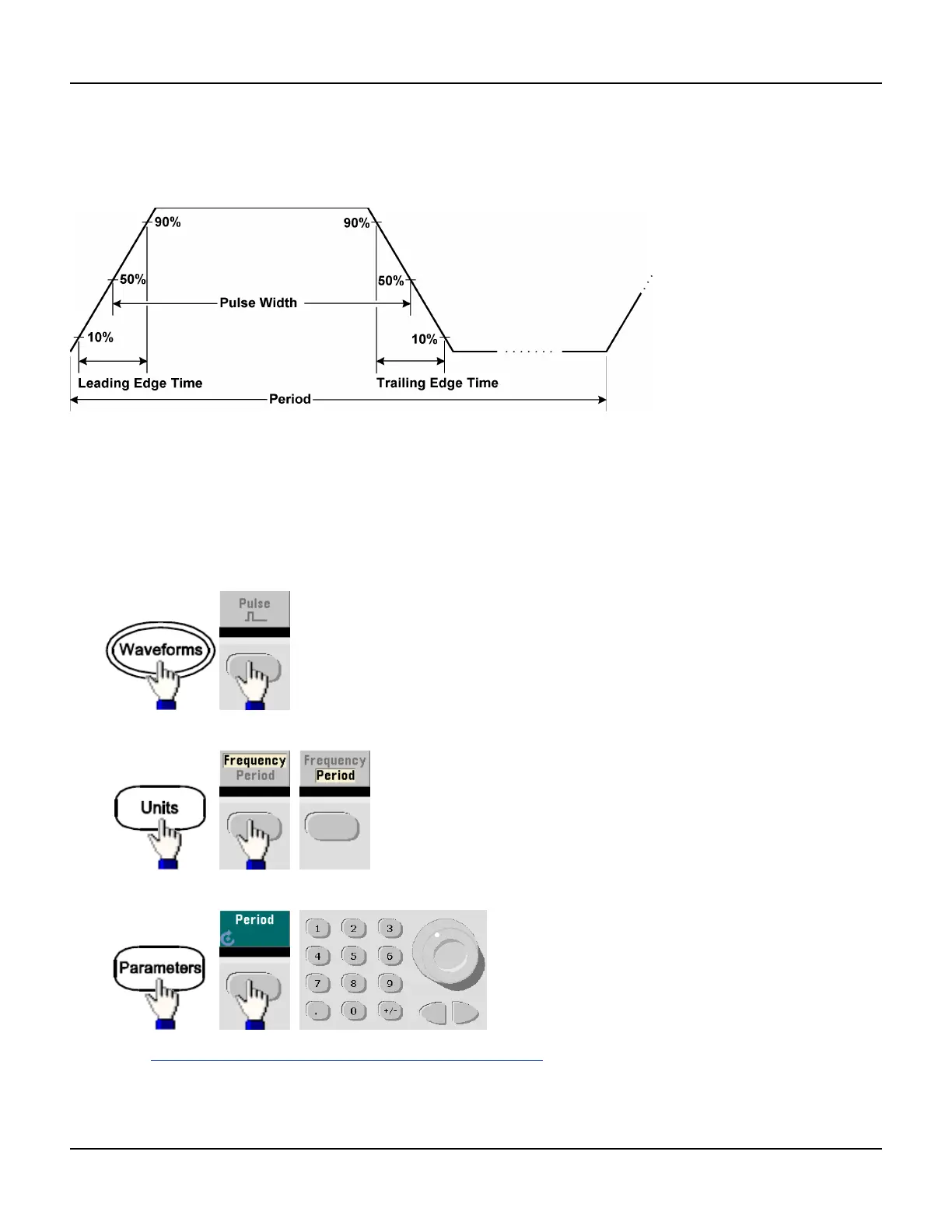

As shown below, a pulse or square wave consists of a period, a pulse width, a rising edge, and a falling edge.
Period
l Period: reciprocal of maximum frequency to 1,000,000 s. The default is 1 ms.
l The instrument adjusts the pulse width and edge time as needed to accommodate the specified period.
l Front Panel:
Select Pulse waveform:
Select period instead of frequency:
Set the period:
l SCPI: [SOURce[1|2]:]FUNC:PULS:PER {<seconds>|MIN|MAX}
