Embedded Waveform Editor
Embedded Waveform Editor
The instrument includes an embedded waveform editor for creating and editing single-channel arbitrary waveforms.
You can enter and edit voltage values directly or by combining up to 12 different kinds of standard waveforms, as
described in the following sections:
Standard Waveforms
Basic Waveform Editing
Advanced Edit
Advanced Math
Utility Menu
Standard Waveforms

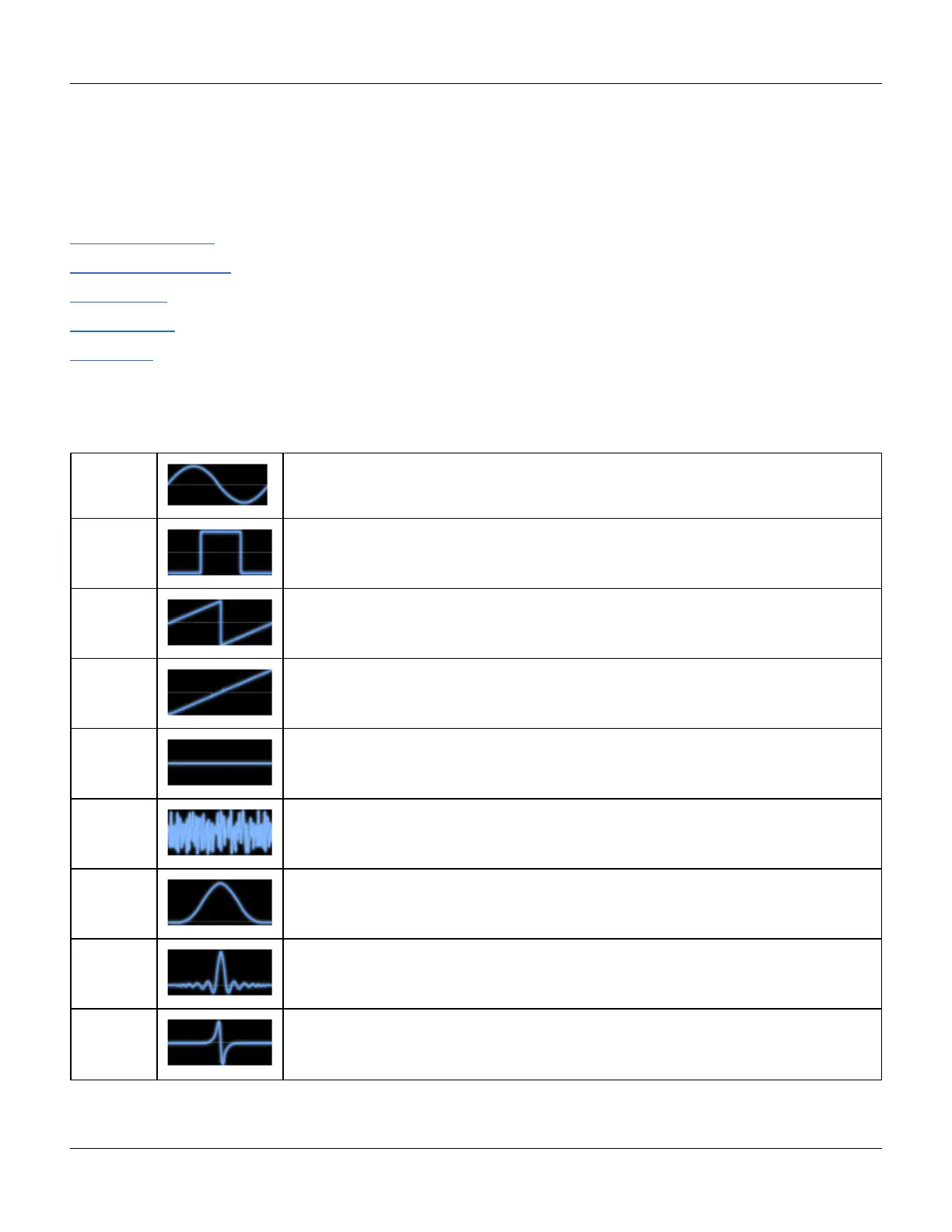

The embedded waveform editor includes the following 12 waveforms:
Sine y = sin(x)
Square A square wave that switches between two voltage levels
Ramp A waveform with linearly rising or falling voltage
Line Line segment
DC A DC voltage
Noise Random noise
Gaussian A gaussian bell curve
Sinc y = sin(x)/x
D-Lorentz The derivative of the Lorentz function. The Lorentz function is y = 1/(x²+1), so the
The D-Lorentz function is y = -2x/(x²+1)².
Agilent 33500 Series Operating and Service Guide 127
