-24 dB Range Flatness Adjustment (Channel 2)
-24 dB Range Flatness Adjustment (Channel 2)

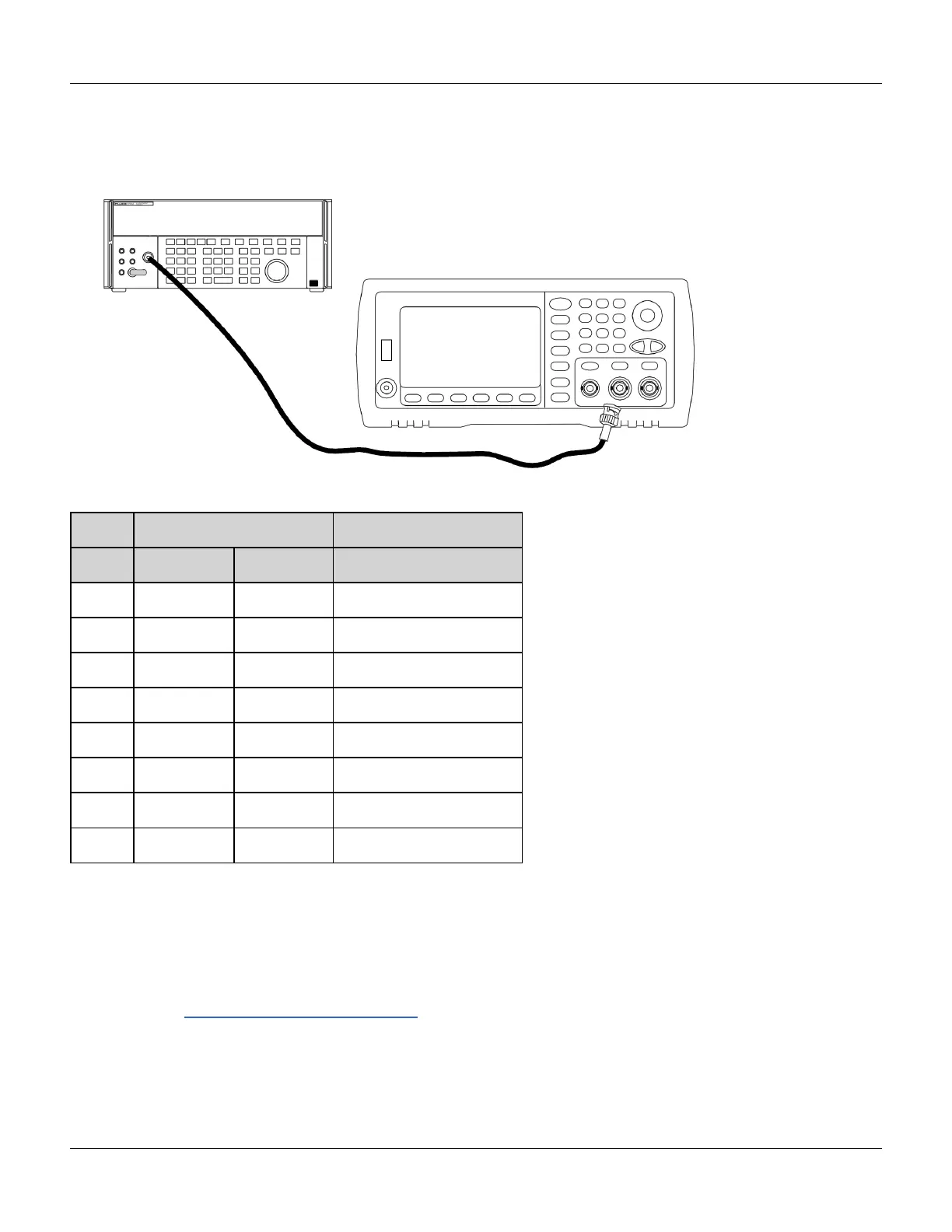

1. Connect a precision AC voltmeter to measure the output amplitude as shown below. Connect the BNC cable to the
Wide Band input of the Fluke 5790A.
2. Use the precision AC voltmeter to measure the output amplitude for each setup in the table below.
Setup Nominal Signal
Frequency Amplitude
85* 1 kHz 0.192 Vrms Flatness for -24 dB range
86* 100 kHz 0.192 Vrms Flatness for -24 dB range
87* 1 MHz 0.192 Vrms Flatness for -24 dB range
88* 5 MHz 0.192 Vrms Flatness for -24 dB range
89* 10 MHz 0.192 Vrms Flatness for -24 dB range
90* 20 MHz 0.192 Vrms Flatness for -24 dB range
91* 25 MHz 0.192 Vrms Flatness for -24 dB range
92* 30 MHz 0.192 Vrms Flatness for -24 dB range
* Constants are stored after completing this setup.
3. Using the numeric keypad or knob, adjust the displayed voltage at each setup to match the measured voltage.
Select ENTER VALUE.
4. After performing setup 92:
a. If your calibration procedures require you to verify the adjustment just made, exit the calibration menu and
perform -24 dB Range Flatness Verification. Be sure that you do this for Channel 2.
b. If you are making all of the adjustments and then verifying the instrument’s performance, continue with the
next procedure in this section.
Agilent 33500 Series Operating and Service Guide 403
