177
Chapter 7 Plug-in Modules
N2260A 40-Channel MUX Module
4
7

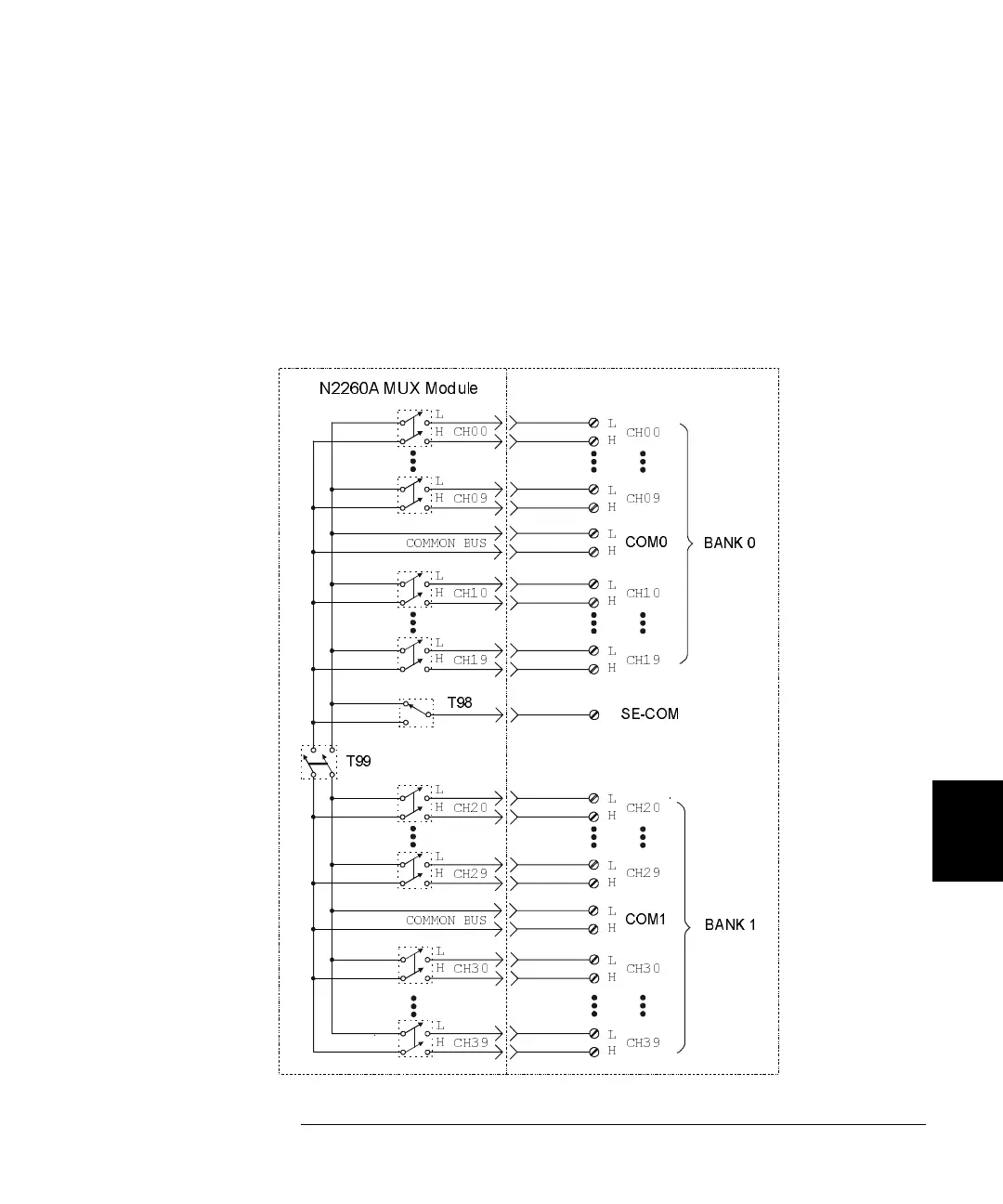

N2260A Simplified Schematic
A simplified schematic of the N2260A is shown below. The 40 2-wire
channel relays (CH00-CH39) are divided into two banks: BANK 0 and
BANK 1. Each bank consists of 20 2-wire switching channels and a
common bus (COM0 & COM1). There is also a single-ended common
terminal (SE-COM) used when the multiplexer is configured to 80-
channel 1-wire mode. The two tree relays, T98 and T99, are used to
configure the N2260A.
L
H
L
H
CH00
L
H
L
H
CH09
L
H
L
H
CH19
SE-COM
L
H
L
H
CH10
CH00
CH09
CH19
CH10
L
H
L
H
CH29
L
H
L
H
CH20
L
H
L
H
CH39
L
H
L
H
CH30
CH39
CH30
L
H
COMMON BUS
CO M 0
CH20
L
H
COMMON BUS
CO M 1
CH29
BANK 0
BANK 1
T98
T99
N2260A MUX Module
To Next Page
