N2270A 10-Channel High Voltage MUX Module
7
N2270A 10-Channel High Voltage MUX Module
The Agilent N2270A is a 10-Channel 2-wire High Voltage multiplexer
typically used in the semiconductor test field. The Maximum Switching
Voltage is 1000 V peak, and the Maximum Switching Power is 10 W.
The module has a metal shell to minimize interference while switching
high voltage.
Specifications for the N2270A are given on page 321.
WARNING Hazardous voltages may exist on the wiring and connectors. DO NOT
remove or install the module or the module connector until all external
voltages have been removed.

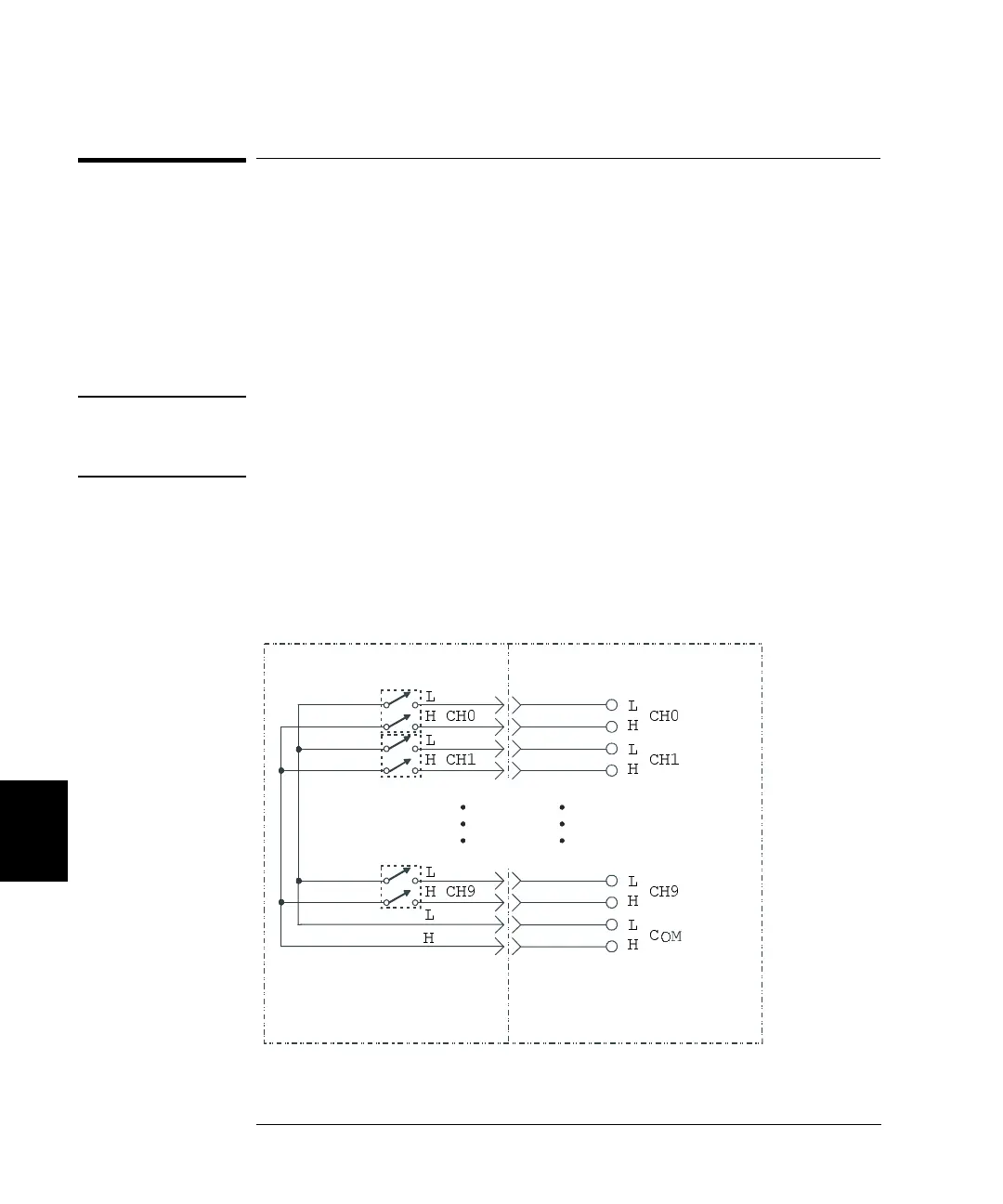

N2270A Simplified Schematic
A simplified schematic is shown below. The N2270A consists of 10 2-wire
channels and a common bus. The 10 channels of the N2270A are
numbered from 00 through 09 (CH0 through CH9).
CH0
CH1
CH9
C
L
H
L
H
L
H
L
H
L
H CH0
L
H CH1
L
H CH9
L
H
To Next Page
