18
1

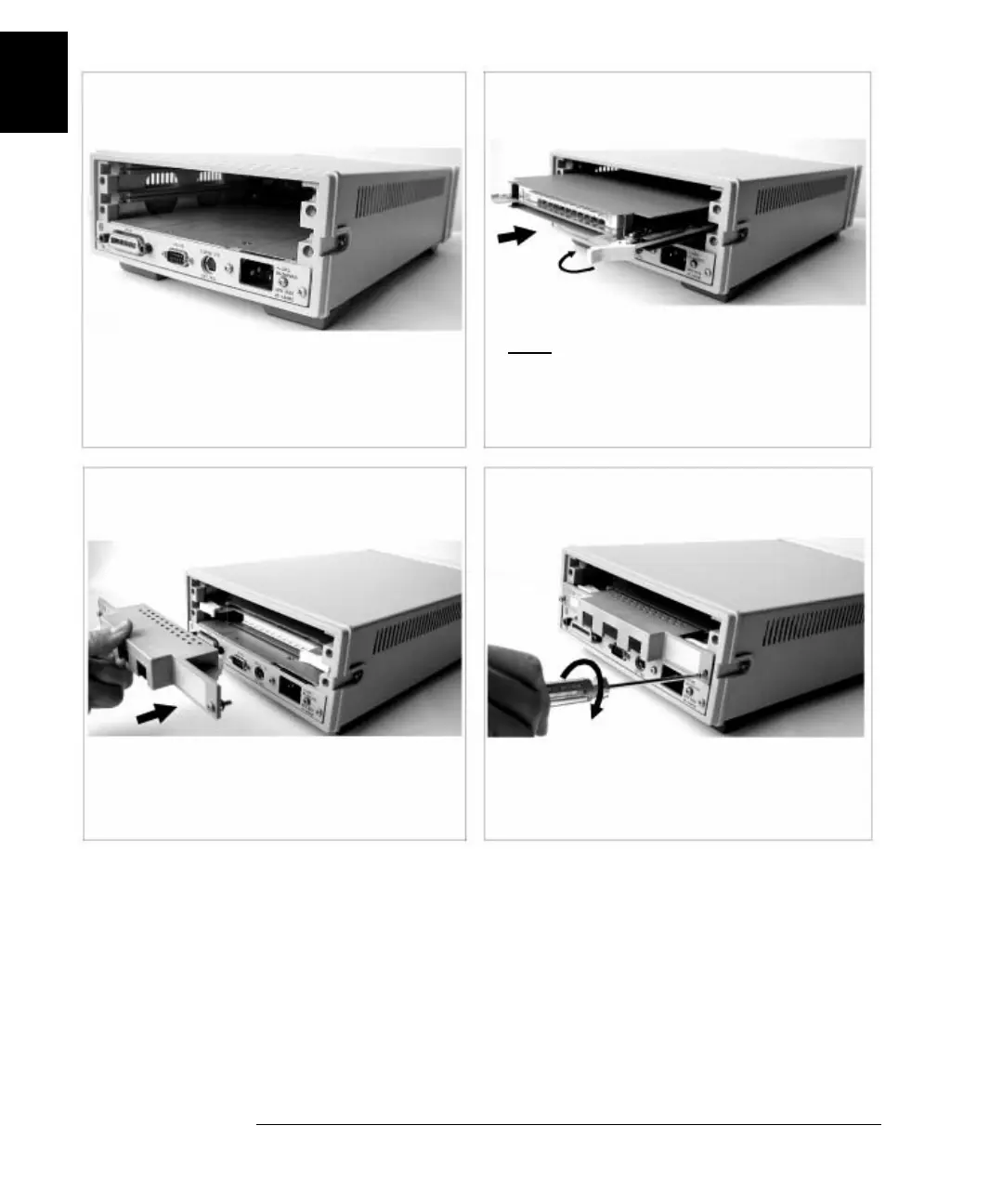

Module installation
STEP 1
STEP 2
STEP 3
(for modules with terminal blocks)
STEP 4
(for modules with terminal blocks)
1. Hold the sides of the module, component side
down
, by the metal shields.
2. Insert the module into the slot guides and slide
the module toward the front of the instrument.
3. Push firmly until the module “snaps” into place.
4. Push both plastic levers inward to lock the
module.
1. Face the mainframe rear panel toward you.
2. Select a slot in which the module is to be
installed.
1. Wire the screw terminal block (module
dependent, refer to chapter 7 for details).
2. Attach the screw terminal block to the plug-in
module.
1. Push firmly until the terminal block “snaps” into
place.
2. Secure the screw terminal block with the two
screws (Torque < 8 in-lbs).
