199
Chapter 7 Plug-in Modules
N2265A Multifunction Module
4
7

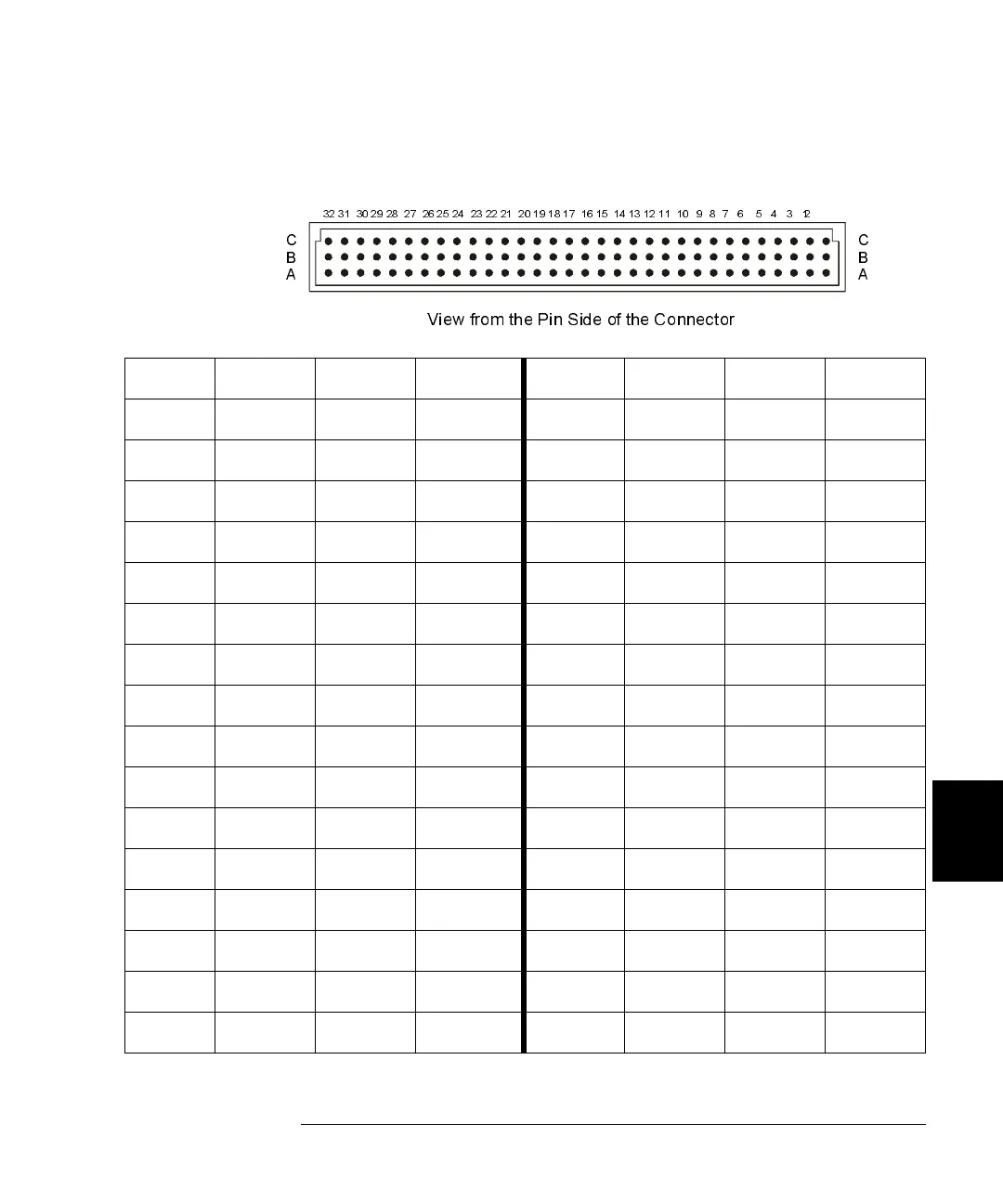

N2265A Pinout P600 is a 96-pin male DIN connector mounted on the
N2265A. The connector and pinout assignments are shown below.
Pin #ABC Pin #ABC
1
Not used Not used COL0_L
17
Not used Not used Not used
2
Not used Not used COL0_H
18
Not used Not used Not used
3
Not used Not used COL1_L
19
BIT40 BIT41 BIT42
4
Not used Not used COL1_H
20
GND GND GND
5
Not used Not used COL2_L
21
BIT43 BIT44 BIT45
6
Not used Not used COL2_H
22
GND GND GND
7
Not used Not used COL3_L
23
BIT46 BIT47 GND
8
Not used Not used COL3_H
24
GND GND GND
9
Not used Not used ROW0_L
25
BIT48 BIT49 BIT50
10
Not used Not used ROW0_H
26
GND GND GND
11
Not used Not used ROW1_L
27
BIT51 BIT52 BIT53
12
Not used Not used ROW1_H
28
GND GND GND
13
Not used Not used ROW2_L
29
BIT54 BIT55 GND
14
Not used Not used ROW2_H
30
GND GND GND
15
Not used Not used ROW3_L
31
I/O PCTL PFLG
16
Not used Not used ROW3_H
32
GND GND GND
C
B
A
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 21
View from the Pin Side of the C o nnector
C
B
A
