Chapter 7 Plug-in Modules

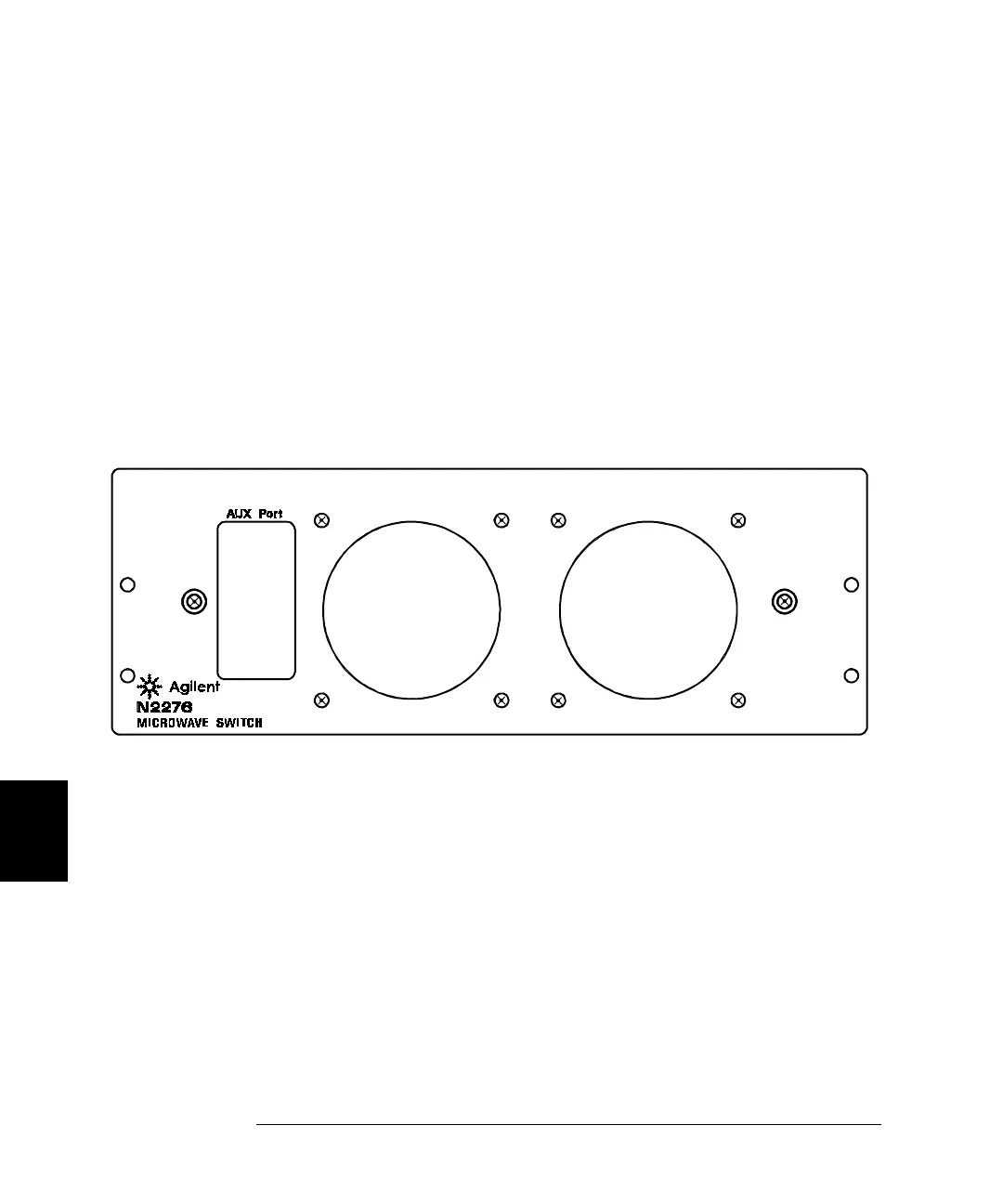

N2276A Dual 1-to-6(4) Microwave MUX/Attenuator Module
7
N2276A Wiring Information
All the microwave switches for the N2276A have SMA female connectors.
For the attenuators, each standard 84904/6/7L model offers two female
2.4 mm connectors and each 84904/6/7L model with option 006 has two
female 2.92 mm connectors (compatible with SMA connectors). When
using 84904/6/7L series attenuators, be sure to order them with option
006 (SMA compatible) for wiring convenience.
The default ribbon cable for connecting attenuators to N2276A/B is 1.5 m
in length. A 1.5 m length ribbon cable for connecting microwave switches
to the switch connectors on the N2276A is available as Agilent part
number N2276-61003. This cable permits the microwave switches to be
placed in a convenient location.
