227
Chapter 7 Plug-in Modules
N2281A Dual 1-to-4 Optical Switch Module
4
7
N2281A Wiring Information

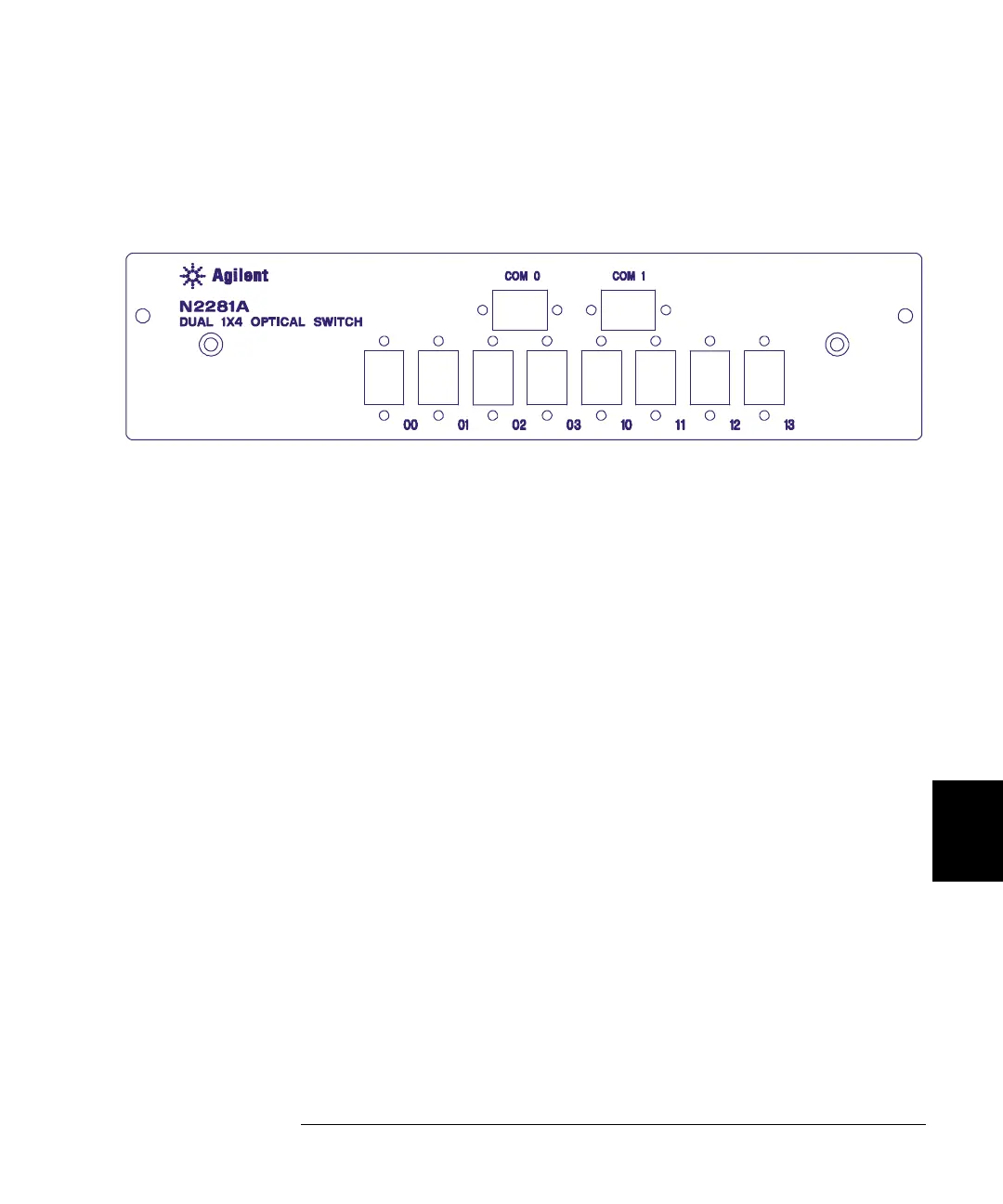

Use SC/APC connectors to connect external optical signals to the
N2281A module. The rear panel is shown below.
