Agilent Technologies Agilent 3499A User Manual

285
Chapter 7 Plug-in Modules
Terminals and Connections Information
4
7
4448X Screw Terminal Connector Blocks
Screw terminal connectors are available for the 44470A, 44471A,
44473A, 44474A, 44475A, and 44477A plug-in modules. One of these
terminals is shipped with each plug-in module. Refer to the specific plug-
in module wiring information for details about the connector and pin-out

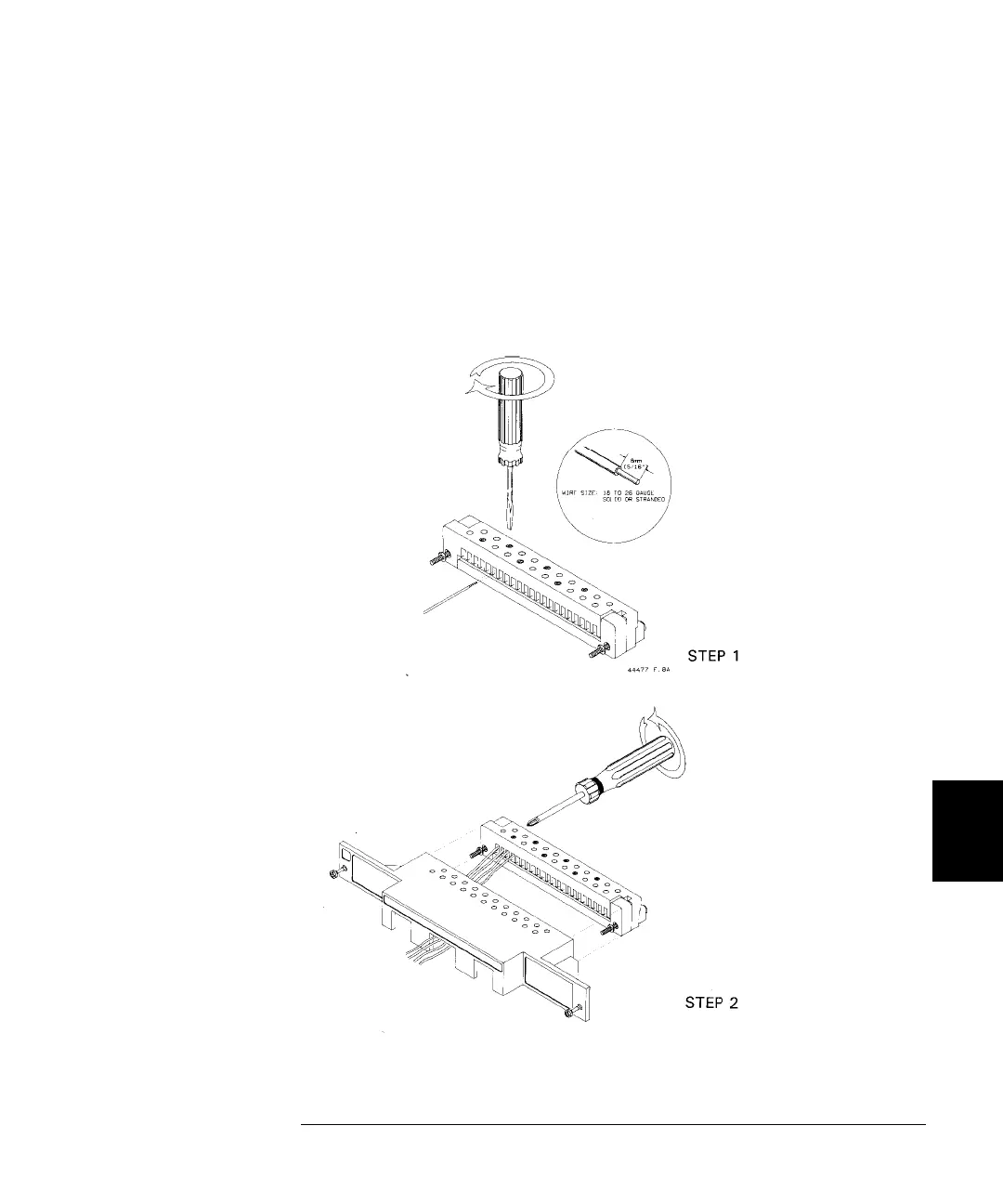

assignments. The figures below shows the basic steps to wire and
assemble this type of terminal.
