Chapter 3 System Overview
Plug-in Modules Overview
3
Matrix Modules
A matrix switch is the most versatile type of system switching. Any input
can be connected to any output, individually or in combination. This
helps minimize the need for complex wiring, and can simplify the DUT
interface. In addition, a matrix module can be used in conjunction with
other modules to provide a wide variety of switching combinations. A

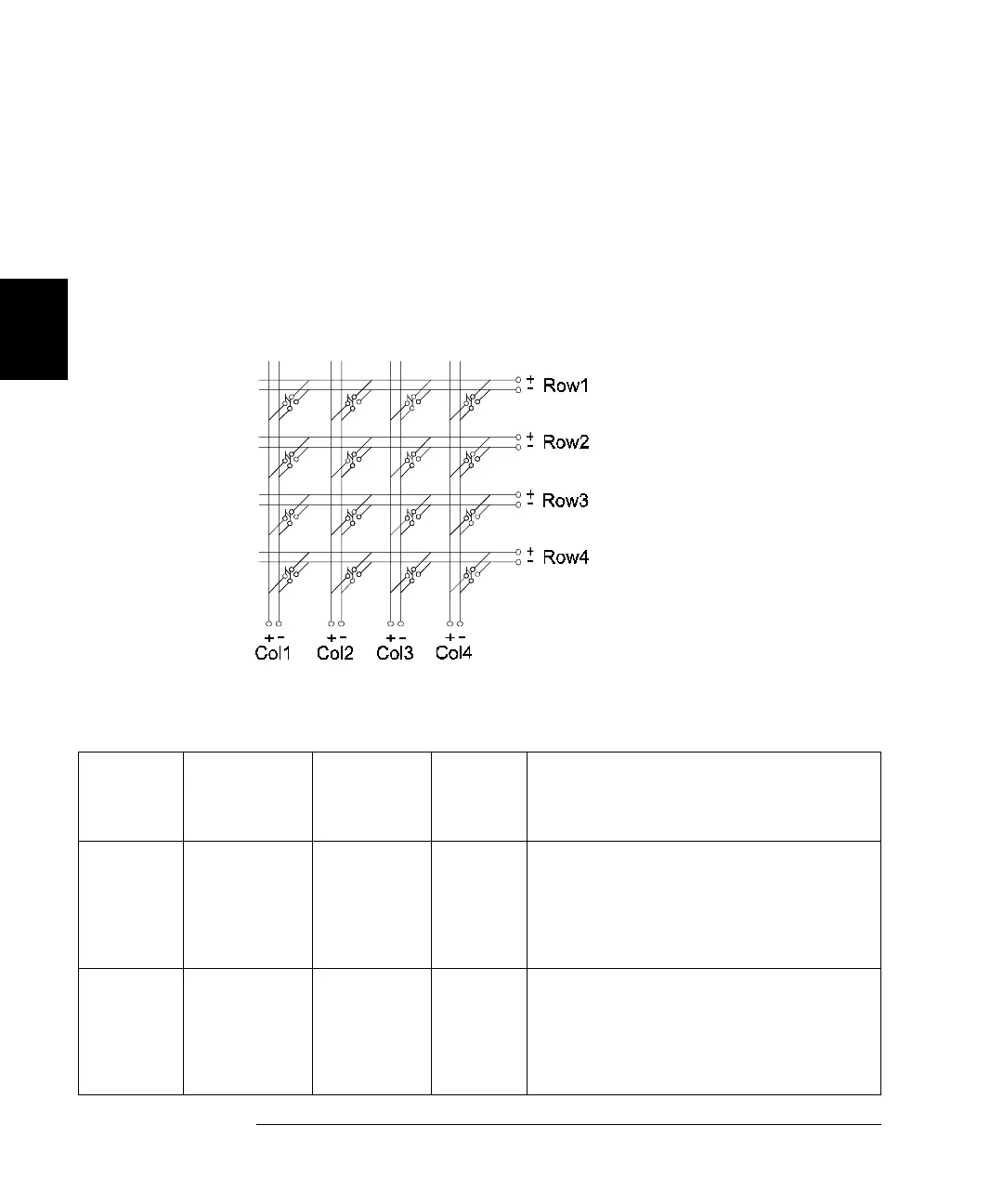

matrix is arranged in rows and columns and a simple 4 x 4 matrix switch
is shown below.
Matrix Switching
The table below lists the available matrix modules.
Model
Number
Module
Name
Mainframe
Slots
Required
Relay
Type
Description
N2262A 4 x 8 Matrix
Module
1 Latching Each crosspoint or node of the 4 x 8
matrix module uses a DPST (Double-
pole Single-throw) relay to switch two
wires (Hi & Lo) for signals up to 200V,
1A.
44473A 4 x 4 Matrix
Module
1 Latching Each crosspoint or node of the 4 x 4
matrix module uses a DPST (Double-
pole Single-throw) relay to switch two
wires (Hi & Lo) for signals up to 250V,
2A.
