5 Specifications
168 E4418B Power Meter User’s Guide
For Agilent N8480 Series power sensors
Manual filter, 10 dB decreasing power step:
Tab l e 5 - 6 Settling Time
Auto filter, default resolution, 10 dB decreasing power step,
normal and x2 speed modes:
Number of Averages 1 2 4 8 16 32 64 128 256 512 1024
Settling Time (s)
(Normal Mode)
0.15 0.2 0.3 0.5 1.1 1.9 3.4 6.6 13 27 57
Response Time (s)
(x2 mode)
0.15 0.18 0.22 0.35 0.55 1.1 1.9 3.5 6.9 14.5 33

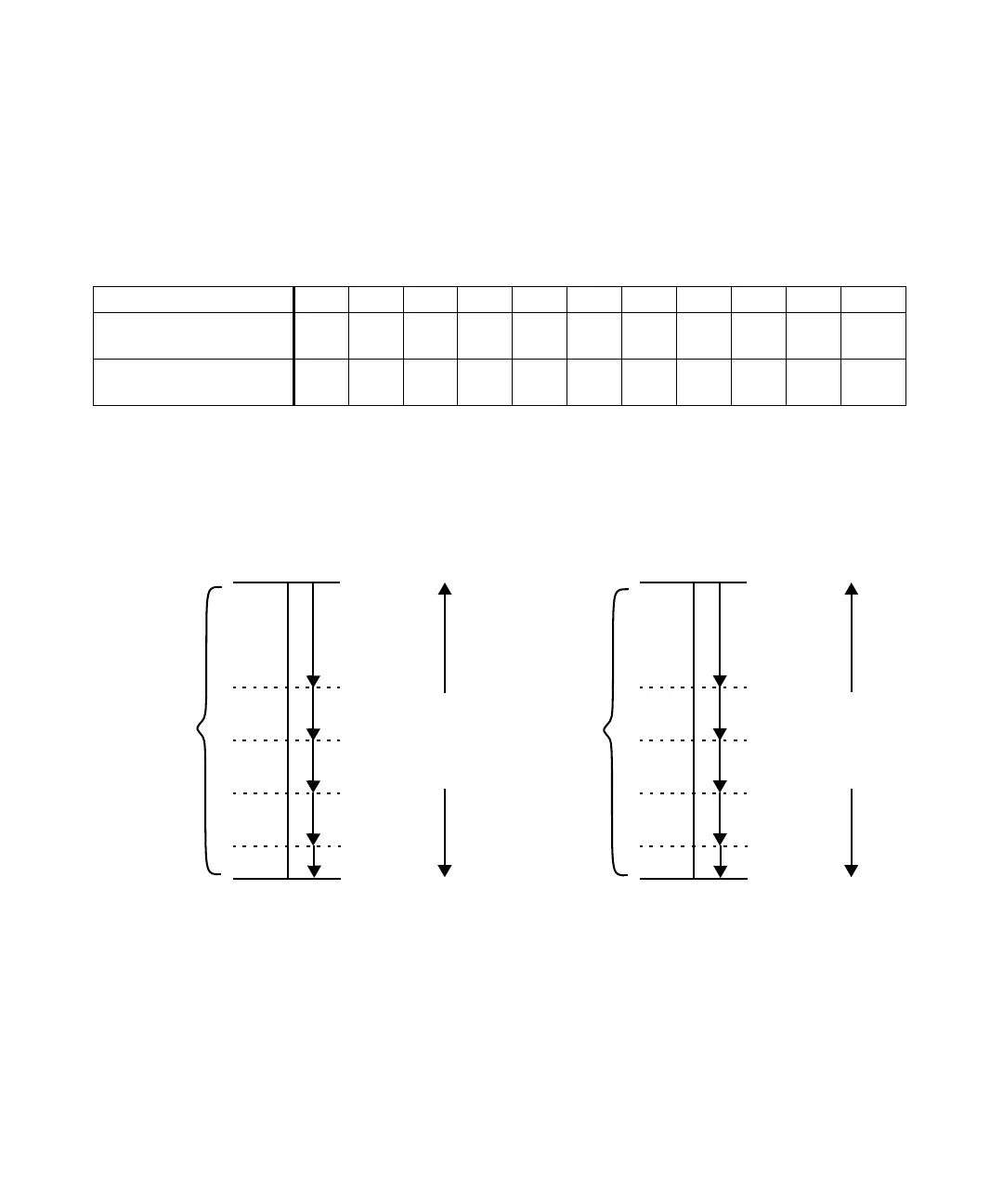

10 dB
10 dB
10 dB
20 dB
Minimum dBm
Power
150 ms
6.6 s
1s
200 ms
Settling
Times
Sensor
Dynamic
Range
Maximum dBm
Normal Mode
Ty p i c a l
13.5 s
5 dB
10 dB
10 dB
10 dB
20 dB
Power
150 ms
3.6 s
400 ms
180 ms
Settling
Times
Sensor
Dynamic
Range
Maximum dBm
Minimum dBm
x2 Mode
Ty p i c a l
6.6 s
5 dB
