Getting Started 1
E4418B Power Meter User’s Guide 15

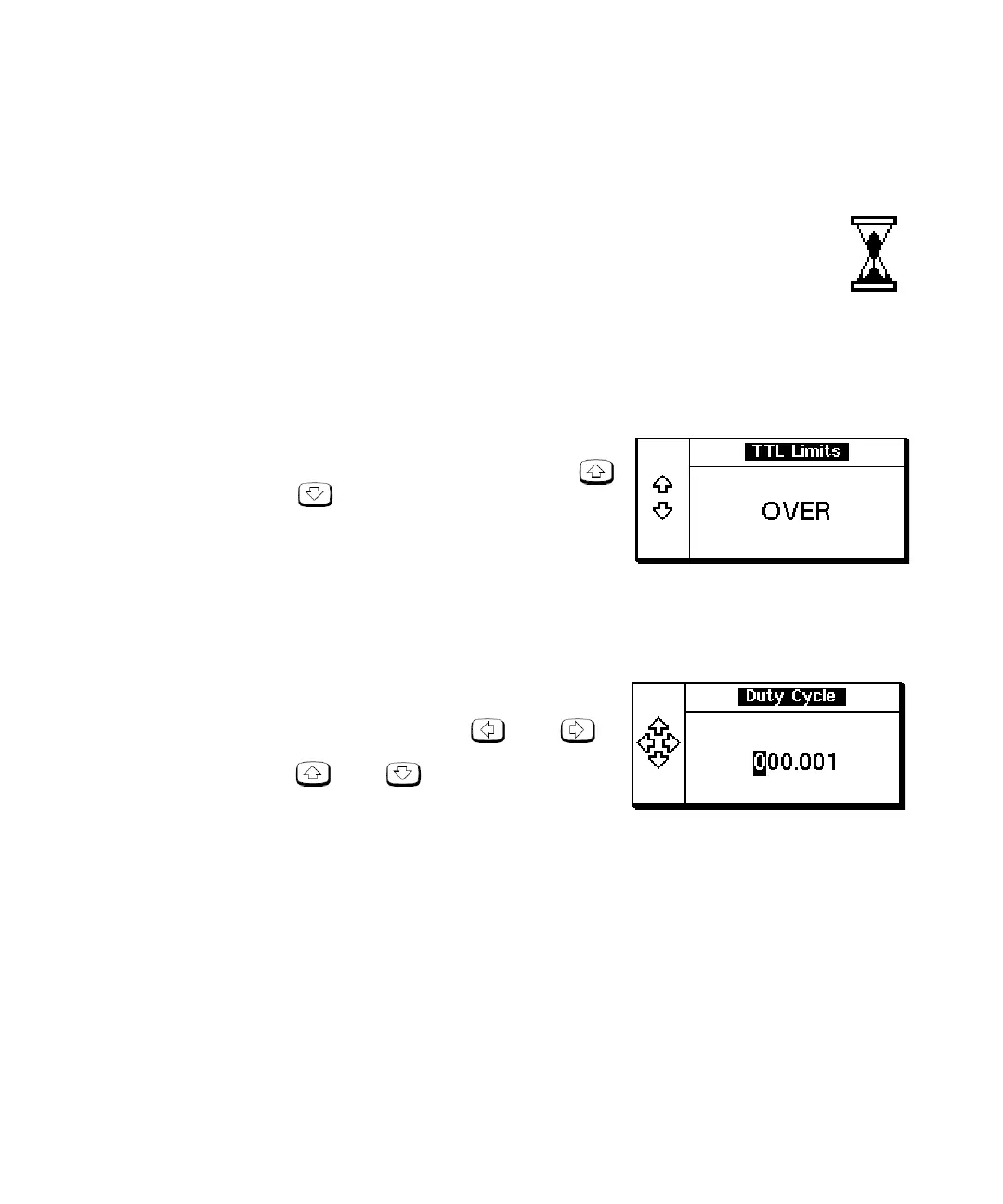

Wait Symbol
The wait symbol is displayed when the power meter is carrying out a
procedure, but no action is required from you. The symbol may
appear directly in the measurement window or in a pop- up
window. It may appear, for example, during zeroing or
calibration.
One of N Entry Window
This pop- up window is displayed when you
are required to select an entry using
and from the list.
Numeric or Alphanumeric Entry Window
This pop- up window is displayed when you
are required to modify numeric or
alphanumeric data. The
and
keys move the position of the cursor.
The
and keys increment and
decrement the alphanumeric digit on
which the cursor is currently positioned.
