Selecting Your Display Layout
Your power meter display is extremely flexible. It can be used to display a
variety of different measurements and windows depending on your needs. The

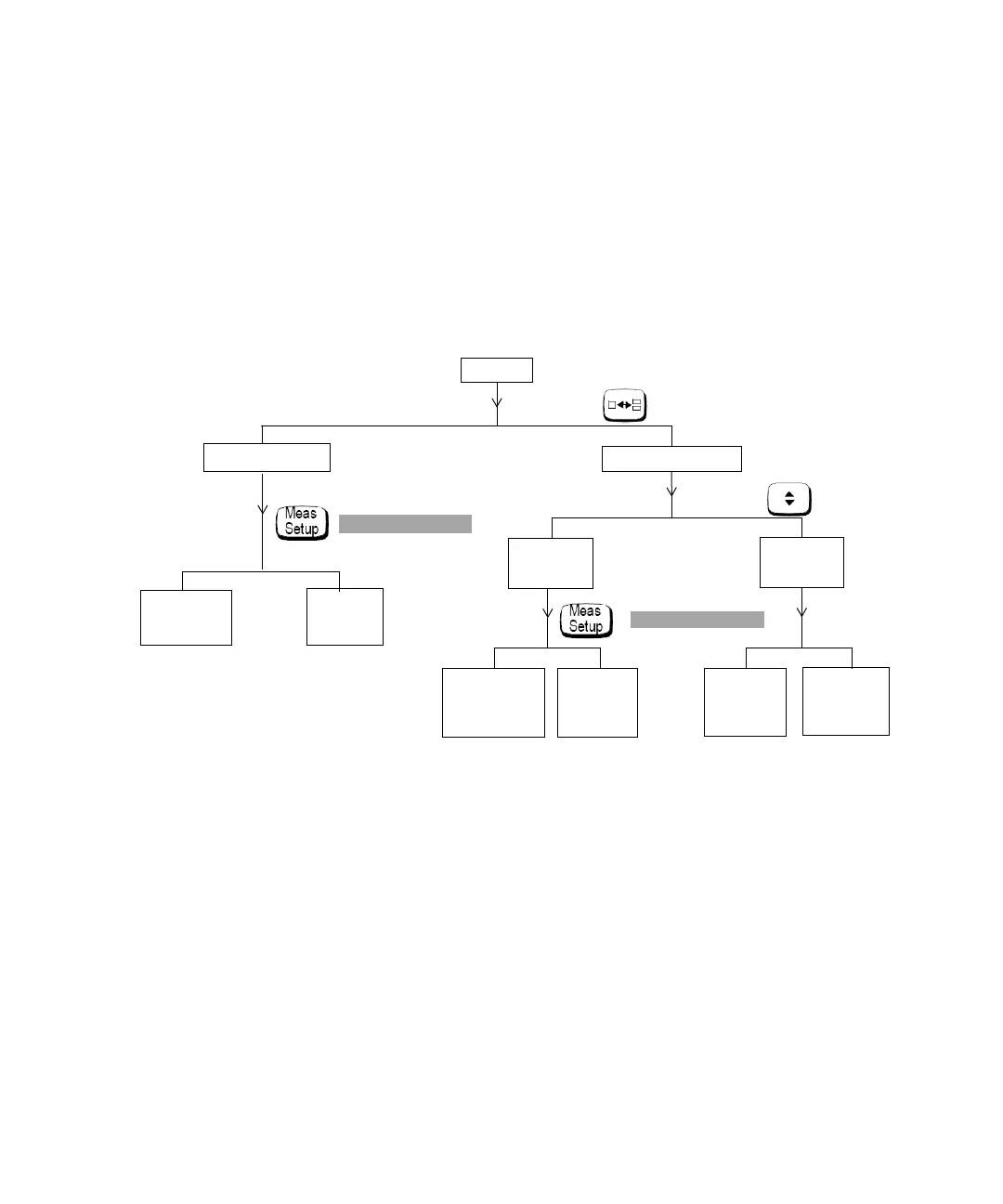

following diagram details the various options available to you.
, Display Format
Upper
Window
Lower
Window
Display
One Window
Two Windows
Digital
Display
Analog
Display
Digital
Display
Analog
Display
Digital
Display
Analog
Display
Select using
Select using
Select using
Select using
