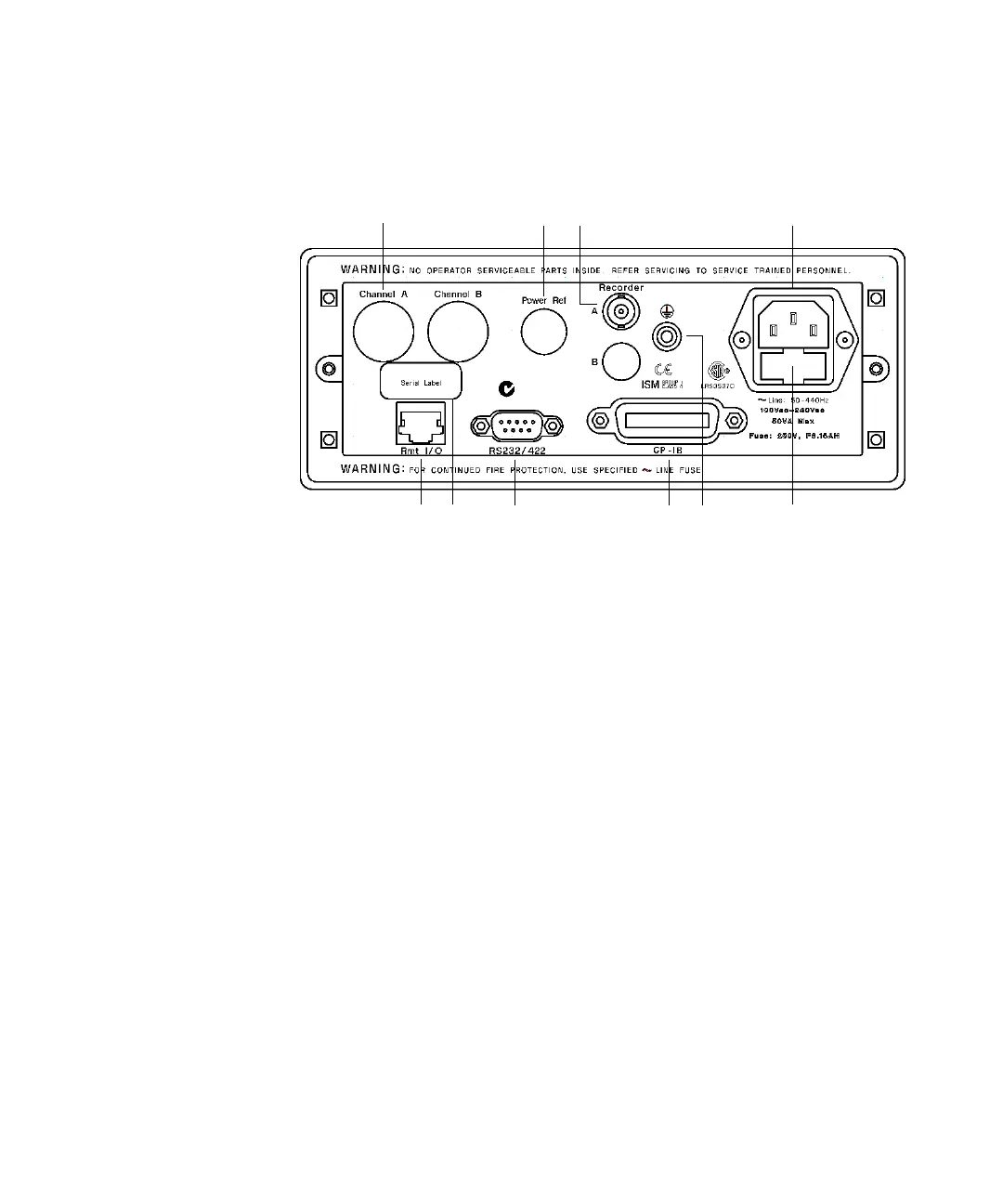

The Rear Panel at a Glance
1 Channel A (Option 002 or 003 only)
2 Power Ref (Option 003 only)
The power reference output is a 50 Ω type- N connector. The output signal is
used for calibrating the sensor meter combination.
3 Recorder Output
This output produces a DC voltage that corresponds to the power level of
the channel input. Refer to
“Recorder Output” on page 86 for further
information.
4 Power socket
This power meter has an auto configuring power supply. This allows it to
operate over a range of voltages without manually being set to a certain
voltage.
5 Fuse
An F3.15AH fuse is installed for all voltage supplies.
6 GPIB
This connector allows the power meter to be controlled remotely using the
General Purpose Interface Bus.
7 RS232/422
This connector allows the power meter to be controlled remotely using
either the RS232 or RS422 serial interface standards.
123
4
5
6
7
9 8
10
N279
