Power Meter Operation 2
E4418B Power Meter User’s Guide 71
A typical application for this feature is shown in Figure 2- 11.

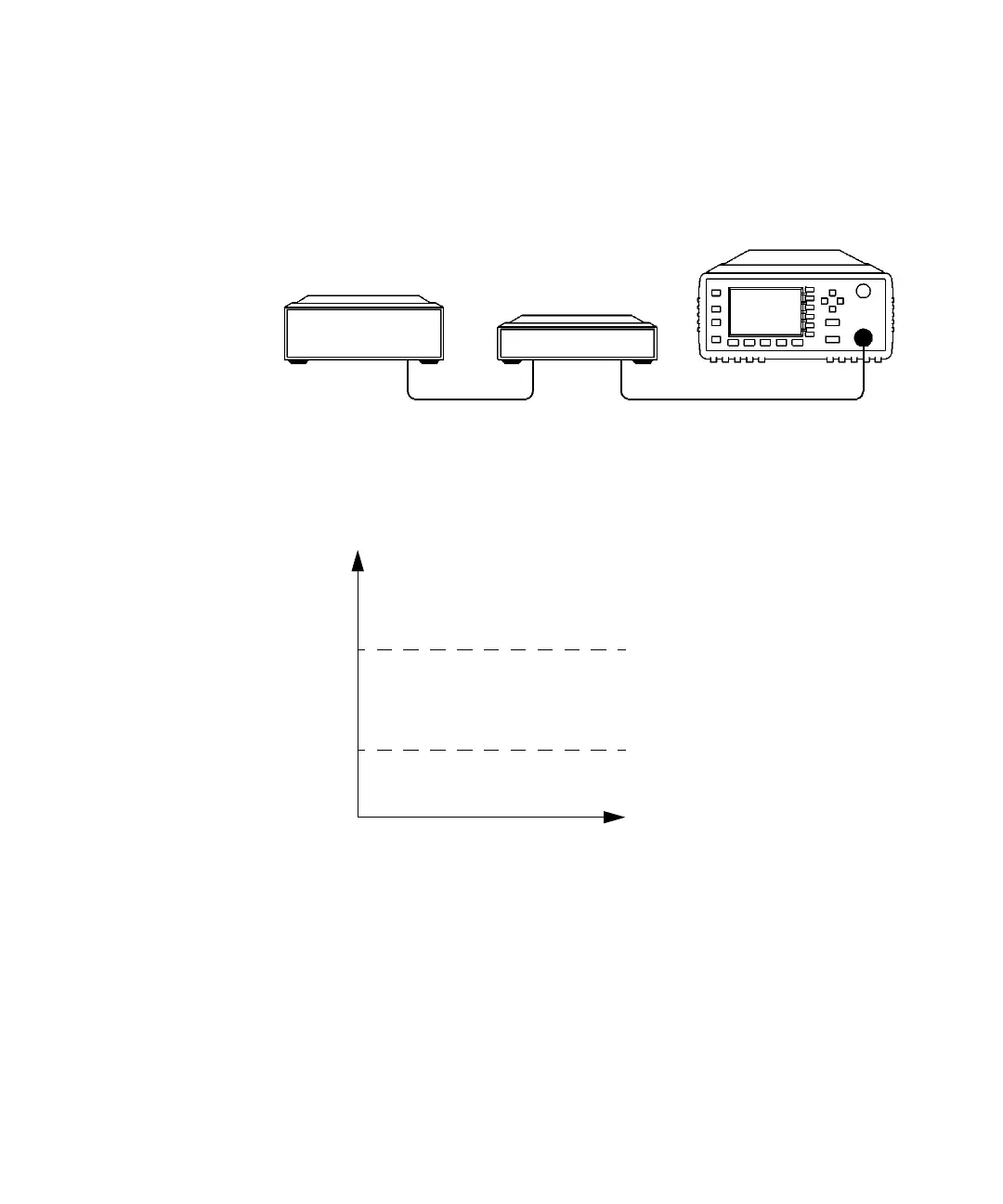

Figure 2-11 Limits Checking Application
Figure 2-12 Limits Checking Results
In this application, a swept frequency signal is applied to the input of the
Device Under Test. The power meter measures the output power. The
limits have been set at +4
dBm and +10 dBm. A fail occurs each time the
output power is outside these limits as shown in
Figure 2- 12.
Power Meter
Swept Source
CHANNEL A INPUT
OUT
IN
OUT
Device
Under Test
+4 dBm
+10 dBm
Amplitude
Frequency
o
o
o
o
o
o
o
Fail
Fail
