146 Chapter 5

Replaceable Parts

Replaceable Parts List

A28 FDD Assembly

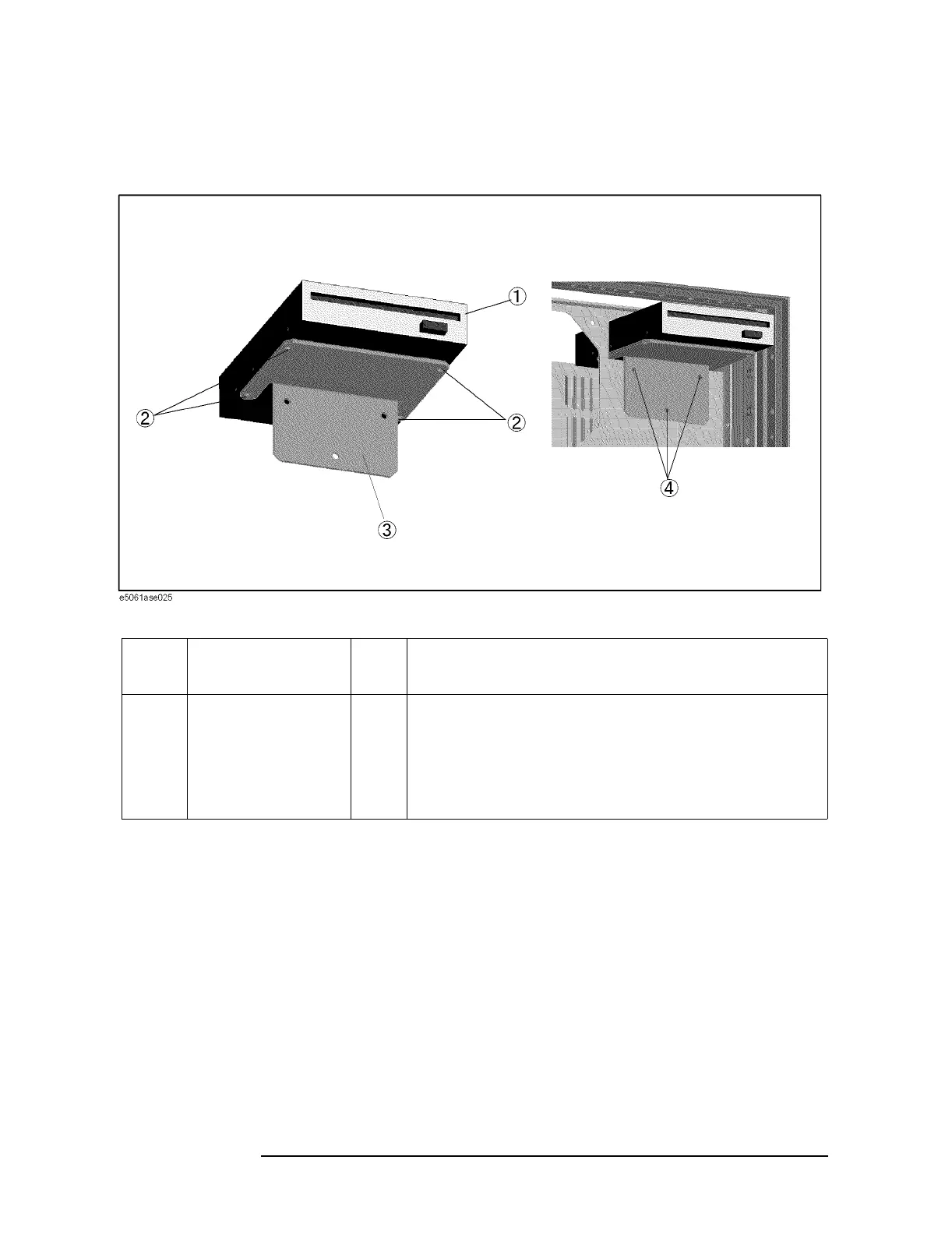

Figure 5-12 A28 FDD Assembly

Table 5-11 A28 FDD Assembly

Ref.

Desig.

Agilent Part Number Qty. Description

1 0950-5083 1 A28 FDD 3.5

2 0515-0430 4 SCREW-MACH M3.0 x L6 PN T10

3 E5062-01202 1 ANGLE FDD

4 0515-2143 3 SCREW-MACH M4.0 x L8 PN T20
