Chapter 5 159

Replaceable Parts

Replaceable Parts List

5. Replaceable Parts

Front Assembly (Cover 2)

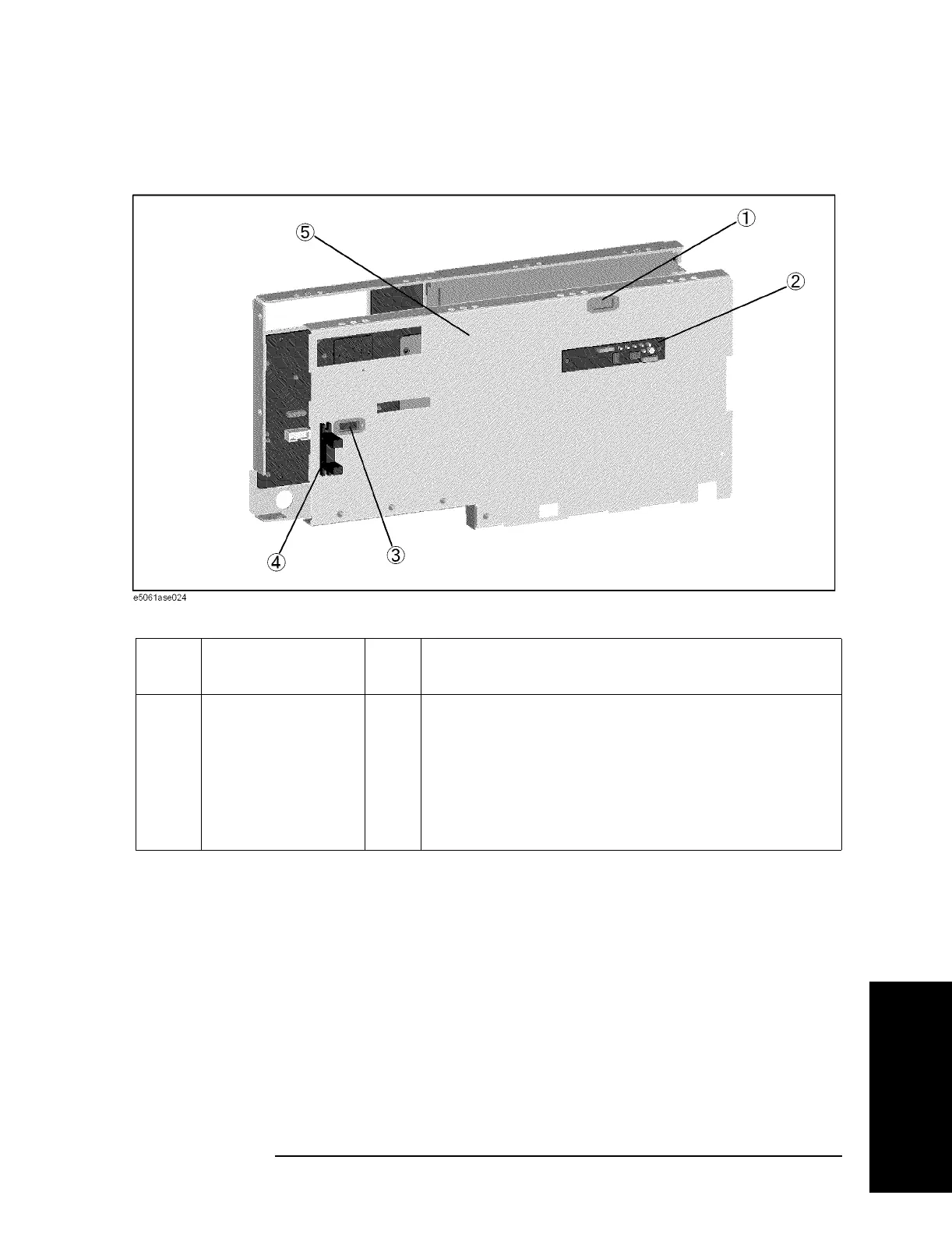

Figure 5-25 Front Assembly (Cover 2)

Table 5-24 Front Assembly (Cover 2)

Ref.

Desig.

Agilent Part Number Qty. Description

1 1400-3156 1 SADDLE EDGE (Opt. 016)

2 5183-4184 1 CNTR TOUCH PANEL (Opt. 016)

3 1400-3156 2 SADDLE EDGE

4 E5070-61657 1 FLAT CABLE ASSEMBLY (Opt. 016)

5 E5062-00603 1 COVER
