92 Chapter 4
Troubleshooting
No Display troubleshooting
No Display troubleshooting
If the E5061A/E5062A displays nothing despite it is powered from proper ac power line,
isolate the failure in accordance with the procedure shown in Figure 4-3.
Connect the keyboard to the E5061A/E5062A rear panel connector, turn the power on and
start trouble isolation. The methods of trouble isolation are described in the procedural step
1 to 6.

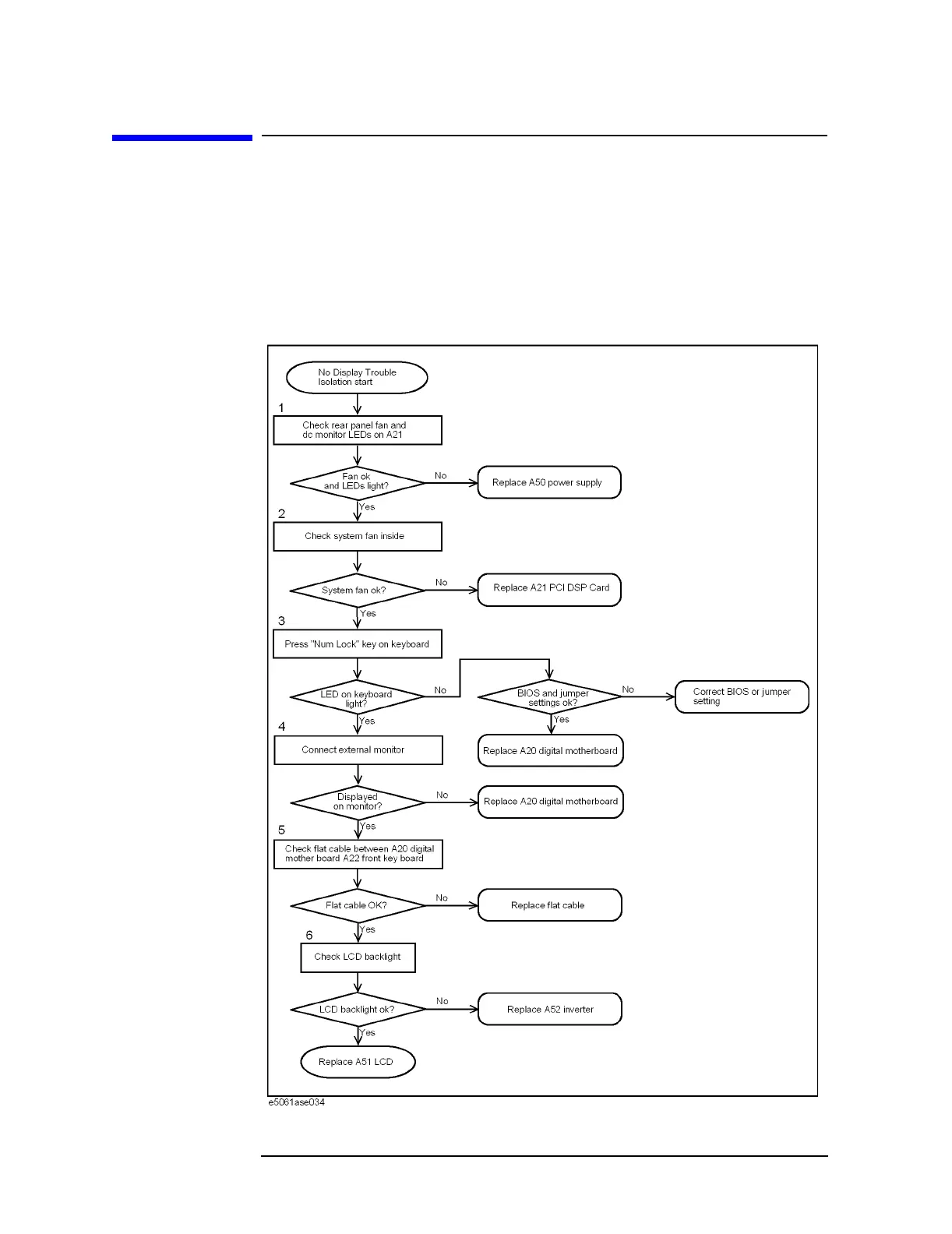

Figure 4-3 No display trouble isolation procedure
To Next Page
