Chapter 5 147

Replaceable Parts

Replaceable Parts List

5. Replaceable Parts

A27 HDD Assembly

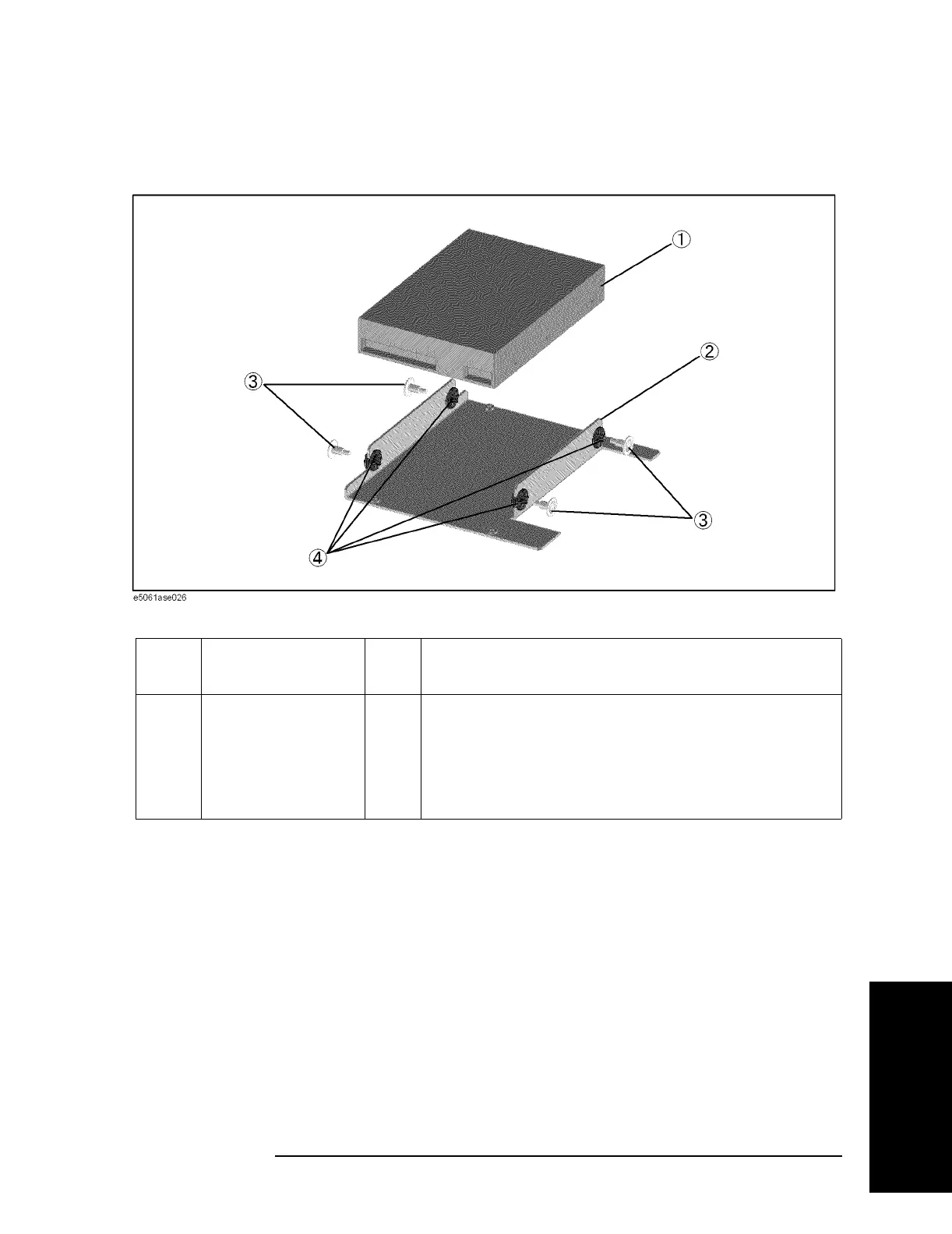

Figure 5-13 A27 HDD Assembly

Table 5-12 A27 HDD Assembly

Ref.

Desig.

Agilent Part Number Qty. Description

1 E5062-83102 1 A27 HDD INSTALLED

2 E5062-01206 1 ANGLE HDD

3 3030-1245 4 SCREW-SHLDR 6-32

4 0400-0356 4 GROMMET-RND
