Chapter 5 155

Replaceable Parts

Replaceable Parts List

5. Replaceable Parts

Front Assembly (LCD) for E5061A : MY44101901 and above, E5062A

: MY44102843 and above

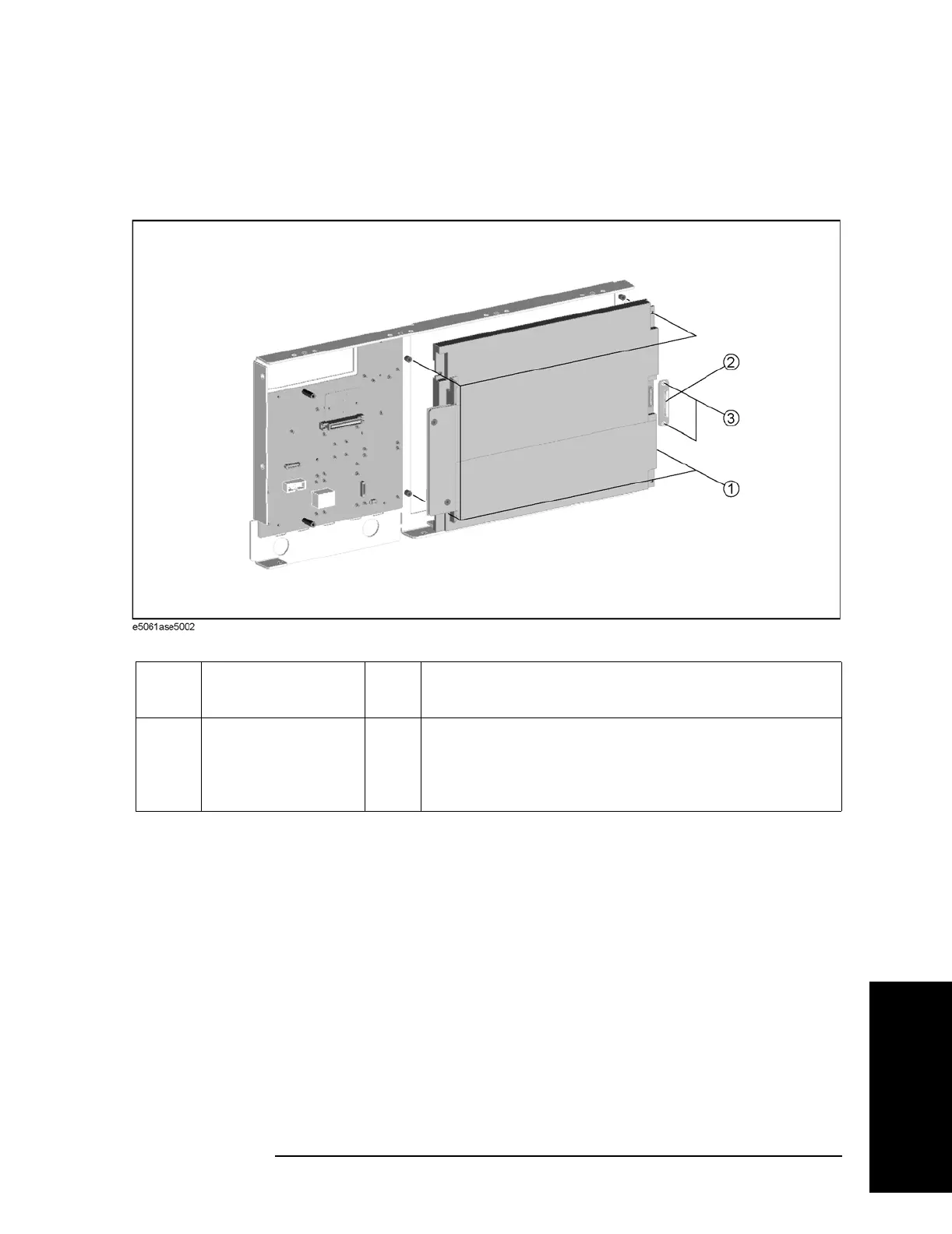

Figure 5-21 Front Assembly (LCD)

Table 5-20 Front Assembly (LCD)

Ref.

Desig.

Agilent Part Number Qty. Description

1 0515-1402 4 SCREW-MACH M3.5 x L8 PN T15

2 E5070-66531 1 LCD ADAPTER

3 5188-4418 2 SELF-TAPPING SCREW M2-L4
