72 Agilent 1100 Series Fraction Collectors User’s Guide
3 Repairing the Fraction Collector
Simple Repairs

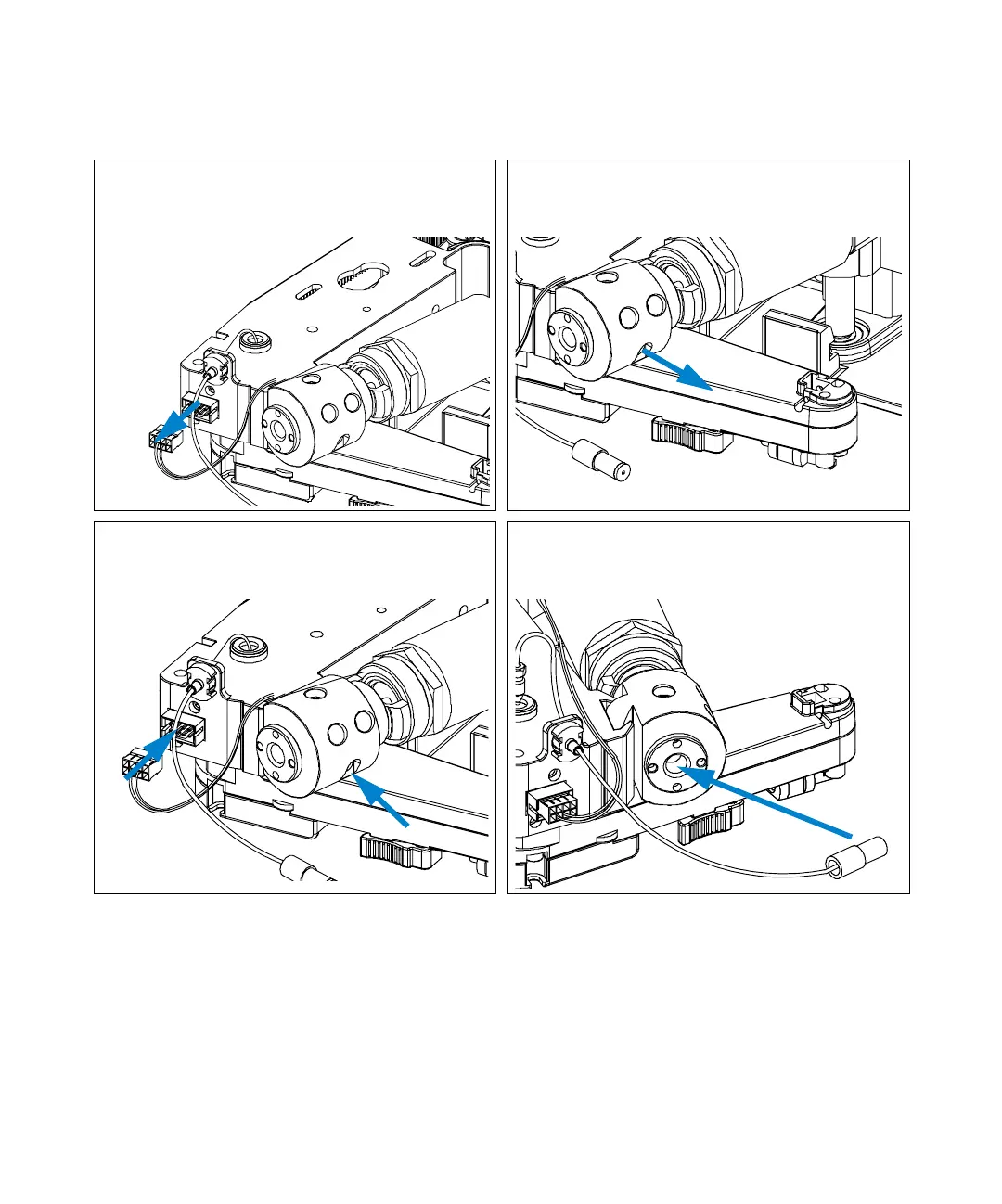

4 Disconnect the power cable of the diverter
valve from the connector on the front of the
z-arm.
5 Using the 2 mm hex key loosen the holding
screw of the diverter valve and remove the
diverter valve from the z-arm.
6 Install the new diverter valve to the z-arm
with its holding screw. Plug in the new
diverter valve power cable to the z-arm.
7 Install the valve to needle tubing at the new
diverter valve.
2
1
