88 Agilent 1100 Series Fraction Collectors User’s Guide
4 Parts and Materials
Transport Unit Assembly (Analytical Scale)
Transport Unit Assembly
(Analytical Scale)
Tabl e 17 Transport Unit Assembly (Analytical Scale)
Item Description Part Number
1 Transport unit assembly (analytical scale),
includes items 2 and 4
G1364-60019
2a, b Tubing - diverter valve to needle, 0.25 mm ID G1364-68712
3 Diverter valve assembly G1364-61901
4 Needle carrier assembly analytical scale G1367-60012
5 Needle assembly analytical scale (50mm needle)
Needle assembly analytical scale (20mm needle)
G1367-87200
G1364-87202
6 Wellplate adapter G1364-23203

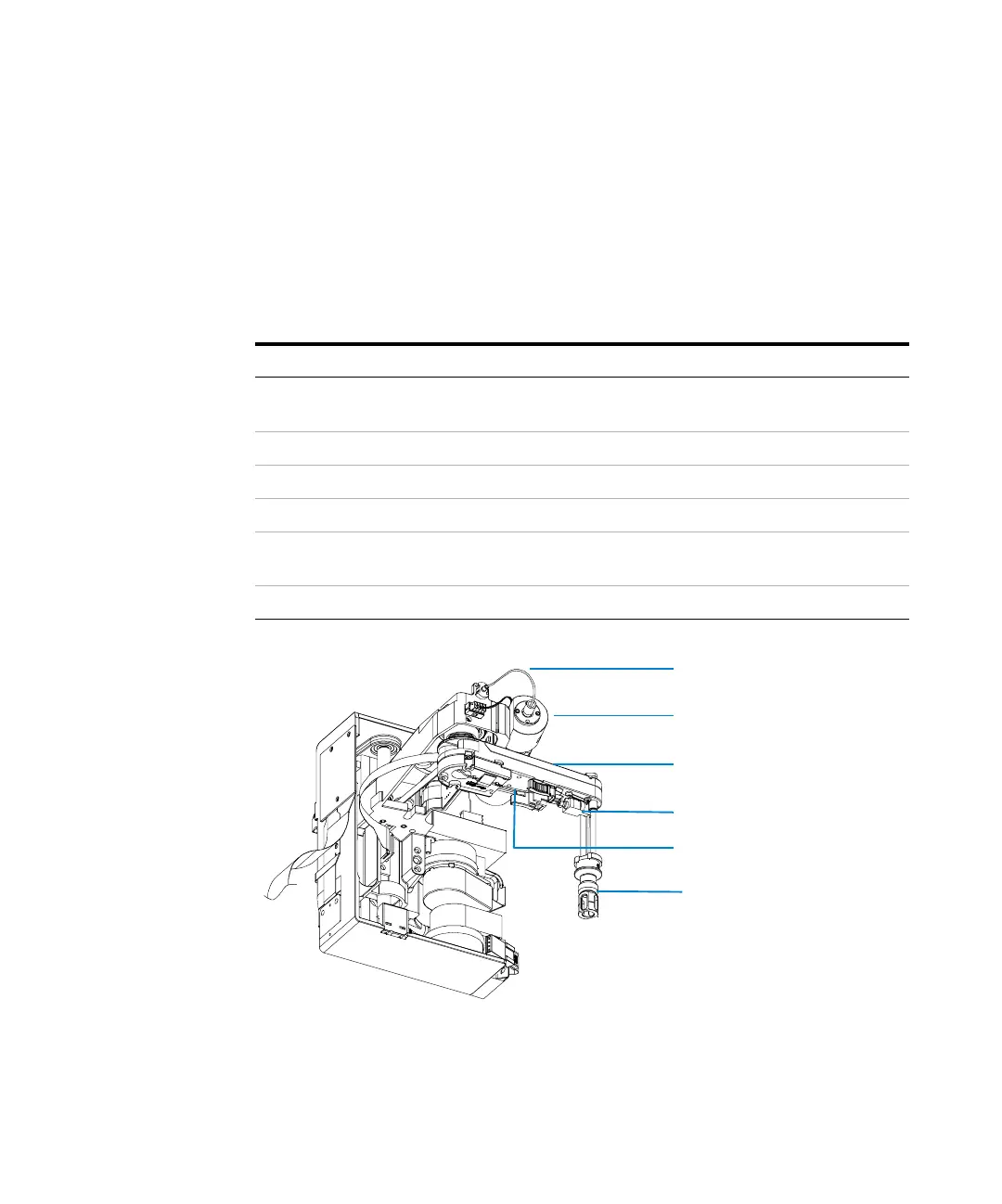

Figure 26 Transport Unit Assembly (Analytical Scale), partly displayed
2a
3
2b
4
5
6
