Parts and Materials 4
Transport Unit Assembly (Preparative Scale)
Transport Unit Assembly
(Preparative Scale)
Tabl e 16 Transport Unit Assembly (Preparative Scale)
Item Description Part Number
1Transport Unit Assembly (Preparative Scale),
includes items 2 and 4
G1364-60018
2a, b Tubing - diverter valve to needle, 0.8 mm ID G1364-86711
3 Diverter valve assembly G1364-61901
4 Needle carrier assembly preparative scale G1364-60011
5 Needle assembly preparative scale G1364-87201
6 Delay Calibration Adapter (not shown) G1364-87301

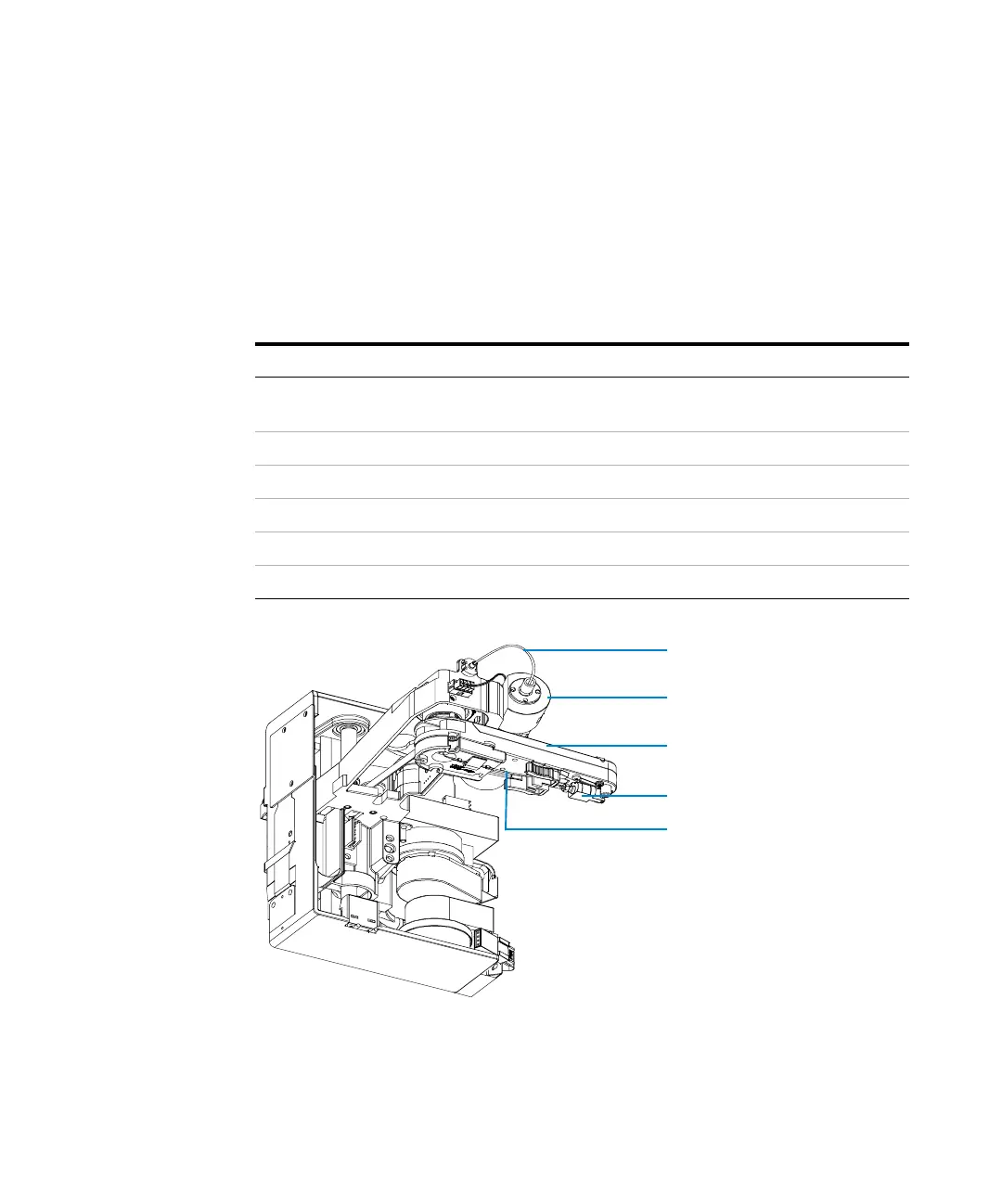

Figure 25 Transport Unit Assembly (Preparative Scale), partly displayed
2a
3
2b
4
5
