4 Parts and Materials
Internal Tray Assembly
Internal Tray Assembly
Tabl e 21 Internal Tray Assembly (Analytical and Preparative Scale)
Item Description Part Number
1 Internal tray assembly analytical scale, includes items 2 – 7
Internal tray assembly preparative scale, includes items 2 – 7
G1364-63114
G1364-63113
2 Screw-seat-adapter 5022-2200
3 Seal funnel (reorder No., pack. of 10) G1364-68730
4a Waste Tubing Kit 0.5T (analytical scale) G1364-86708
4b Waste Tubing Kit 0.8T (preparative scale) G1364-86719
5 Funnel coupler G1364-43201
6 Tray internal Order Item 1
7 Flow delay sensor (not shown) Order Item 1

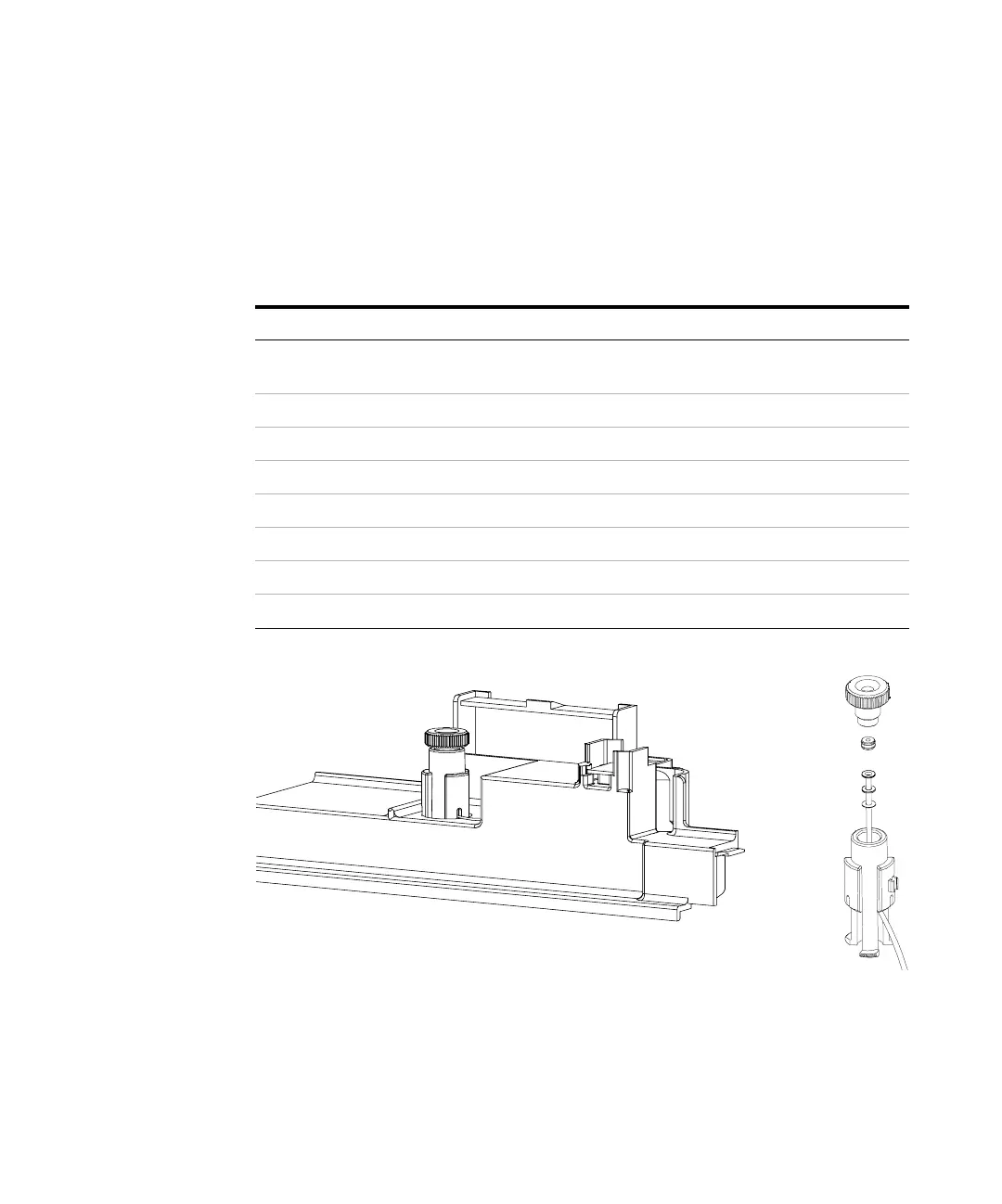

Figure 30 Internal Tray Assembly (Analytical Scale)
2
3
4 a,b
5
6
