160 1200 Series DAD and MWD User Manual
9 Parts and Materials for Maintenance

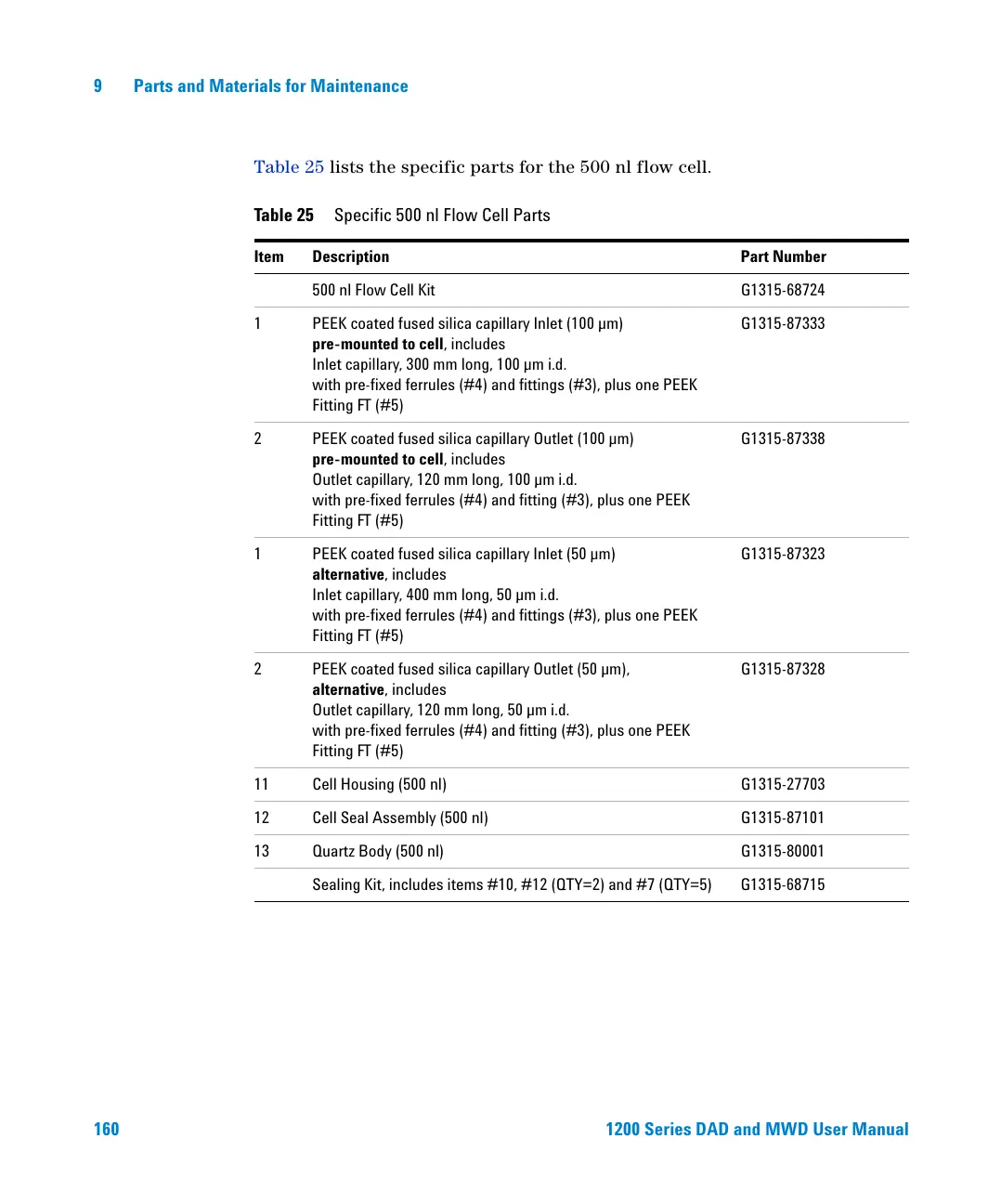

Table 25 lists the specific parts for the 500 nl flow cell.
Tab le 25 Specific 500 nl Flow Cell Parts
Item Description Part Number
500 nl Flow Cell Kit G1315-68724
1 PEEK coated fused silica capillary Inlet (100 µm)
pre-mounted to cell, includes
Inlet capillary, 300 mm long, 100 µm i.d.
with pre-fixed ferrules (#4) and fittings (#3), plus one PEEK
Fitting FT (#5)
G1315-87333
2 PEEK coated fused silica capillary Outlet (100 µm)
pre-mounted to cell, includes
Outlet capillary, 120 mm long, 100 µm i.d.
with pre-fixed ferrules (#4) and fitting (#3), plus one PEEK
Fitting FT (#5)
G1315-87338
1 PEEK coated fused silica capillary Inlet (50 µm)
alternative, includes
Inlet capillary, 400 mm long, 50 µm i.d.
with pre-fixed ferrules (#4) and fittings (#3), plus one PEEK
Fitting FT (#5)
G1315-87323
2 PEEK coated fused silica capillary Outlet (50 µm),
alternative, includes
Outlet capillary, 120 mm long, 50 µm i.d.
with pre-fixed ferrules (#4) and fitting (#3), plus one PEEK
Fitting FT (#5)
G1315-87328
11 Cell Housing (500 nl) G1315-27703
12 Cell Seal Assembly (500 nl) G1315-87101
13 Quartz Body (500 nl) G1315-80001
Sealing Kit, includes items #10, #12 (QTY=2) and #7 (QTY=5) G1315-68715
