1200 Series DAD and MWD User Manual 161
Parts and Materials for Maintenance 9

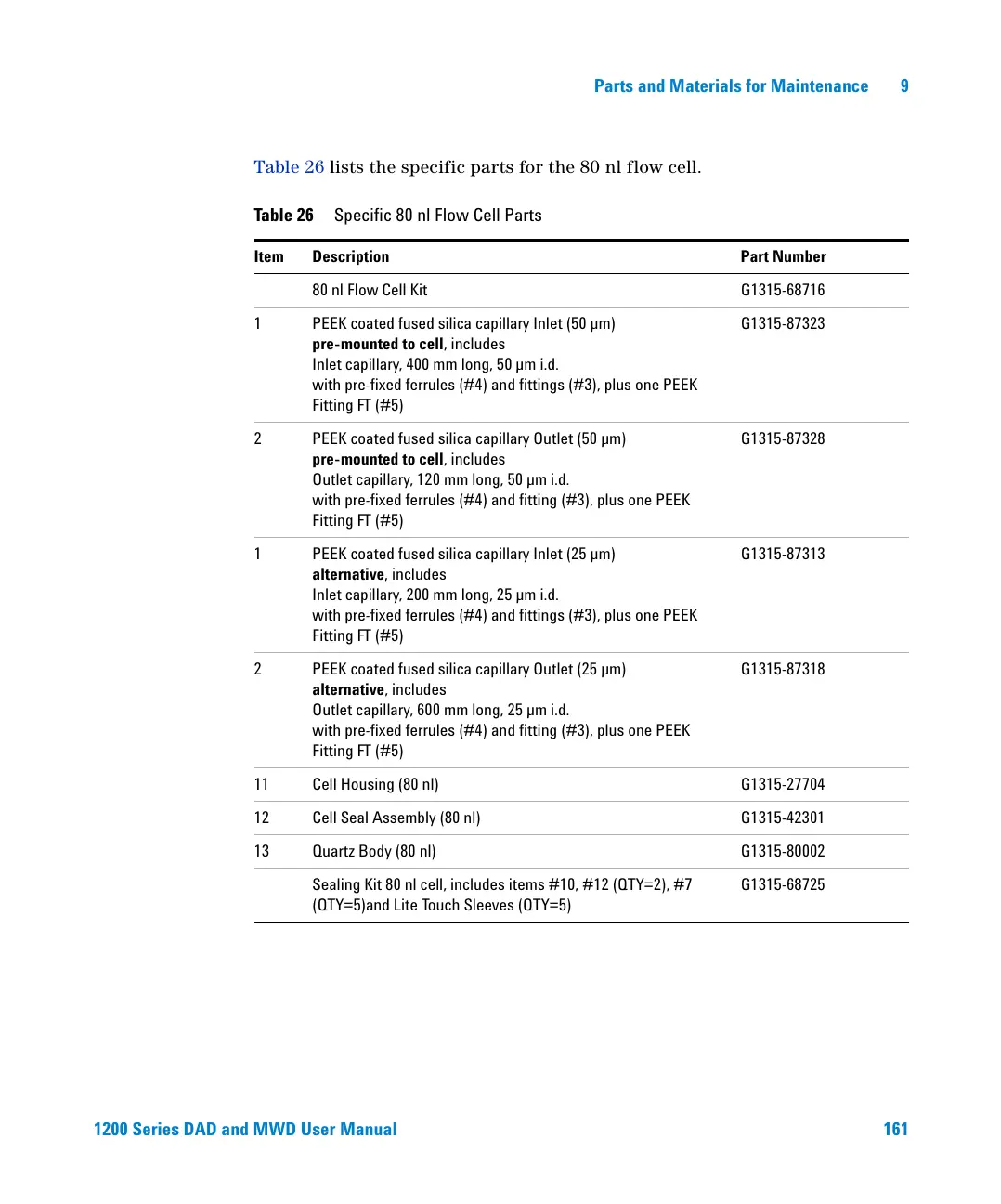

Table 26 lists the specific parts for the 80 nl flow cell.
Tab le 26 Specific 80 nl Flow Cell Parts
Item Description Part Number
80 nl Flow Cell Kit G1315-68716
1 PEEK coated fused silica capillary Inlet (50 µm)
pre-mounted to cell, includes
Inlet capillary, 400 mm long, 50 µm i.d.
with pre-fixed ferrules (#4) and fittings (#3), plus one PEEK
Fitting FT (#5)
G1315-87323
2 PEEK coated fused silica capillary Outlet (50 µm)
pre-mounted to cell, includes
Outlet capillary, 120 mm long, 50 µm i.d.
with pre-fixed ferrules (#4) and fitting (#3), plus one PEEK
Fitting FT (#5)
G1315-87328
1 PEEK coated fused silica capillary Inlet (25 µm)
alternative, includes
Inlet capillary, 200 mm long, 25 µm i.d.
with pre-fixed ferrules (#4) and fittings (#3), plus one PEEK
Fitting FT (#5)
G1315-87313
2 PEEK coated fused silica capillary Outlet (25 µm)
alternative, includes
Outlet capillary, 600 mm long, 25 µm i.d.
with pre-fixed ferrules (#4) and fitting (#3), plus one PEEK
Fitting FT (#5)
G1315-87318
11 Cell Housing (80 nl) G1315-27704
12 Cell Seal Assembly (80 nl) G1315-42301
13 Quartz Body (80 nl) G1315-80002
Sealing Kit 80 nl cell, includes items #10, #12 (QTY=2), #7
(QTY=5)and Lite Touch Sleeves (QTY=5)
G1315-68725
