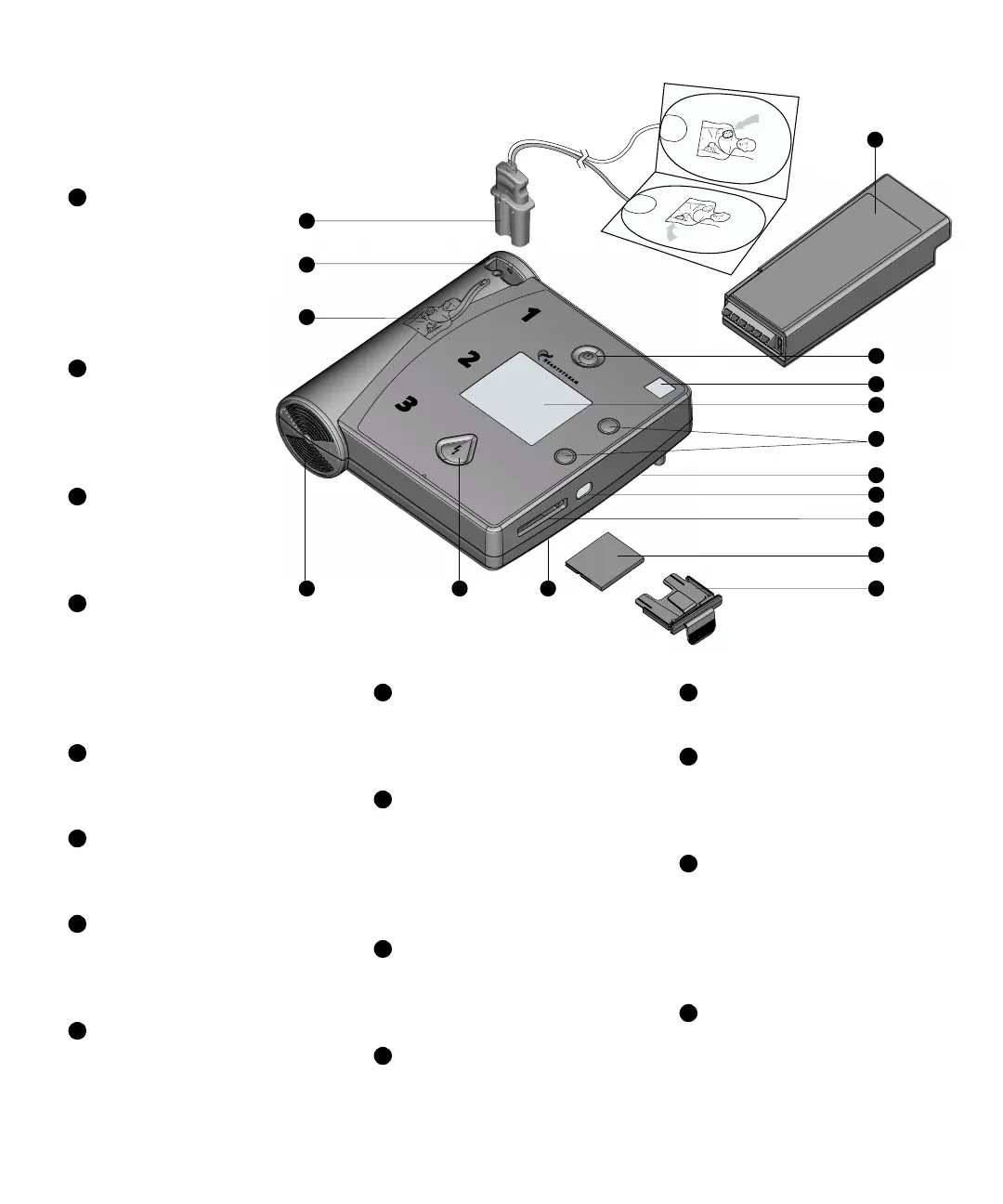

The HEARTSTREAM
FR2 AED
Clockwise from top right.
Battery. Disposable
battery pack used to
power the H
EARTSTREAM
FR2. (Check local
regulations for disposal
and recycling
requirements.)
On/Off button. turns
on the FR2 and starts
voice and screen prompts.
Second press turns off the
FR2.
Status Indicator.
This shows you the
readiness status of the
H
EARTSTREAM FR2.
Display screen.
Displays text prompts and
incident data. The
H
EARTSTREAM FR2
M3860A screen also displays the
patient’s ECG.
Option buttons. Adjust the
contrast of the screen display and
control special functions.
Beeper port. Broadcasts alert
beeps when required. It is located
under the right edge of the FR2.
Infrared (IR) communications
port. A special lens, or “eye,” used to
transfer data directly to or from
another device.
Data card port. Receptacle for
data card tray.
Data card (optional). Used to
store and review information about the
incident, including ECG and optional
voice recording.
Data card tray. Special sleeve
that holds the data card and fits into
the data card port to help seal the FR2
against fluids. The tray should be kept
installed in the FR2 even if no data
card is used.
Microphone. Used optionally to
record surrounding audio during an
incident. It is located under the right
edge of the FR2.
Shock button. Controls shock
delivery. The button flashes when the
H
EARTSTREAM FR2 is ready to deliver
a shock.
Speaker. Amplifies voice
prompts during use of the FR2.
Pads placement diagram.
Illustrates correct placement of pads.
Diagrams are also shown on the back
of the defibrillation pads.
Defibrillator pads connector
port. Receptacle for connector of the
defibrillation pads cable. An adjacent
LED light flashes to show socket
location and is covered when
connector is inserted.
Defibrillator pads assembly.
Self-adhesive pads with attached cable
and connector.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
L
C
I
J
N
P
K
M
B
F
A
H
D
G
E
O
