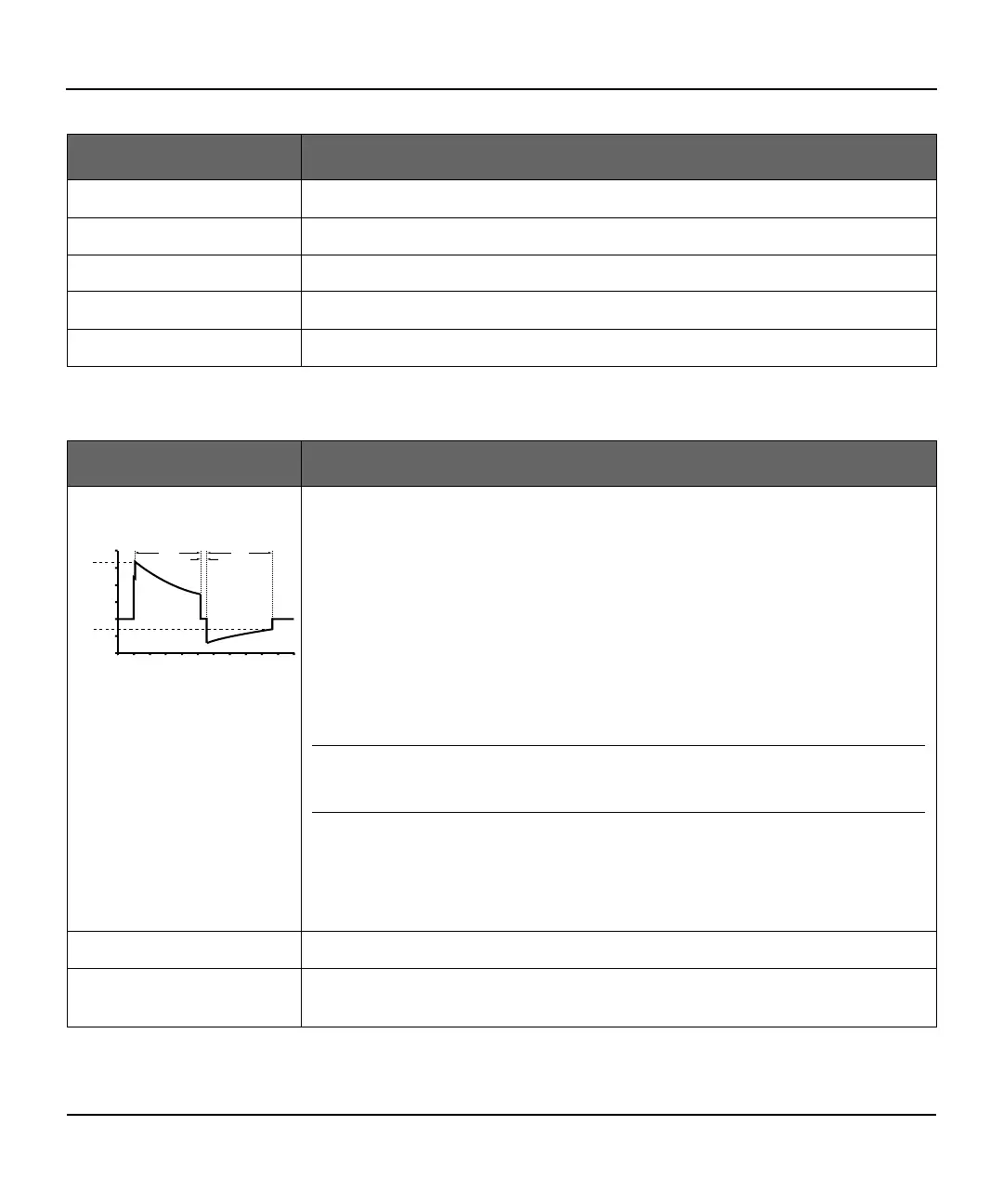

HEARTSTREAM FR2 AED Specifications
B-2
Defibrillator
Sealing With data card tray and battery installed, meets IEC 529 class IP54.
ESD Meets EN 61000-4-2:1998 Severity Level 4.
EMI (Radiated) Meets EN 60601-1-2 limits (1993), method EN 55011:1998 Group 1 Level B.
EMI (Immunity) Meets EN 60601-1-2 limits (1993), method EN 61000-4-3:1998 Level 2.
Aircraft Method Meets RTCA/DO-160D:1997 Section 21 (Category M - Charging)
CATEGORY NOMINAL SPECIFICATIONS
CATEGORY NOMINAL SPECIFICATIONS
Waveform Biphasic truncated exponential.
Waveform parameters are automatically adjusted as a function of patient
defibrillation impedance.
In the diagram at left, A is the duration of phase 1 and B is the duration of phase 2
of the waveform, C is the interphase delay, V
p
is the peak voltage, and V
f
the final
voltage.
The H
EARTSTREAM FR2 delivers shocks to load impedances from 25 to 180 ohms.
The duration of each phase of the waveform is dynamically adjusted based on
delivered charge, in order to compensate for patient impedance variations, as
shown in the following examples:
Load Phase 1 Phase 2 Delivered
Resistance (ohms) Duration (ms) Duration (ms) Energy (J)
25 2.8 2.8 140
50 4.09 4.09 150
100 9.0 6.0 157
125 12.0 8.0 161
150 12.0 8.0 157
Energy 150 J nominal into a 50 ohm load.
Charge Control Controlled by Patient Analysis System for semi-automatic operation. Can be
programmed for manual initiation using Advanced Mode of the M3860A.
