Agilent Technologies MSD 5977B Series User Manual

7 General Maintenance
To Clean an EI XTR, SS, or Inert Source
206 5977B Series MSD Operating Manual

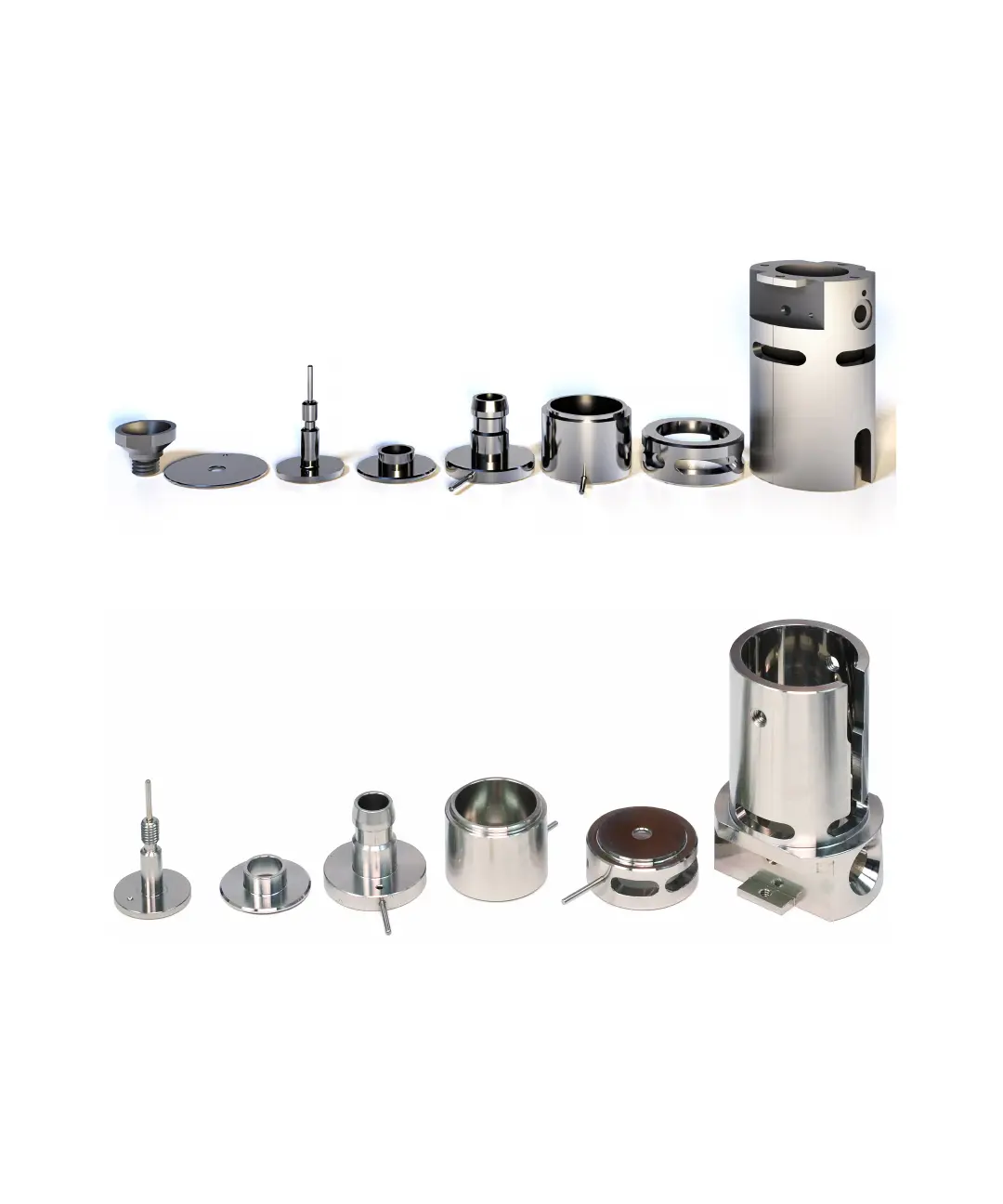

Figure 66. Source parts to be cleaned
Ion focus
lens
Entrance
lens
Drawout
cylinder
Interface
socket
Source body
EI SS or EI Inert source parts to be cleaned
EI XTR source parts to be cleaned
Repeller Repeller
block insert
Entrance
lens
Ion focus
lens
Extractor lens Source body
Repeller
block insert
Drawout
plate
Repeller
