8CI Maintenance
To Remove the CI Source Radiator
5977B Series MSD Operating Manual 231
1 Remove the CI source. (See“To Remove the CI Source” on page 235.)
2 Disconnect the green ground wire from the radiator. (See Figure 75.)
3 Use a T-10 Torx screwdriver to loosen the two retained screws that secure
the radiator to the analyzer and place the radiator in its storage container.

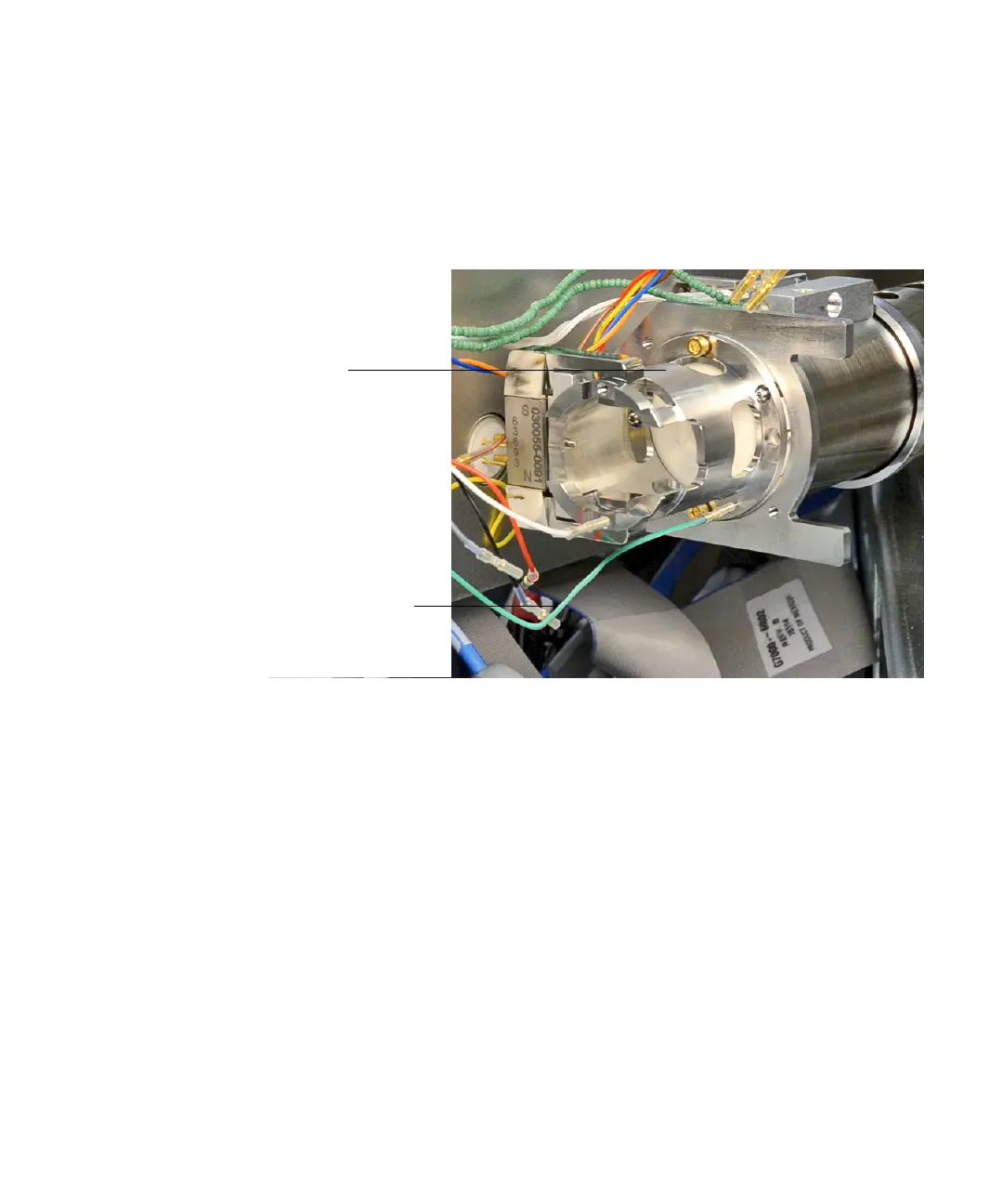

Figure 75 CI Source radiator
Green ground wire
Radiator
