To Disassemble the CI Source
5977B Series MSD Operating Manual 239

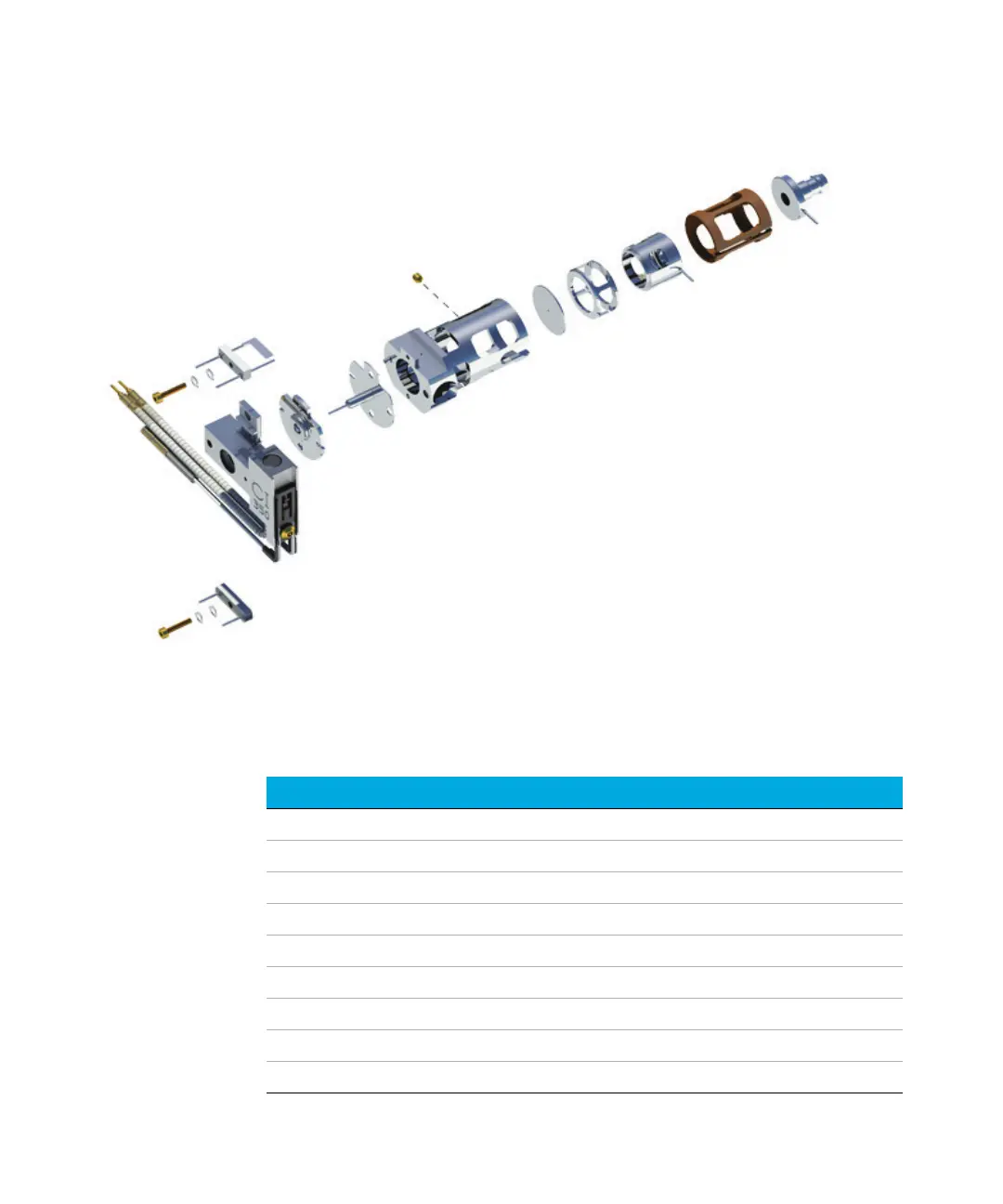

Figure 78. Disassembling the CI source
1
13
12
2
3
4
5
6
7
8
9
11
10
2
15
14
15
14
Table 24 Parts list for CI source (Figure 78)
Item Description Part number
1 Set screw G1999-20022
2 Filament screw G1999-20021
3 CI repeller insulator G1999-20433
4 CI lens insulator G3170-20540
5 CI drawout cylinder G1999-20444
6 CI drawout plate G1999-20446
7 CI source heater block assembly G3870-60415
8 Entrance lens G3170-20126
9 CI source body G3170-20430
