Introduction
32 NovoCyte Quanteon Flow Cytometer Operator's Guide

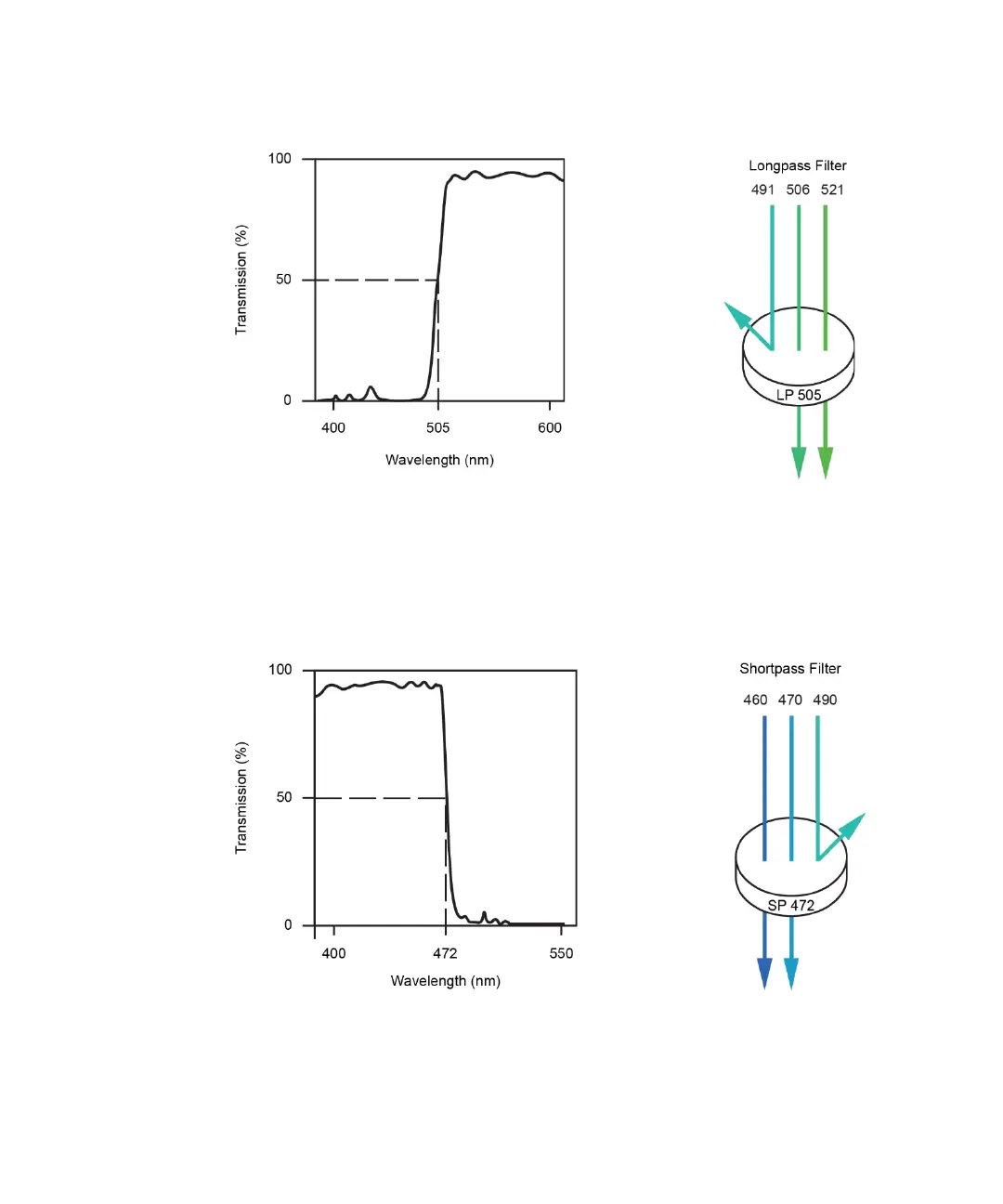

Figure 3. 505 nm Longpass Filter
• Shortpass Filters
Shortpass filters (SP) pass light with a shorter wavelength than the cutoff
wavelength. For example, a 472 nm shortpass filter allows wavelengths shorter
than 472 nm to pass through it and either absorbs or reflects wavelengths longer
than 472 nm as shown in Figure 4.
Figure 4. 472 nm Shortpass Filter
• Bandpass filters
