111 Agilent U1251A/U1252A User’s and Service Guide
2 Making Measurements
Measuring DC voltage

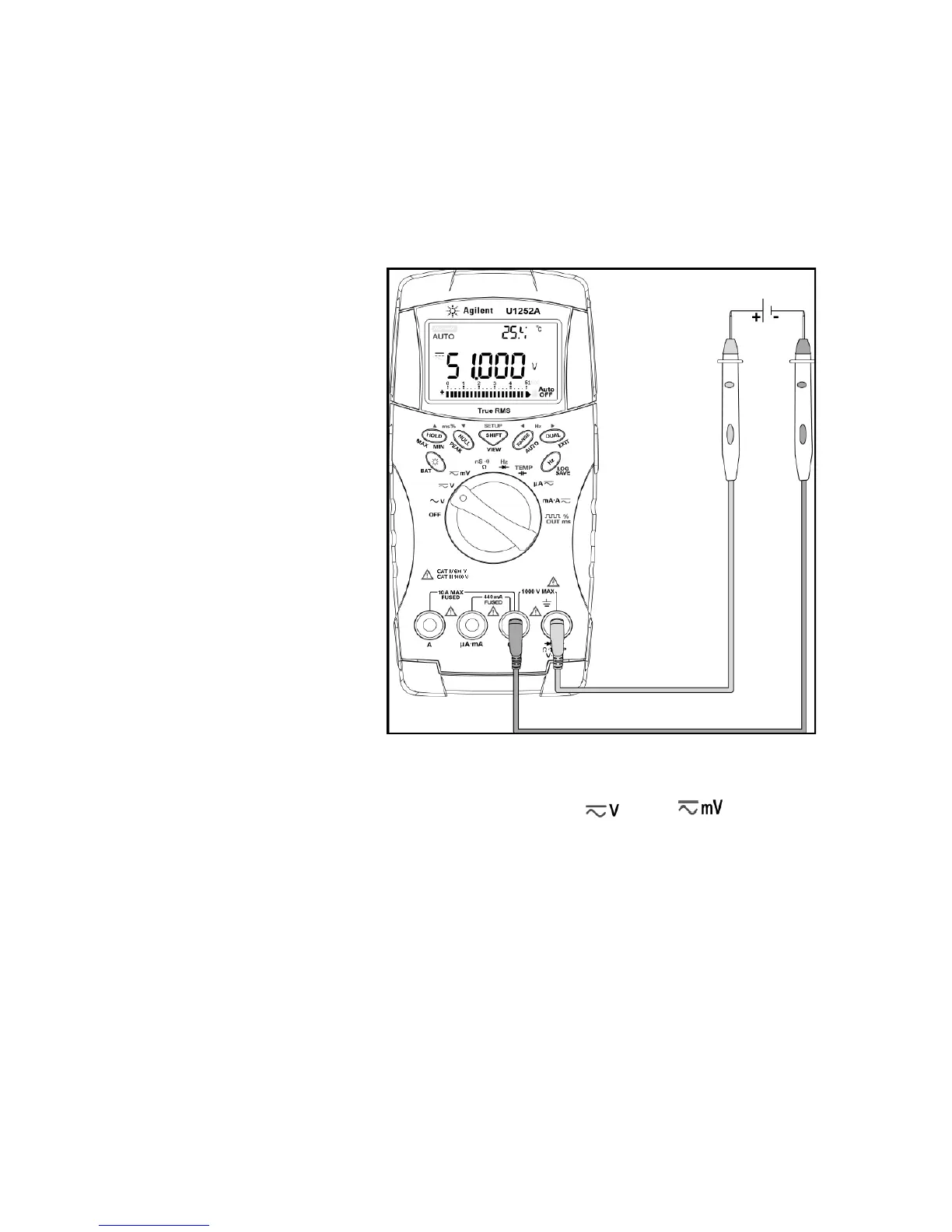

Figure 4 Measuring DC voltage
1 Set the rotary switch to and .
2 Connect the red and black test leads to the input
terminals V.mV and COM respectively.
3 Probe the test points and read the display.
MAX
