2 Making Measurements
Measuring Resistance, Conductance and Testing Continuity
1 Set the rotary switch to Ω nS.
2 Connect the red and black test leads to the input
terminals Ω and COM respectively.
3 Probe the test points (by shunting the resistor) and read
the display.

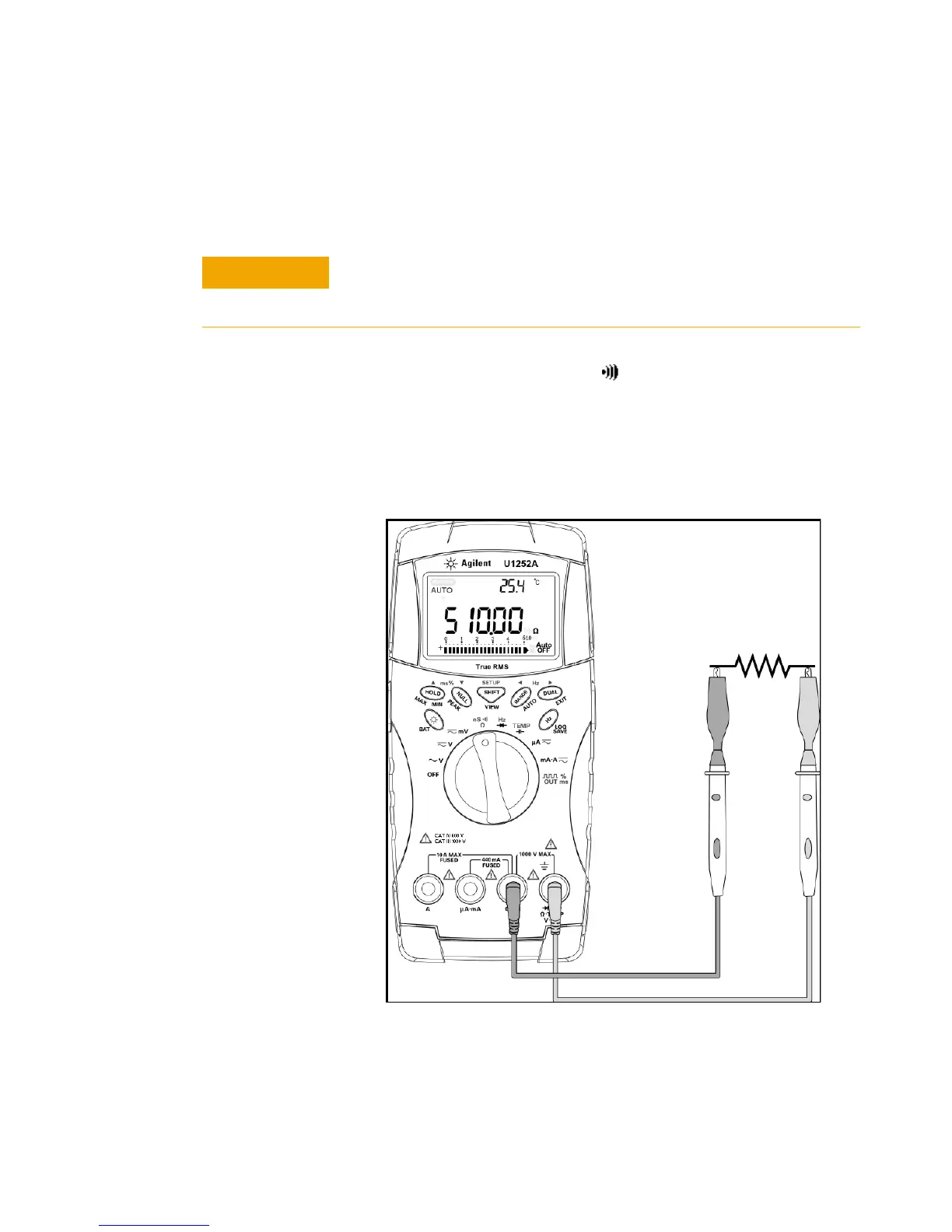

Figure 9 Measuring resistance
Disconnect the circuit power and discharge all high-voltage capacitors
before measuring the resistance to any prevent possible damage to the
meter or the device under test.
