94 Agilent U1251A/U1252A User’s and Service Guide
4 Changing The Default Setting
Setting % Scale Readout
This setting converts the DC current measuring display to %
scale readout — 4- 20 mA or 0- 20 mA as proportional to
0~100%. The 25% scale readout represents DC 8 mA at 4- 20
mA and DC 5 mA at 0- 20 mA.

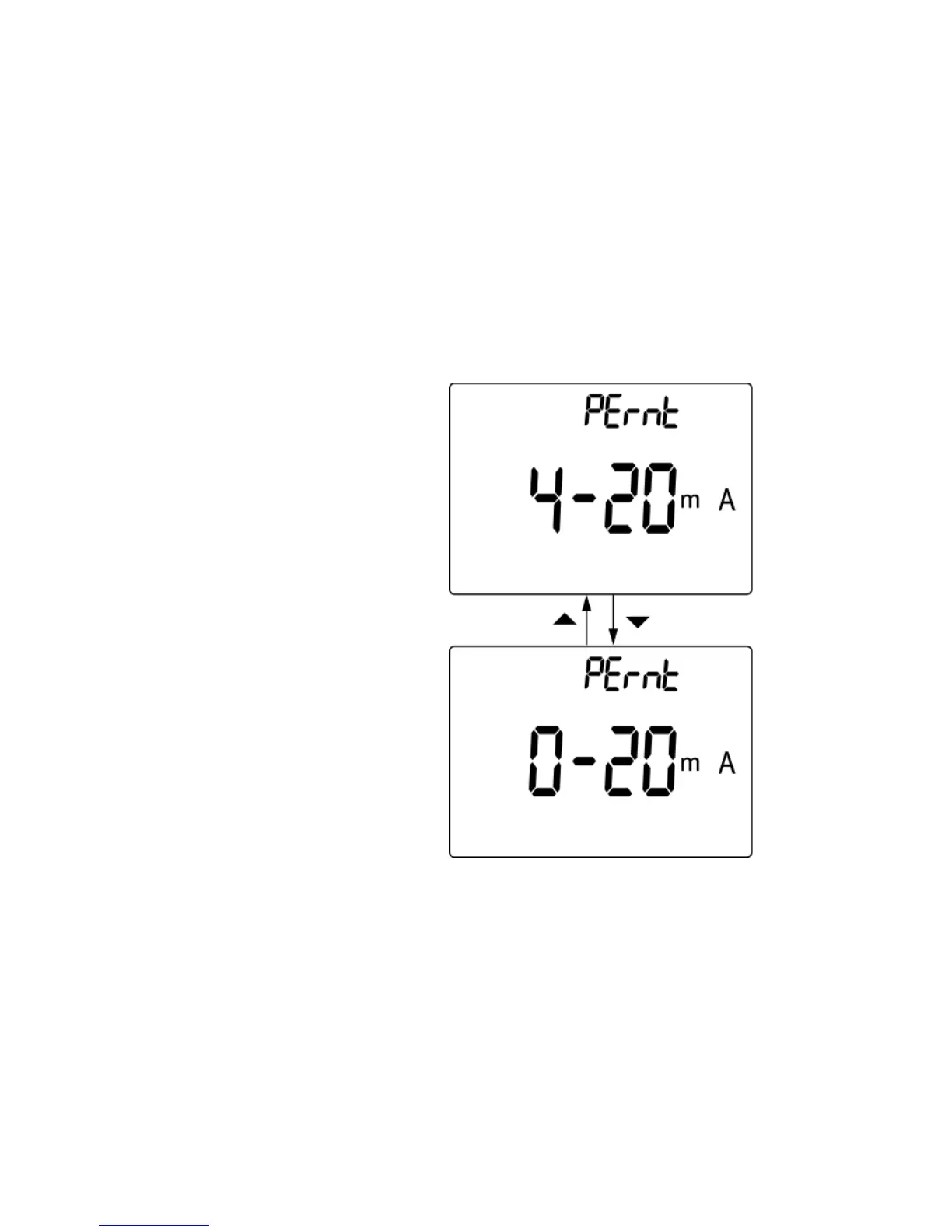

Figure 38 % scale readout setup
