70 Agilent U1251A/U1252A User’s and Service Guide
3 Features and Functions

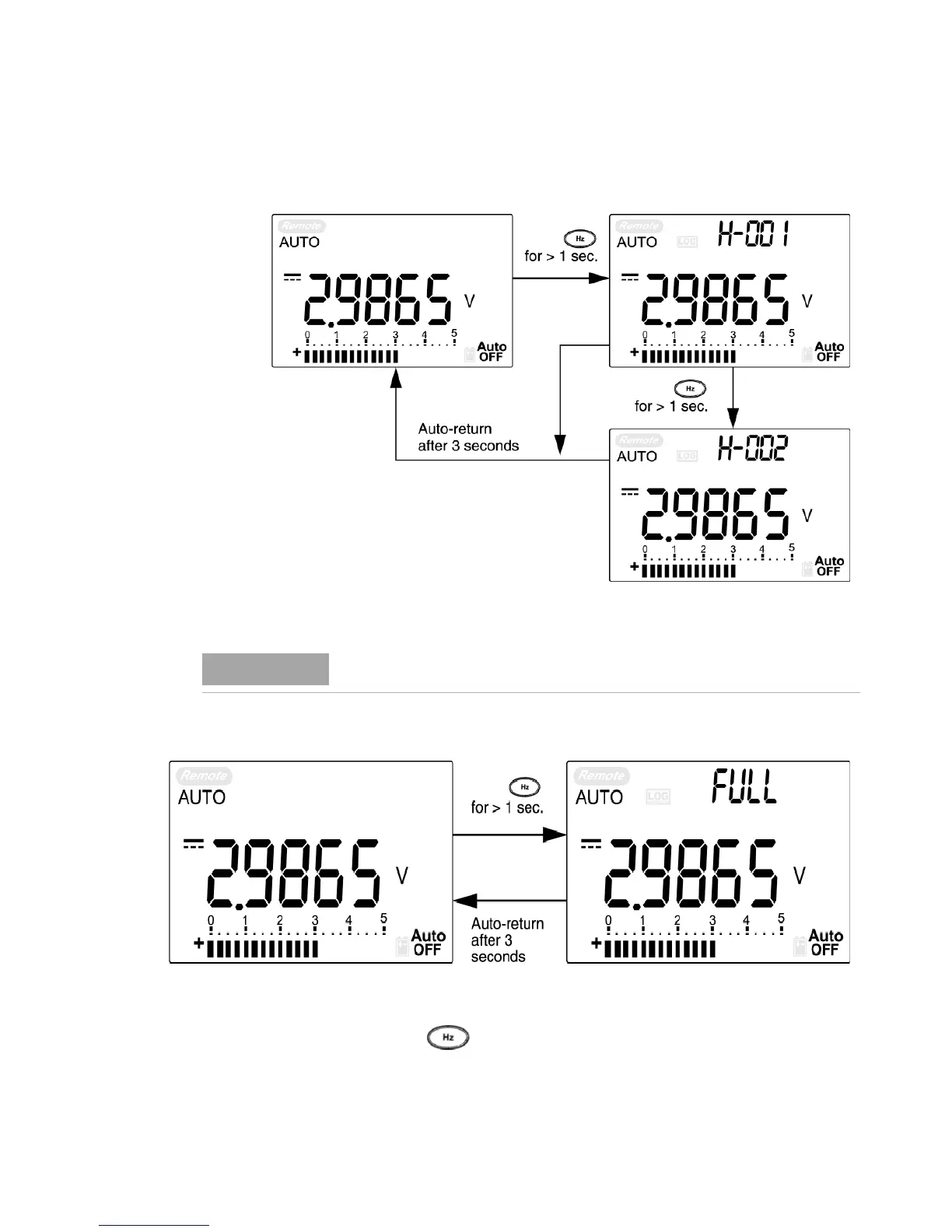

Figure 23 Hand (Manual) logging mode operation
Figure 24 Full Log
3 Press for more than 1 second to exit this mode.
The maximum data that can be stored is 100 entries. When the 100 entries
are filled, the secondary display indicates “FULL”, as shown in Figure 24.
