76 Agilent U1251A/U1252A User’s and Service Guide
3 Features and Functions

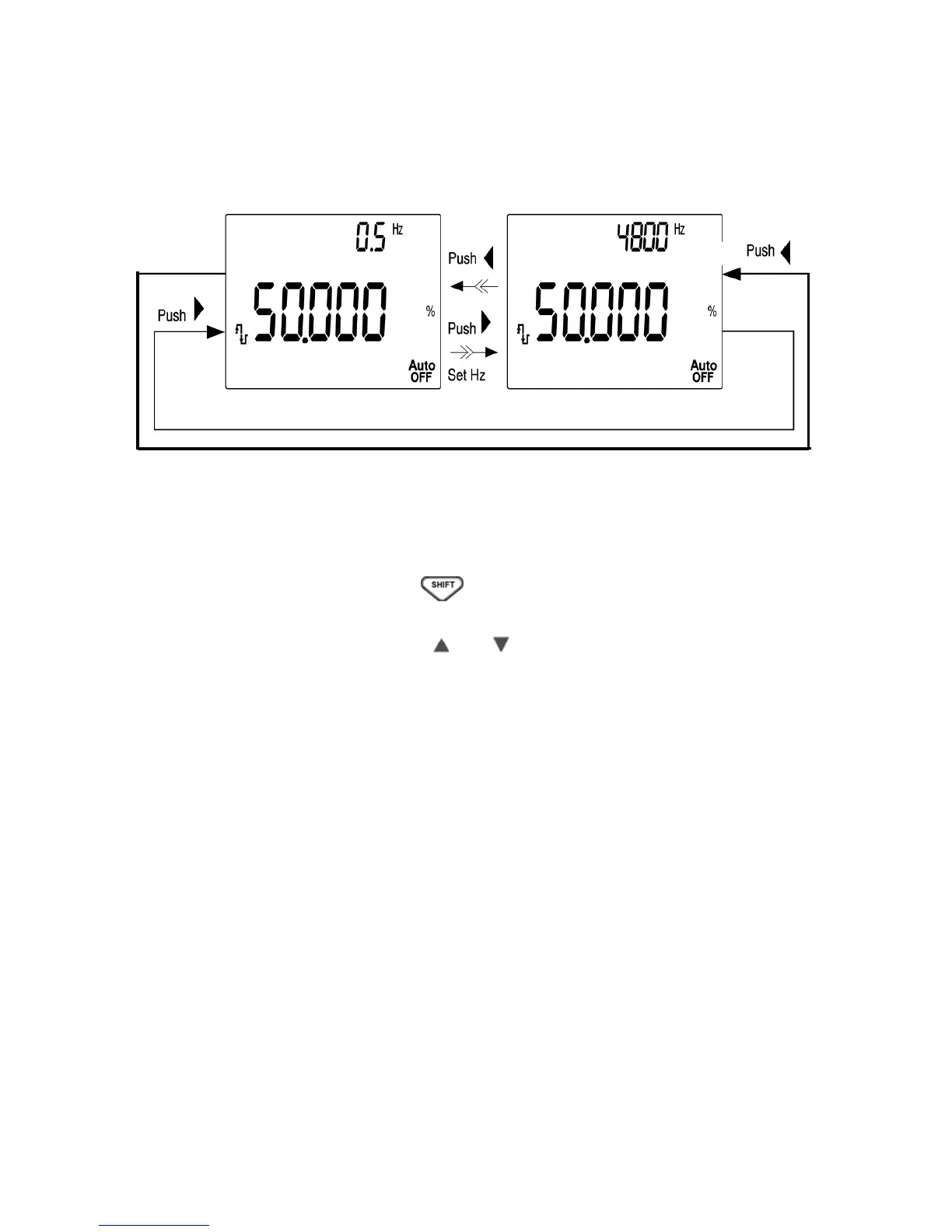

Figure 27 Frequency adjustment for square wave output
5 Press to select the pulse width (%) on the primary
display.
6 Press or to adjust the pulse width. The pulse
width can be set for 256 steps and each step is 1/ (256 x
Frequency). The display range automatically adjusts in the
range of 9.9999~9999.9 ms.
