ahlmann AS 210 - Fuses

S220/S221/S230/S231/Z2004-8
4 Description
1 2 3 4 5 6 7 8 9 10 11 12 13
B
C
A
1 2 3 4 5 6 7 8

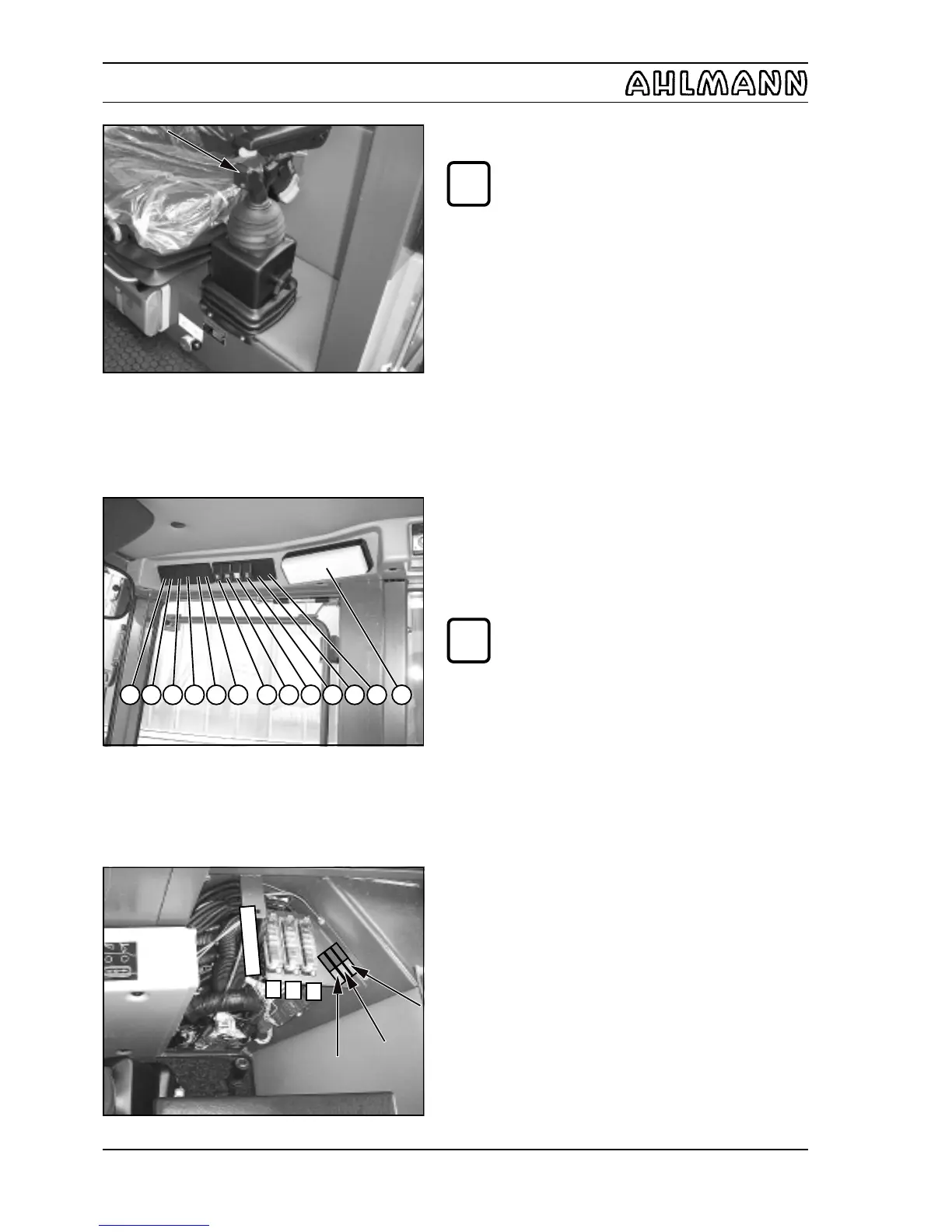

Figure 4-11
Figure 4-12
Figure 4-13
Pilot valve for auxiliary hydraulics (2nd auxiliary hydraulic
circuit) » Optional equipment «
NOTE
If the loader has a 2nd auxiliary hydraulic circuit, the two
buttons (4-9/3) have no function or are missing.
The working movements of the two buttons (4-9/3) (e.g.
opening/closing the multi-purpose bucket – the lock/
unlock attachment working functions in the case of loaders
with bolt locks) are then carried out using the pilot valve
for auxiliary hydraulics (4-11/arrow).
Loaders with bolt locks:
- Hand lever forward: Lock attachment
Close multipurpose bucket
- Hand lever to the rear: Unlock attachment » only in
conjunction with 4-7/1 «
Open the multipurpose bucket.
Loaders with claw locks:
- Hand lever forward: Close multipurpose bucket
- Hand lever to the rear: Open the multipurpose bucket.
Operator's cabin up right (4-12):
1 to 6 not used
7 - Rocker switch for working floodlights
- step 1: front
- step 2: front and rear
8 - Rocker switch for heated rear screen
9 - Rocker switch for 360° light (opt.)
10 - Rocker switch for bucket cushioning (opt.)
11 - not used
12 - Push-button for fan reversal (opt.)
13 - not used
4.9 Fuses
NOTE
Fuses, relays, the turn signal relay, the interval
timer, etc. are located at the right behind the driver’s
seat (4-13). To access them, push the seat to its
frontmost position, tilt the backrest forward and
remove the cover.
Fuse strip A:
1 - Hydraulics 10.0 A
2 - Heater 20.0 A
3 - free
4 - Motor stopper 5.0 A
5 - Oil cooler 5.0 A
6 - Brake lights 5.0 A
7 - Rear window heater 15.0 A
8 - Traction drive 7.5 A
Fuse strip B:
1 - Turn indicator 7.5 A
2 - Windshield wiper/washer 15.0 A
3 - free
4 - Traction drive electronics 3,0 A
5 - Parking light, left 5.0 A
6 - Parking light, right 5.0 A
7 - Diode light
8 - Diode light
Fuse strip C:
1 - Hazard flasher 7.5 A
2 - Warning beacon (opt.), headlamp flasher 15.0 A
3 - 2-pole socket 10.0 A
4 - Cigarette lighter 20.0 A
5 - Interior lighting 5.0 A
6 - Working lights 30.0 A
7 - Dipped beam 7.5 A
8 - High beam 7.5 A
opt. = optional equipment
Fuses air-conditioning system (4-13/arrows) 3 x 20 A
