ahlmann AS 210 - Front Axle; Rear Cardan Shaft

S220/S221/S230/S231/Z2008-14
8 Maintenance
3
1
3
2
1
Figure 8-29
Figure 8-30

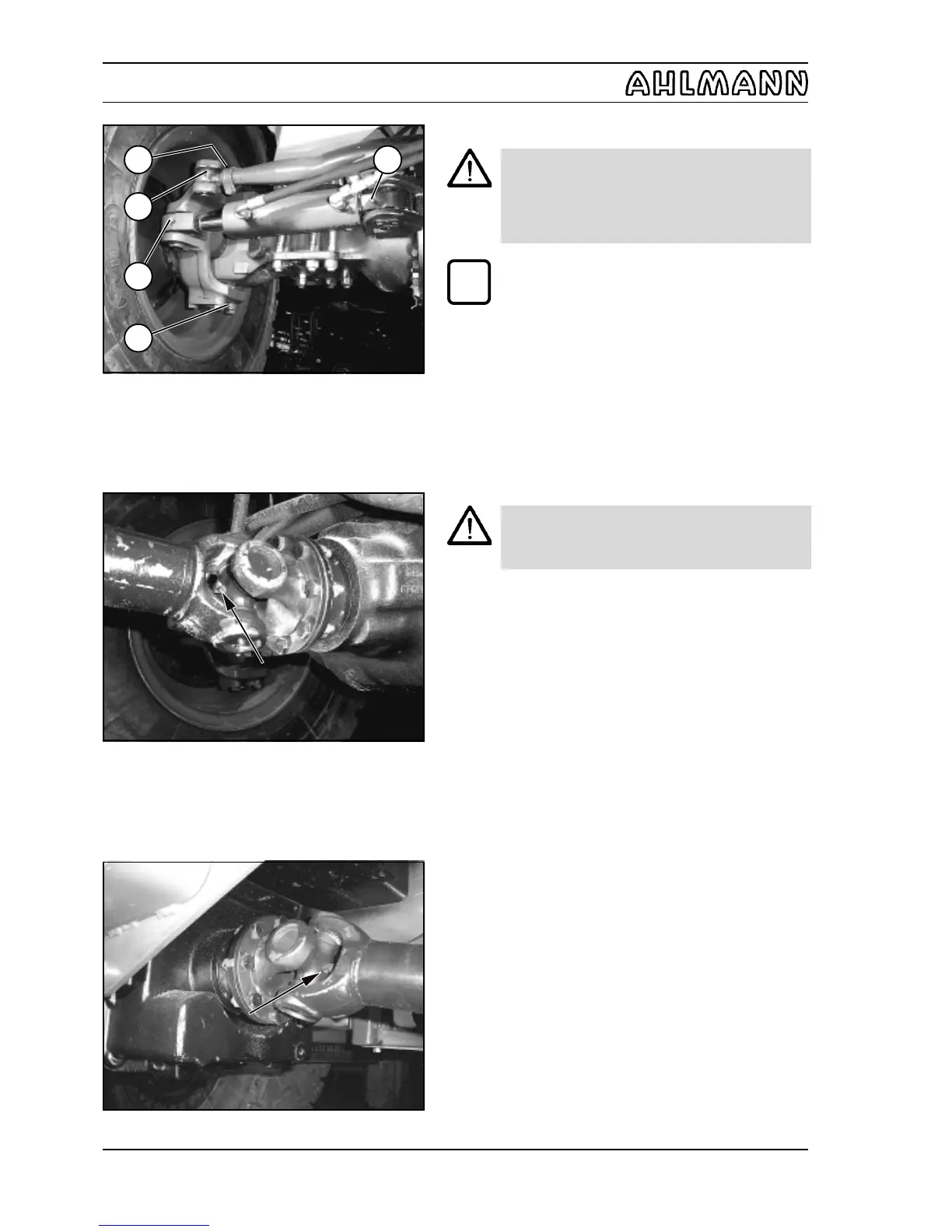

8.2.18.3 Front axle
CAUTION
- The spindle bolts (8-28/1),
- the track rod bearings (8-28/2), and
- the steering cylinder bearings (8-28/3)
must all be lubricated every 50 operating hours.
NOTE
Lubricate the axle spindle bolts (top and bottom),
the track rod bearings and the steering cylinder
bearings on both sides of the axle.
8.2.18.4 Rear cardan shaft
CAUTION
The cardan shaft must be lubricated every 50
operating hours (8-29/arrow and 8-30/arrow).
