ahlmann AS 210 - Bucket Assembly

S220/S221/S230/S231/Z2008-16
8 Maintenance
2
1
2
2
4
3
1
2
1
Figure 8-35
Figure 8-36

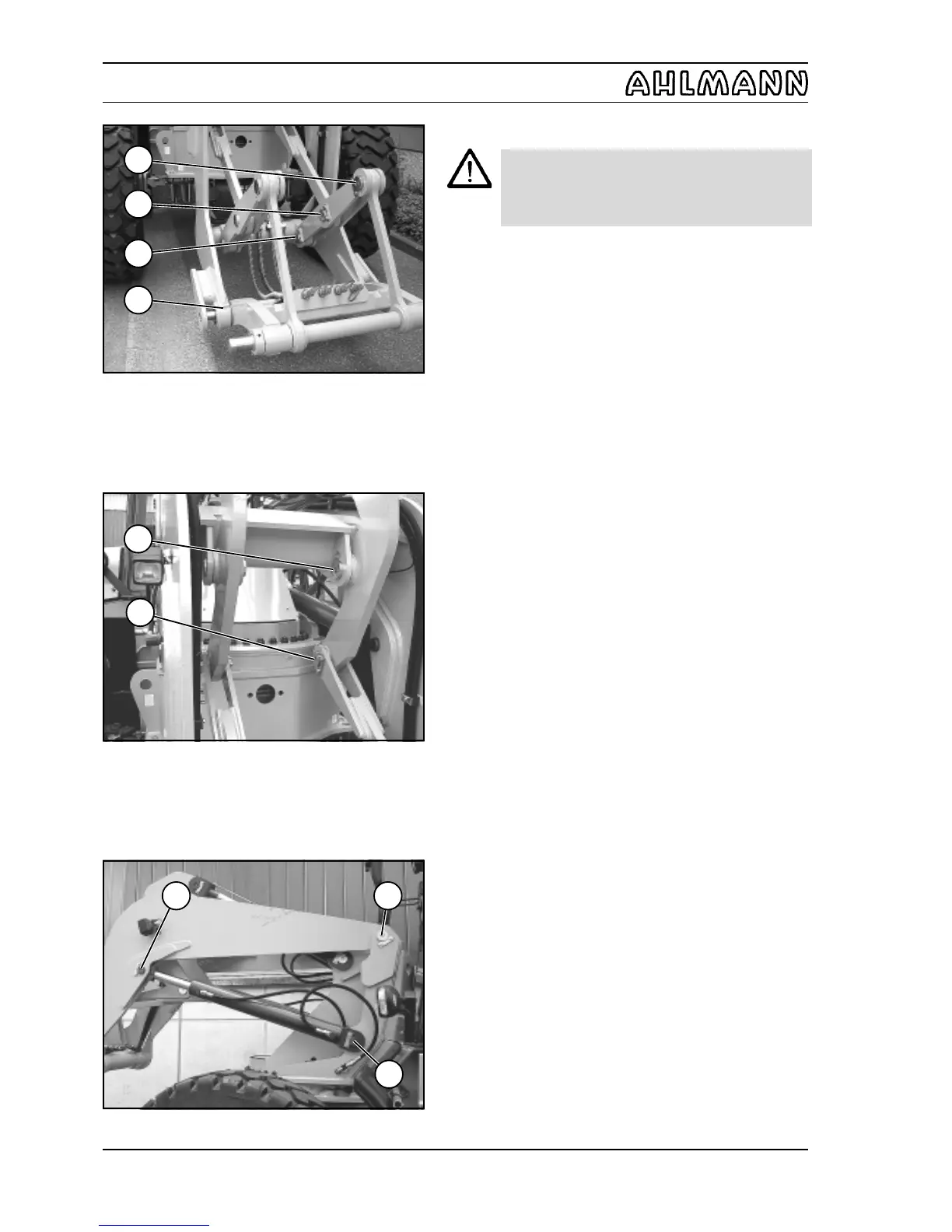

8.2.18.7 Bucket assembly
CAUTION
The support bolts/lubrication points of the bucket
assembly must be lubricated every 10 operating
hours.
2x item 8-34/1 Tip lever / pivot arm
2x item 8-34/2 Pivot arm / reversing rod
2x item 8-34/3 Tip lever / quick-change device
2x item 8-34/4 Bucket assembly / quick-change device
2x Item 8-35/1 Pivot arm / bucket assembly
2x Item 8-35/2 Reversing lever / reversing rod
2x item 8-36/1 Bucket assembly / swivel unit
4x item 8-36/2 Lift cylinder
Figure 8-34
