ahlmann AS 210 - Lubrication Points; Rear Axle; Rear Axle Pivot Bolts

S220/S221/S230/S231/Z200 8-13
Maintenance 8
1
3
3
2
1

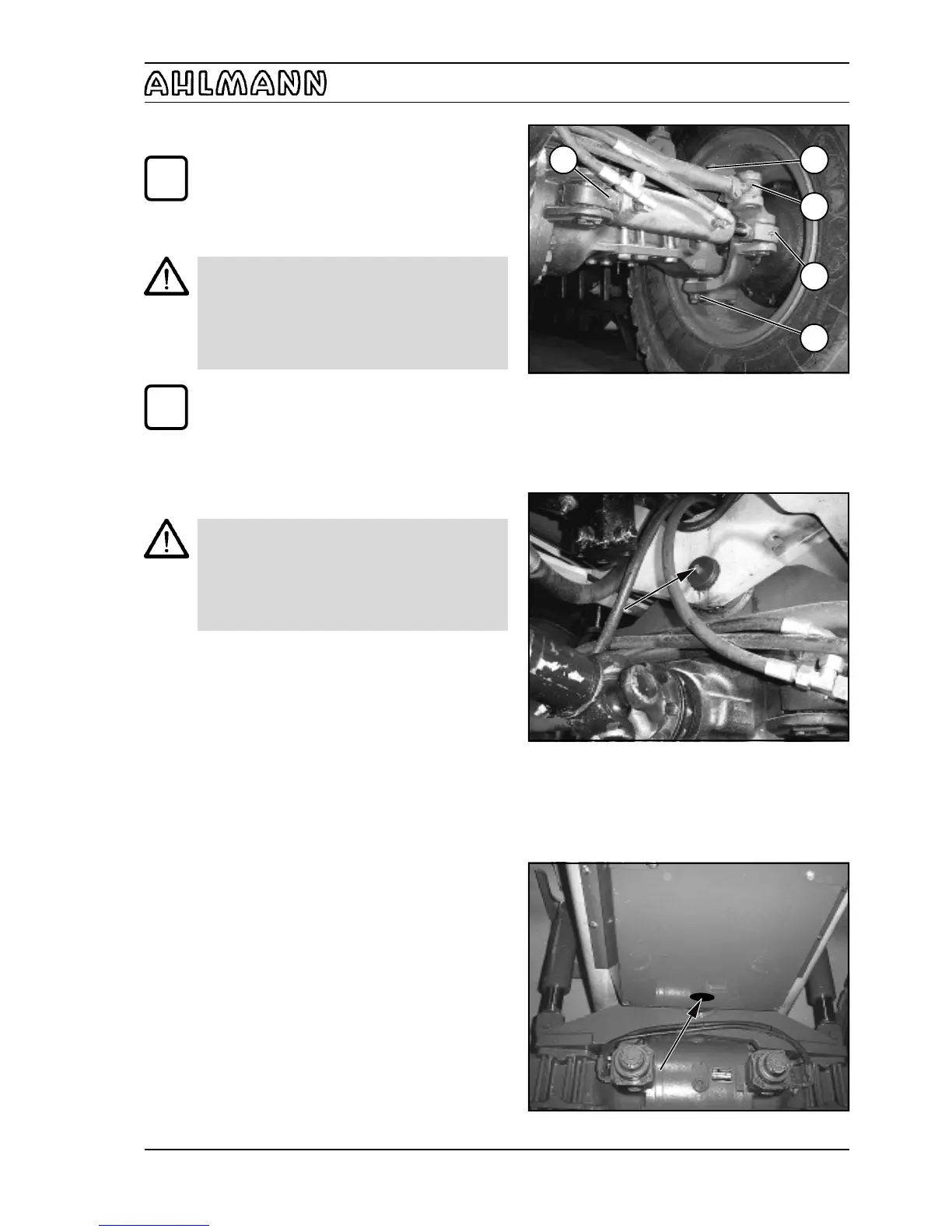

Figure 8-25
Figure 8-26
8.2.18 Lubrication points
NOTE
The lubrication points are marked in red on the
loader.
8.2.18.1 Rear axle
CAUTION
- The spindle bolts (8-25/1),
- the track rod bearings (8-25/2), and
- the steering cylinder bearings (8-25/3)
must all be lubricated every 50 operating
hours.
NOTE
Lubricate the axle spindle bolts (top and bottom),
the track rod bearings and the steering cylinder
bearings on both sides of the axle.
8.2.18.2 Rear axle pivot bolts
CAUTION
- The rear axle pivot bolts (8-26/arrow and 8-27/
arrow ) must be lubricated every 10 operating
hours.
- Release the rear axle from load before
lubricating the rear axle pivot bolts.
Figure 8-27
