ahlmann AS 210 - Replacing the Suction; Return Flow Filter Cartridge

S220/S221/S230/S231/Z200 8-9
Maintenance 8
2
3
4
1
1 2 3 4 2
Figure 8-15
Figure 8-16
(10) Fill oil into the filler neck (8-14/arrow).
CAUTION
For those loaders which are fitted to run with
biodegradable hydraulic oil (ester-based synthetic
hydraulic oil of viscosity class ISO VG 46 VI
> 180 – designation can be found on the hydraulic
oil reservoir and on the dashboard), only this type
of oil may be used for oil changes.
Mineral and biodegradable hydraulic oils must
never be mixed!
Biodegradable hydraulic oil must be changed
every 1000 operating hours.
Changing the oil type from mineral oil to
biodegradable oil must be performed according to
the VDMA 24 569 conversion guidelines.
(11) Check the oil level at the sight glass (8-7/arrow).
(12) Close the filling nozzle.

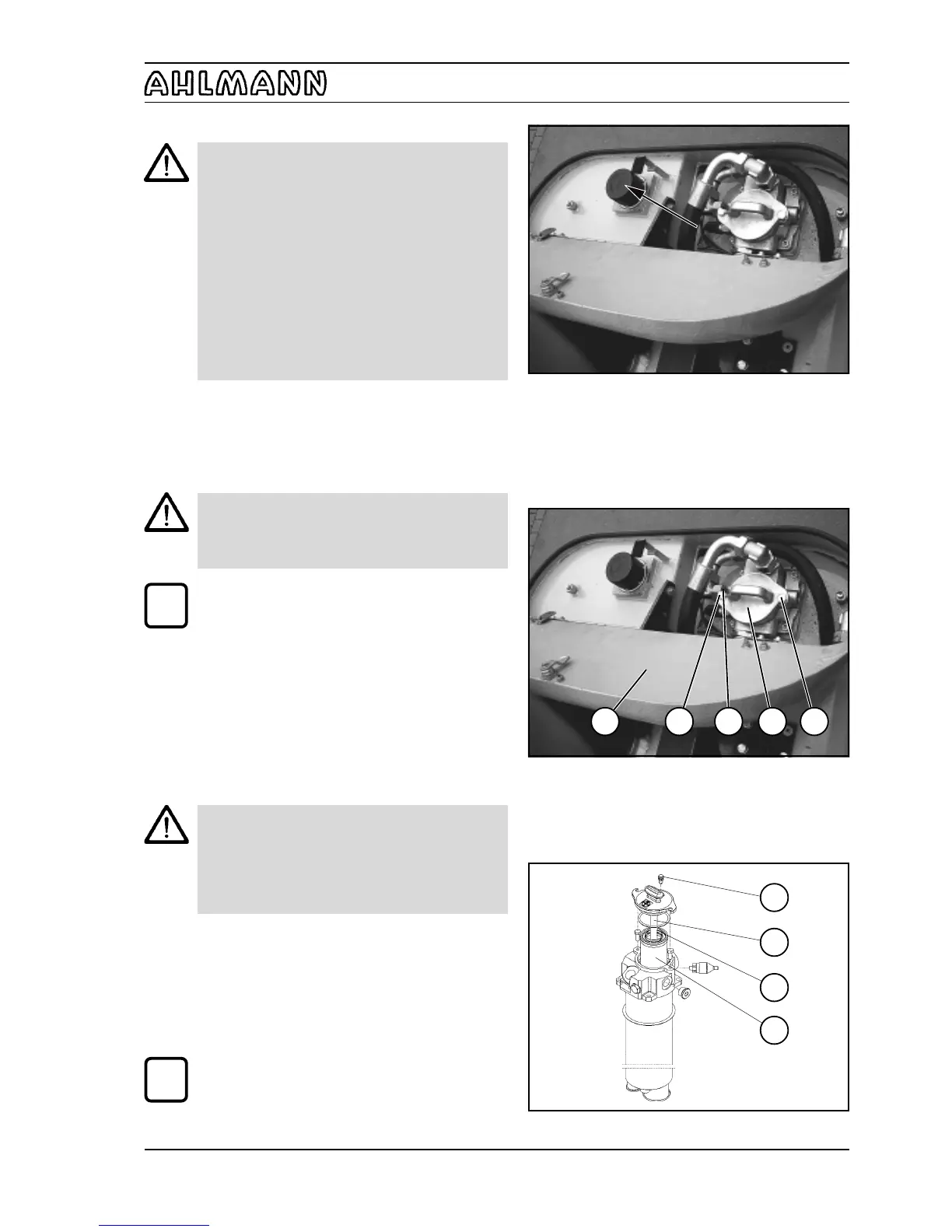

8.2.10 Replacing the suction / return flow
filter cartridge
CAUTION
Replace the filter insert according to the
maintenance plan or when the clogging indicator
lamp (4-6/15) lights up.
NOTE
The clogging indicator may light up prematurely
after a cold start. It will go out when the hydraulic
oil warms up.
(1) Open the maintenance flap of the hydraulic oil reser-
voir (8-15/1).
(2) Loosen but do not unscrew both screws of the hy-
draulic oil filter lid (8-15/2 or 8-16/1).
(3) Turn the hydraulic oil filter lid with the magnetic tube
(8-15/4 or 8-16/2) to the left and lift it out. Collect hydraulic
oil dripping off.
(4) Swing up the handle (8-16/3), slowly pull out the filter
cartridge (8-16/4) and replace it with a new one.
CAUTION
- Collect any hydraulic oil dripping off when you
pull out the filter cartridge.
- The used hydraulic oil filter cartridge must be
disposed of in such a way that it does not cause
pollution.
(5) Use a clean cloth to wipe the magnet tube (8-16/2)
before fitting it back in.
(6) Refit the hydraulic oil filter lid with the magnet tube and
fasten it again.
(7) Connect the ventilation hose to the ventilation valve
(8-15/3 or 8-16/1).
(8) Start the engine.
(9) Have an oil drain pan ready and open the ventilation valve.
NOTE
Keep the ventilation valve open until there are no
more bubbles in the escaping oil.
(10) Close the ventilation valve.
Figure 8-14
