ahlmann AS 210 - Planetary Gear; Front Axle; Oil Level Check (Distribution Gear)

S220/S221/S230/S231/Z200 8-5
Maintenance 8
2
1
4
1
2
3

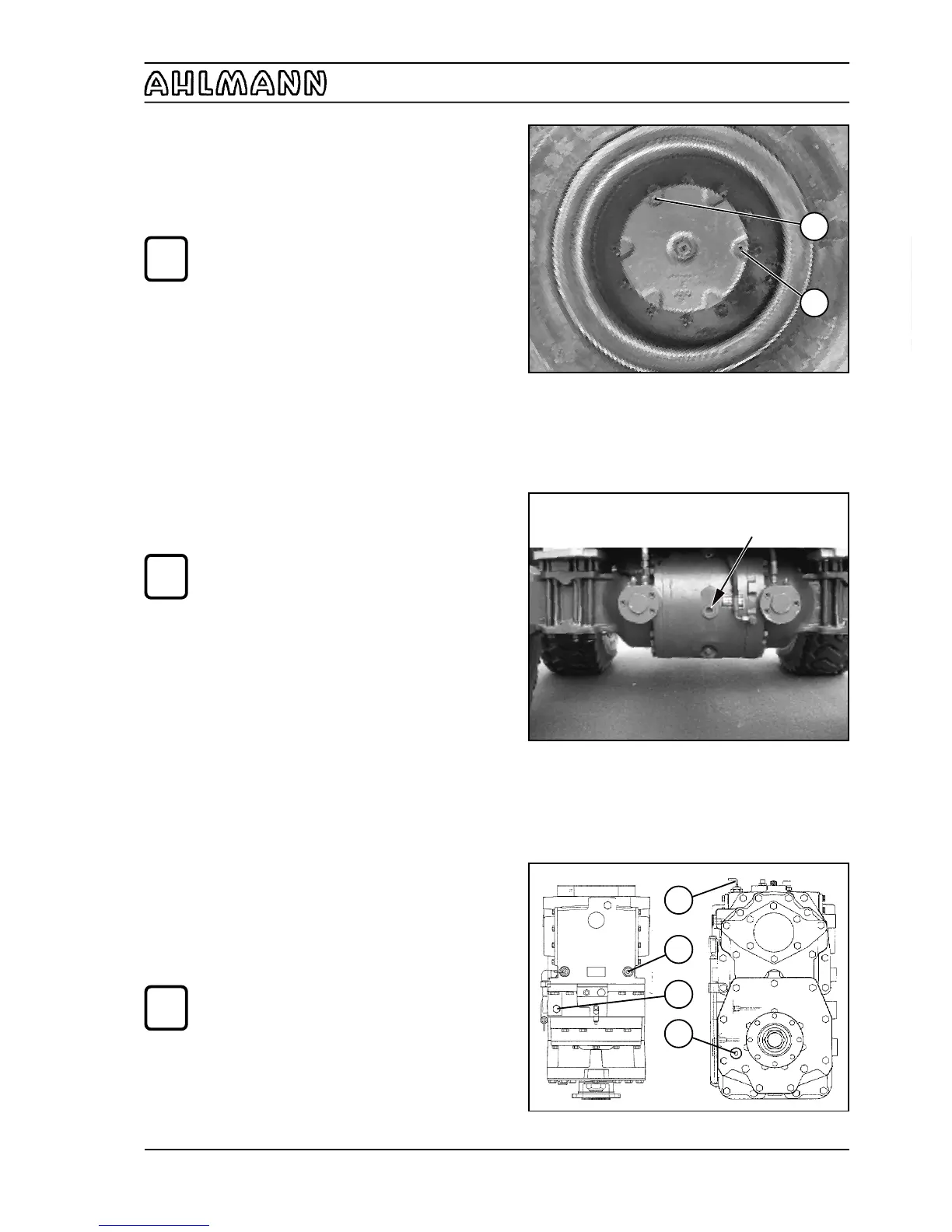

Figure 8-4
Figure 8-6
Figure 8-5
8.2.3.2 Planetary gear
(1) Move the loader so that the plug (8-4/2) is positioned
at 3 o’clock.
(2) Unscrew the plug.
NOTE
- Collect any oil that escapes.
- The oil level must reach the plug bore.
- If necessary, fill oil into the plug bore (8-4/1)
until the oil reaches the required level.
(3) Fit a new gasket and screw the plug back in.
8.2.3.3 Front axle
(1) Unscrew the plug from the axle arch (8-5/arrow).
NOTE
- Collect any oil that escapes.
- The oil level must reach the plug bore.
- If necessary, fill oil into the plug bore until the
oil reaches the required level.
(2) Fit a new gasket and screw the plug back in.
8.2.4 Oil level check (distribution gear)
(1) Remove the foot mat in the footwell of the operator’s
cabin.
(2) Dismantle the floor plate under the foot mat.
(3) Check the oil level using the check marking of the oil
dipstick (8-6/1) for the upper oil compartment (coupling
space).
(4) Unscrew the plug (8-6/4) from the lower oil compart-
ment (spur gear space).
NOTE
- Collect any oil that escapes.
- The oil level must reach the plug bore (8-6/4).
- If necessary, fill oil into oil filling screw 8-6/2
(upper oil compartment) or 8-6/3 (lower oil
compartment) until the oil reaches the required
level.
(5) Fit a new gasket and screw the plug back in.
Plan view View from front
