ahlmann AS 210 - Fork-Lift Attachment; Mounting and Dismounting Attachments with Hydraulic Connections to Loaders with Claw Locks (Optional Equipment); Multi-Purpose Bucket

S220/S221/S230/S231/Z2006-4
6 Attachments

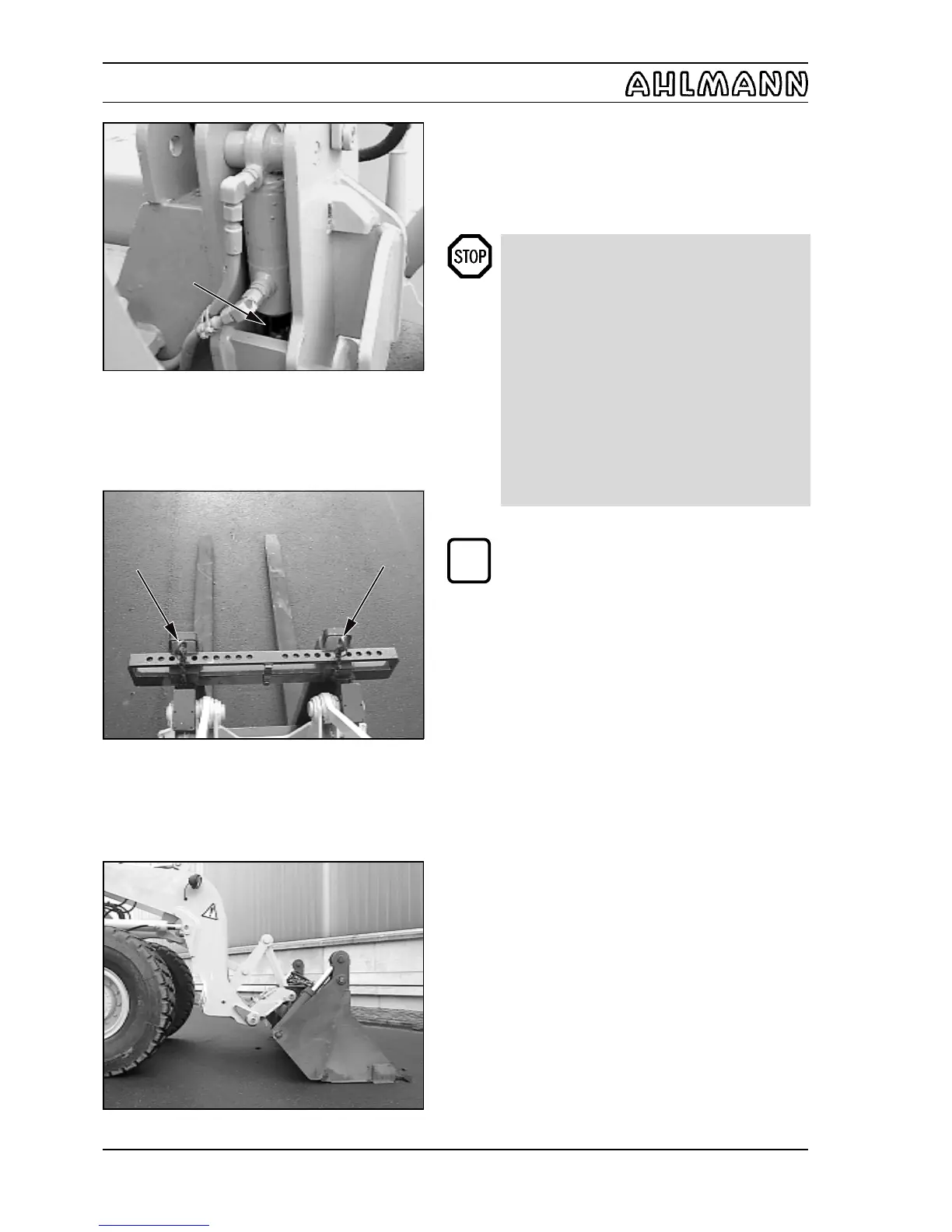

Figure 6-7
Figure 6-9
Figure 6-8
6.2.2 Fork-lift attachment
NOTE
Mounting and dismounting are carried out in the same way
as for the standard/lightweight bucket (section 6.2.1).
DANGER
- The fork-lift attachment is mounted and locked
correctly when it is located next to the quick-
change device and the piston rods of the
quick-change device cylinder can be plainly
seen (6-7/arrow).
- Position both fork tines at an equal distance
from the centre (6-8/arrows) and secure them
with socket pins.
- Distribute the load equally on both fork tines
and secure it against moving and falling off.
- Let the load rest against the rear of the fork
and tilt the fork-lift attachment.
NOTE
The type plate is on the rear of the upper fork
carrier.
6.3 Mounting and dismounting attach-
ments with hydraulic connections to loaders
with claw locks (optional equipment)
6.3.1 Multi-purpose bucket
Mounting
(1) Bring the bucket arm to its lowest position and tip the
quick-change device.
(2) Drive the loader up to the bucket (6-9).
(3) Press and hold the release button for the quick-
change device (4-7/1).
i
