ahlmann AS 210 - Adjusting the Drivers Seat; Isri Seat; Grammer Seat

S220/S221/S230/S231/Z200 5-9
Operation 5
1
2
3
4
1
2

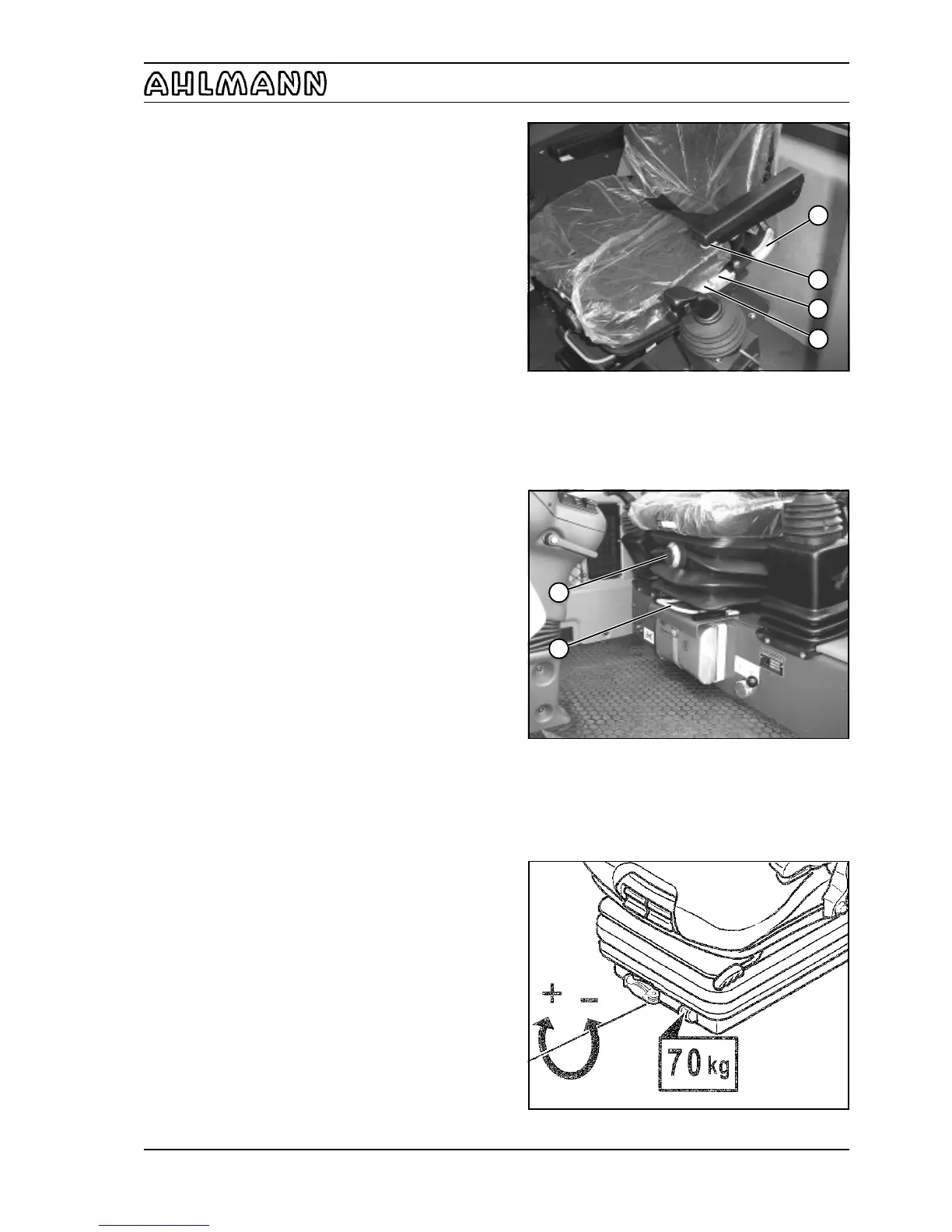

5.4 Adjusting the driver’s seat
5.4.1 Isri seat
(1) Adjust or swing forward the backrest using the hand
lever (5-9/1).
(2) Adjust the seat height and rear inclination by pulling
the hand lever (5-9/3) upwards.
(3) Adjust the seat height and front inclination by pulling
the hand lever (5-9/4) upwards.
(4) The seat suspension can be adjusted to the driver’s
weight (40 - 130 kg) with the handwheel (5-10/1).
(5) Adjust the height of the arm rest by turning the knob
(5-9/2).
(6) Readjust the position of the pilot valve for the working
and auxiliary hydraulics (4-9/4) if necessary.
(7) The operator’s seat can be adjusted in the horizontal
direction to suit the driver’s requirements by pulling the
handle (5-10/2) upwards and moving the seat forward or
backward.
5.4.2 Grammer seat
(1) Weight adjustment:
Adjust the seat to the driver’s weight by actuating the weight
adjustment lever. The set driver’s weight is visible in the
ispection window (5-11).
Figure 5-9
Figure 5-11
Figure 5-10
